F9 Fetal & maternal Monitor Service Manual Connecting to Philips OB TraceVue System
- 65 -
Appendix 2 Connecting to Philips OB TraceVue System
Preparation
Prior to connecting F9 to the OB TraceVue obstetrical documentation and surveillance system of
Philips, make sure that
1)
Net Version of F9 on the Network Setup interface has this option: PHILIPS.
2) The OB TraceVue system of Philips has a network interface (DB9 or RJ45) available.
3) You have the proper connecting cable:
If a DB9 interface is available, you need a Serial Port Cable (MS1R-107702):

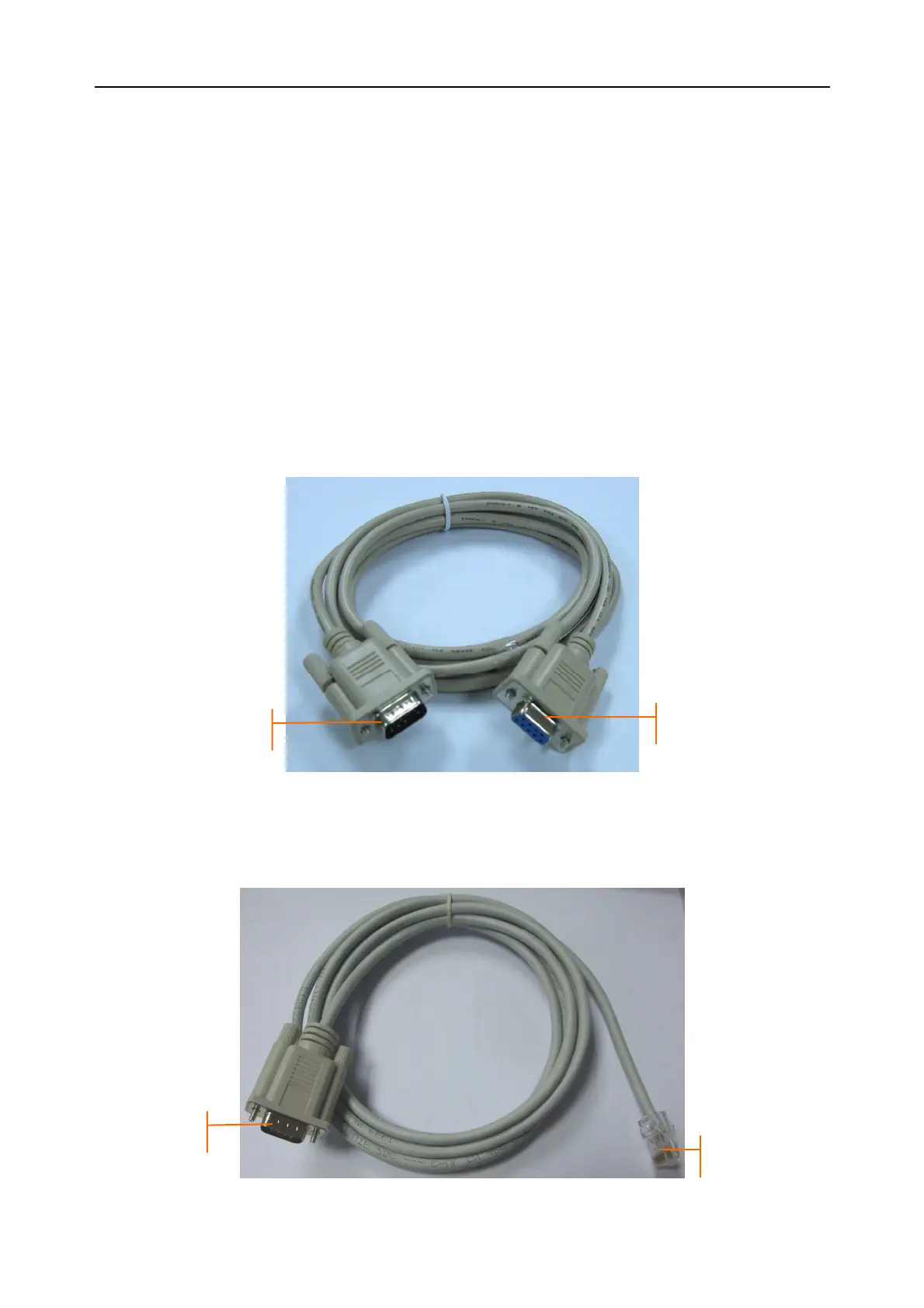

Figure A2-1 Serial Port Cable
If an RJ45 interface is available, you need a Serial Port to RJ45 Cable (MS1R-107974 or
M13R-036124). The part numbers are shown on the labels attached to the cables.
Figure A2-2 Serial Port to RJ45 Cable
Convex Plug
Concave Plug
Convex Plug
RJ45 Plug
To Next Page
