F9 Fetal & maternal Monitor Service Manual Connecting to Philips OB TraceVue System
- 66 -
Check other bedside monitors in the OB TraceVue system to see if protocol converters (as
shown in the following illustrations) are used.

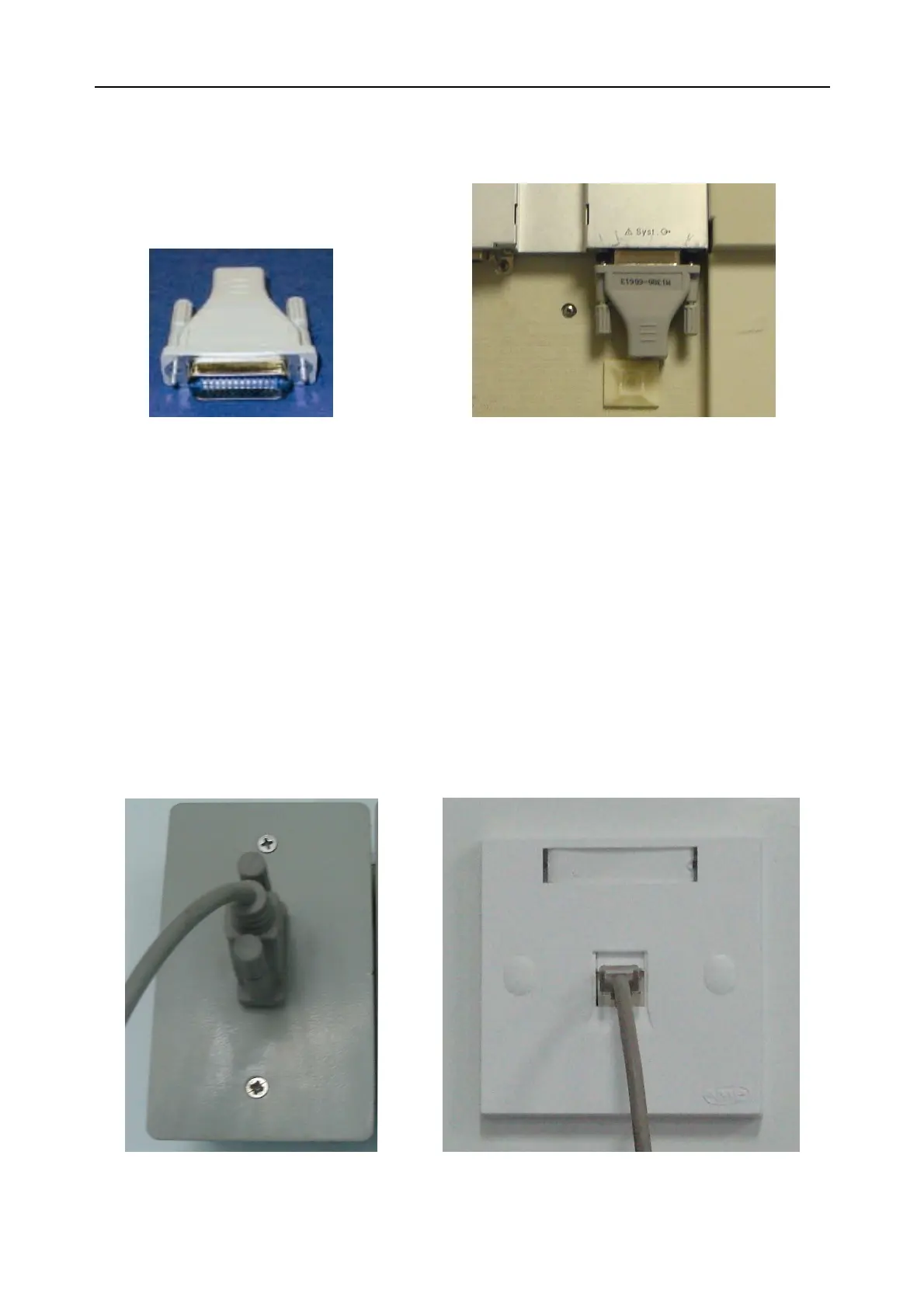

Figure A2-3 Protocol Converter Figure A2-4 A Protocol Converter Used on a Monitor
If protocol converters are used on other bedside monitors, connect the monitor with the Serial
Port to RJ45 Cable #2 (M13R-036124). Otherwise use the cable #1 (MS1R-107702).
Connection
Put the convex plug of the Serial Port Cable into the DB9 interface of F9; put the concave plug of
the Serial Port Cable into the free DB9 interface of the OB TraceVue system.
OR
Put the convex plug of the Serial Port to RJ45 Cable into the DB9 interface of F9; put the RJ45
plug of the Serial Port to RJ45 Cable into the free RJ45 interface of the OB TraceVue system.
Figure A2-5 Connecting DB9 and RJ45 interfaces of the OB TraceVue system
