EDAN F9 Service Manual

F9 Fetal & maternal Monitor Service Manual Disassembling the Monitor
- 52 -
7)

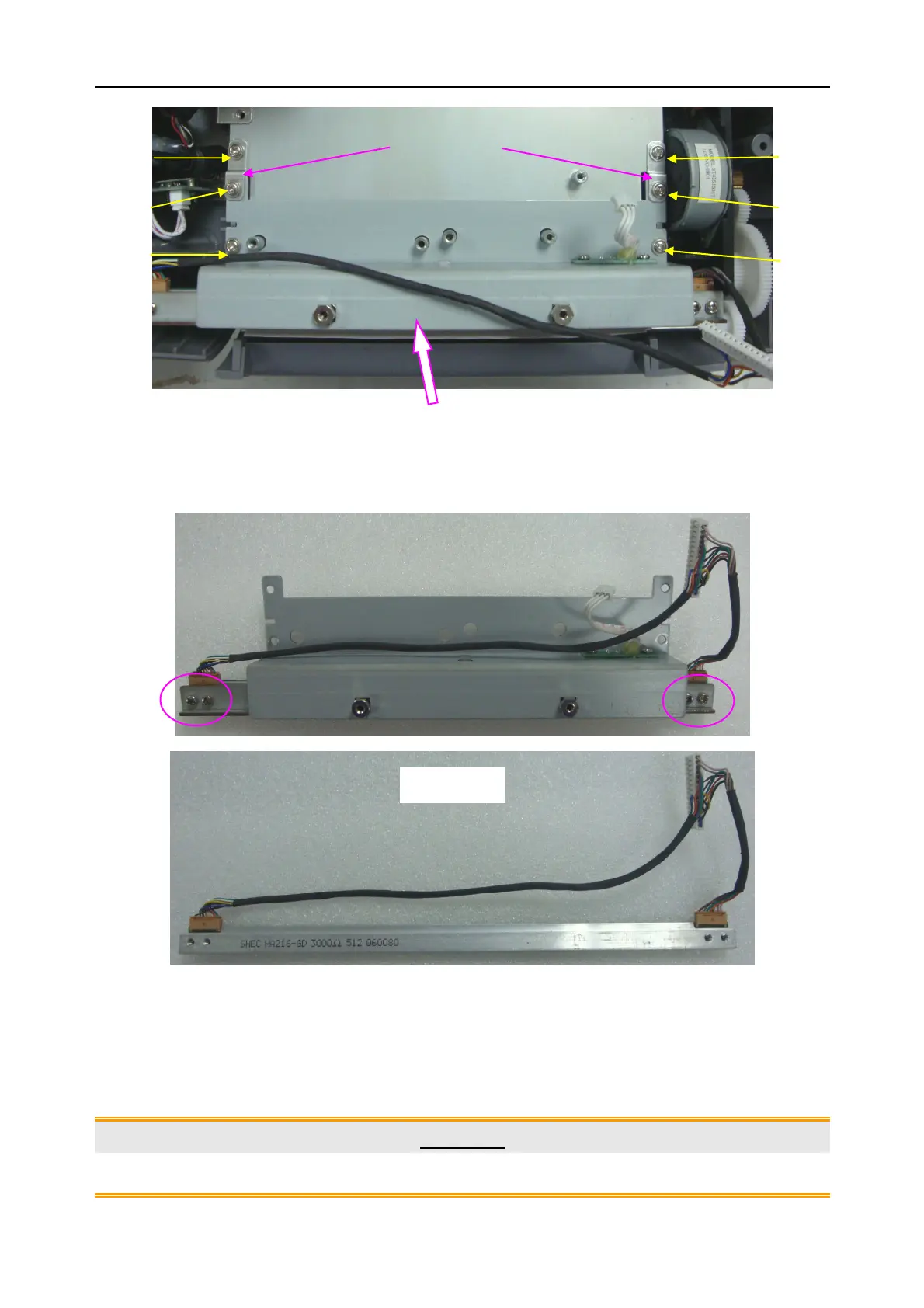

Take the printhead connecting board out from the monitor and then remove the four screws
that fix the printhead.
To replace the printhead,
Replace the printhead in a reverse procedure. The connector of the paper sensor cable is supposed
to be connected to J2 socket of the print control board. The connector of the printhead signal
cable is supposed to be connected to J5 socket of the print control board.
CAUTION
The thermal printhead is a fragile part. Handle it with care.
Printhead connecting board
Metal retainers
○
1
○
3
○
5
○
2
○
4
○
6
Printhead
