F9
Fetal
&
maternal
Monitor
Service
Manual
Principle
Introduction
- 32 -

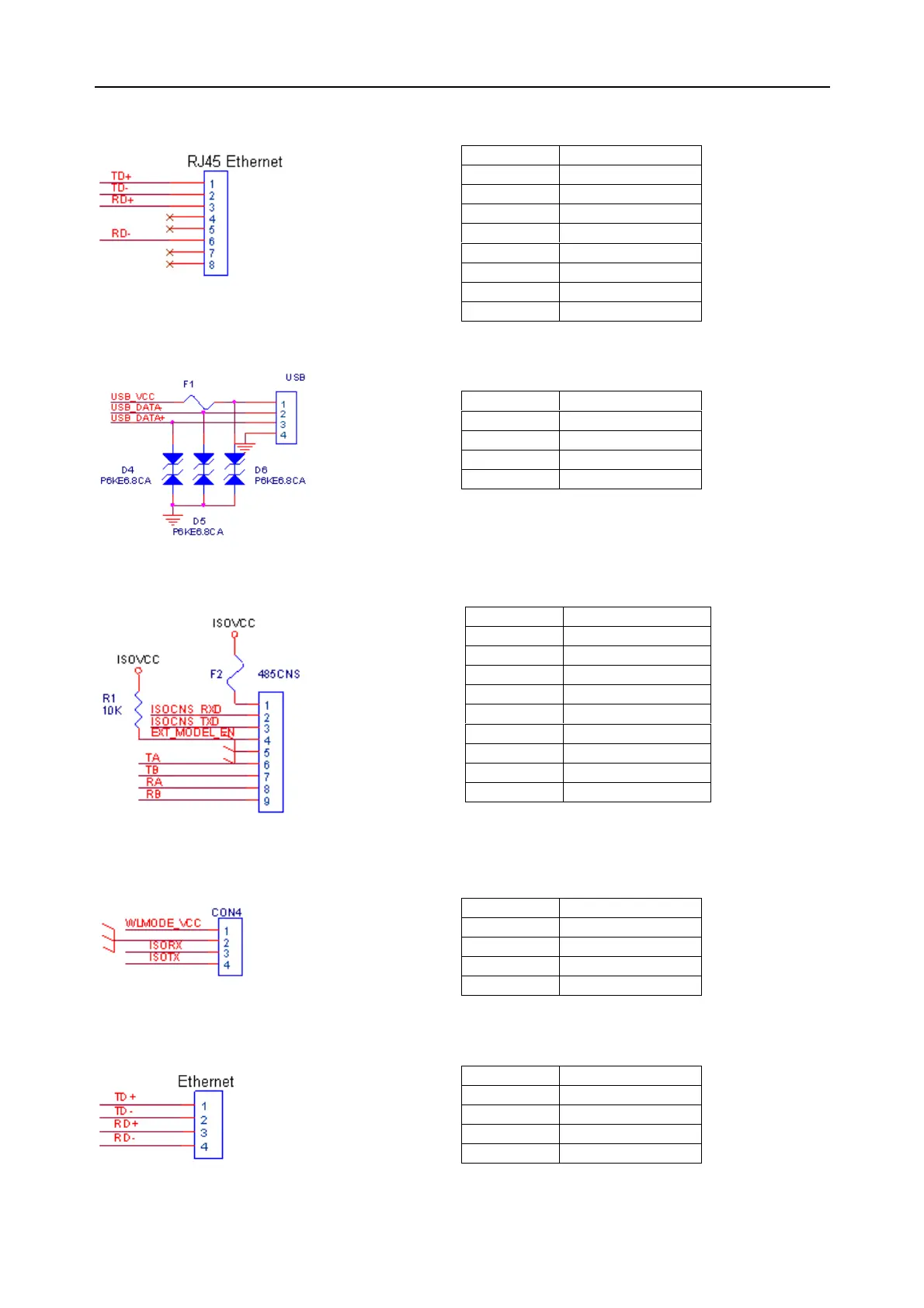

(7) RJ45 Ethernet interface
(8) USB interface
(9) 485 network interface
(10) Interface connects to
built-in wir
eless module
(1
1) Ethernet interface
Pin No.
Symbol
1 TD+
2 TD-
3 RD+
4 Reserved
5 Reserved
6 RD-
7 Reserved
8 Reserved
Pin No.
Symbol
1 USB_VCC
2 USB_DATA-
3 USB_DATA+
4 GND
Pin No.
Symbol
1 ISOVCC
2 ISOCNS_RXD
3 ISOCNS_TXD
4 EXT_MODEL_EN
5 GND
6 TA
7 TB
8 RA
9 RB
Pin No.
Symbol
1 WLMODE_VCC
2 GND
3 ISORX
4 ISOTX
Pin No.
Symbol
1 TD+
2 TD-
3 RD+
4 RD-
37
39
Table of Contents
Default Chapter
4
Table of Contents
4
Chapter 1 Warranty and Service
7
Chapter 2 Overview
10
Introduction
10
General Information
10
Safety Precautions
11
Chapter 3 Installation
13
Environment Requirements
13
Electrical Requirements
14
Safety Requirements
14
Installing the Monitor
14
Installing the Monitor on a Flat Surface
14
Mounting the Monitor on a Wall
15
Installing the Monitor on a Roll Stand/Trolley
16
Connecting to AC Power
17
Chapter 4 Functional Checks
18
Switching on Check
18
LCD Screen Check
18
Keys Check
18
Touch Screen Check
18
Printing Check
19
Alarms Check
19
Chapter 5 System Configuration
20
Opening System Setup Menu
20
Entering Demo Mode
20
Reloading Default Settings
20
Clearing Data
21
Checking Product Information
21
Calibrating Touch Screen
21
Changing the Device no
22
Changing Net Version
22
Configuring Wireless Network
23
Configuring for Ethernet Connecting
24
Changing Trace Width
24
Changing Paper Style
24
Changing the Language
25
Changing FHR Algorithm
25
Chapter 6 Maintenance
26
Maintenance Inspections
26
Maintenance of the Monitor
26
Maintenance of the Transducers
27
Maintenance of the Recorder
27
Chapter 7 Principle Introduction
28
Modules Principle
28
Ultrasound Doppler
28
Fetal Movement Doppler Signal Detecting Principle
28
Pressure Detecting Principle
28
DECG Module Principle
29
The System Principle Block Diagram
29
Main Control Board
30
Fetal Monitor Module
31
DECG Module
32
Print Controlling Board
32
Power Module
34
Key Board
35
Bottom Interfaces Board
36
Lvds Lcd
39
Interfaces
40
DB9 Interface
40
RJ45 Interface
40
Antenna
40
Chapter 8 Troubleshooting
41
Monitor Booting Failures
41
Display Failures
42
Touch Screen Failures
42
Operation Failures
43
Recorder Failures
43
Network Failures
44
Alarms Failures
44
Technique Alarms
44
FHR/TOCO Monitoring Failures
45
DECG/IUP Monitoring Failures
45
Chapter 9 Modules' Malfunction Verification
46
Verifying Malfunction of the Main Control Board
46
Verifying Malfunction of the FM Module
48
Verifying Malfunction of the DECG Module
50
Verifying Malfunction of the Power Module
51
Chapter 10 Disassembling the Monitor
52
Tools Required
52
Replacing Fuses
52
Disassembling the Main Unit
53
Disassembling the Lower Assembly
54
Replacing the FM Module
54
Replacing the DECG Module
55
Replacing the Print Controlling Board
56
Replacing the Printhead
57
Replacing the Gear Assembly
59
Replacing the Speaker
59
Replacing the Power Module
60
Replacing the Fan
60
Replacing the Power Interface Board
61
Replacing the Bottom Interface Board
62
Disassembling the Upper Assembly
62
Replacing the Main Control Board
62
Replacing the Touch Screen Controlling Board
63
Replacing the Key Board
64
Replacing the Power Inverter Board
64
Replacing the LCD
65
Chapter 11 Periodic Tests
68
Safety Tests
68
Performance Tests
68
FHR Performance Test
68
TOCO Performance Test
69
Appendix 1 Renewal Parts
70
Appendix 2 Connecting to Philips ob Tracevue System
71
