Vital Signs Monitor Service Manual Disassembling the Monitor
- 37 -

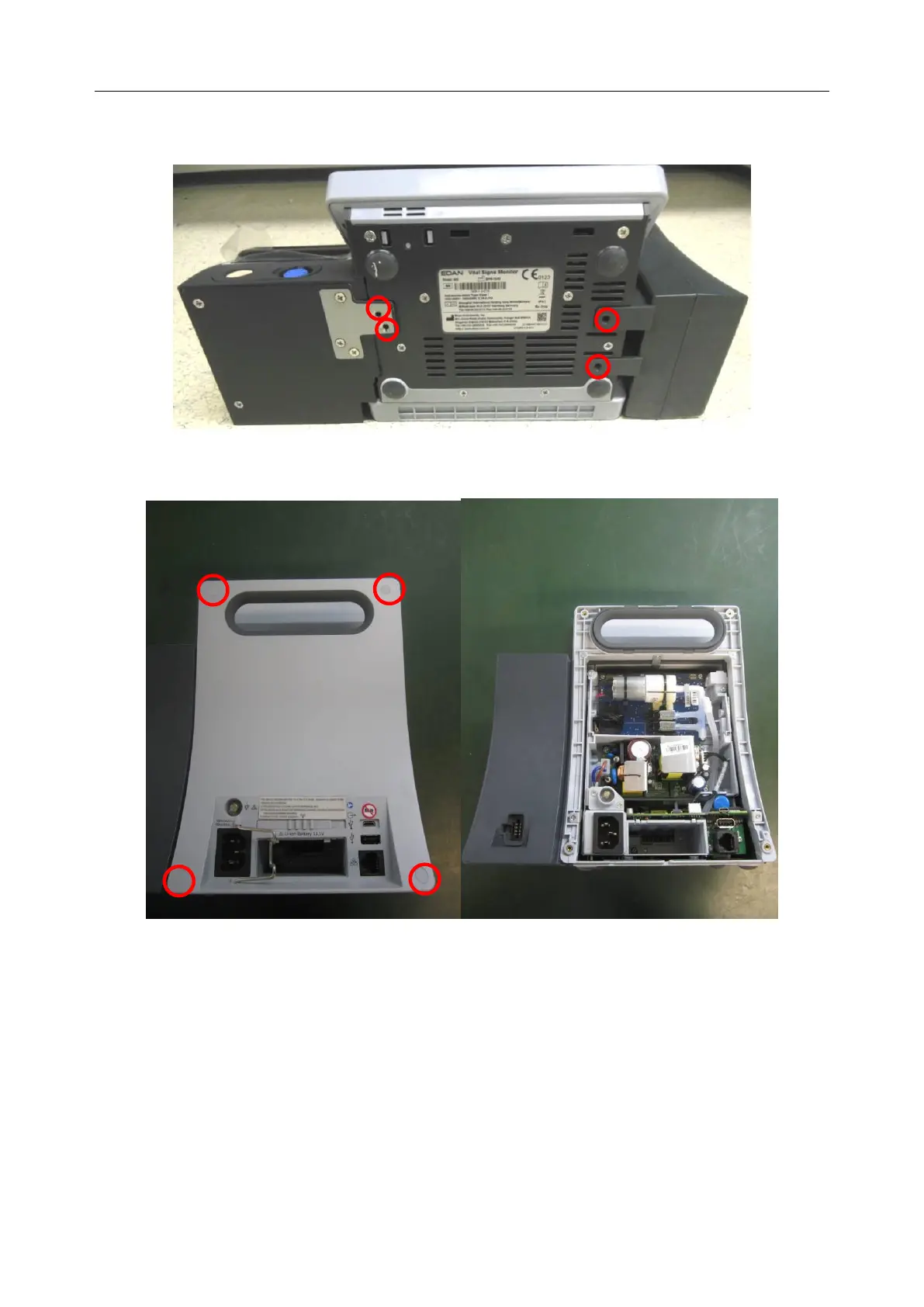

To disassemble the main unit:
1 Disassemble the external plug-in assembly from the main unit with a cross-head screwdriver.
2 Take out the rubber plug with knife, and unscrew the screws securing the rear housing to
unfold the rear housing with a cross-head screwdriver.
3 Unscrew the screws securing the front housing to unfold front housing. Pull out the wires
linking the main board and parameter board to separate the front housing and rear housing.
(When you start to separate the front and rear housing, use your body against the front
housing and then separate them with your hands.)
