EDAN iM3 - Replacing the Wi-Fi Interface Board; Replacing the Alarm Indicator Board

Vital Signs Monitor Service Manual Disassembling the Monitor
- 44 -

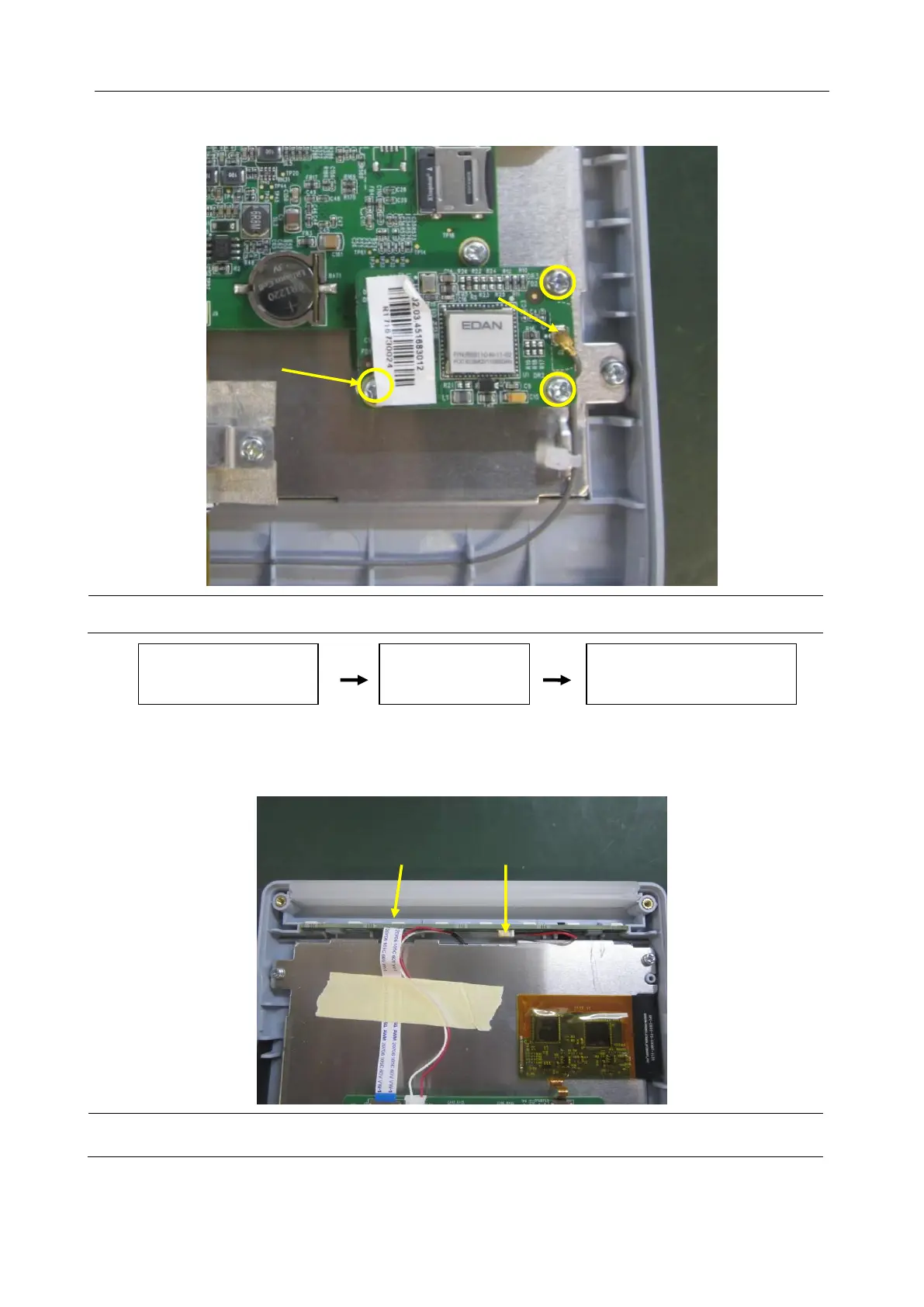

8.3.4 Replacing the Wi-Fi Interface Board
○
1
Screws
○
2
Wi-Fi antenna
Assemble the Wi-Fi interface board in the reversed order. Connect the wires and fix the main unit.
8.3.5 Replacing the Alarm Indicator Board
○
1
iM3 alarm indicator FCC
linking wire
○
2
iM3 LOGO light board linking
wire
Separate the front and
back assembly
Remove the screws securing
the Wi-Fi interface board.
Remove the Wi-Fi
antenna.
○
1
○
2
○
1
○
2
