Vital Signs Monitor Service Manual Disassembling the Monitor
- 46 -
1
Screws
3
iM3 Wires linking parameter
board and AC&DC module
2
iM3 AC cable
Assemble the power module in the reversed order. Connect the wires and fix the main unit.

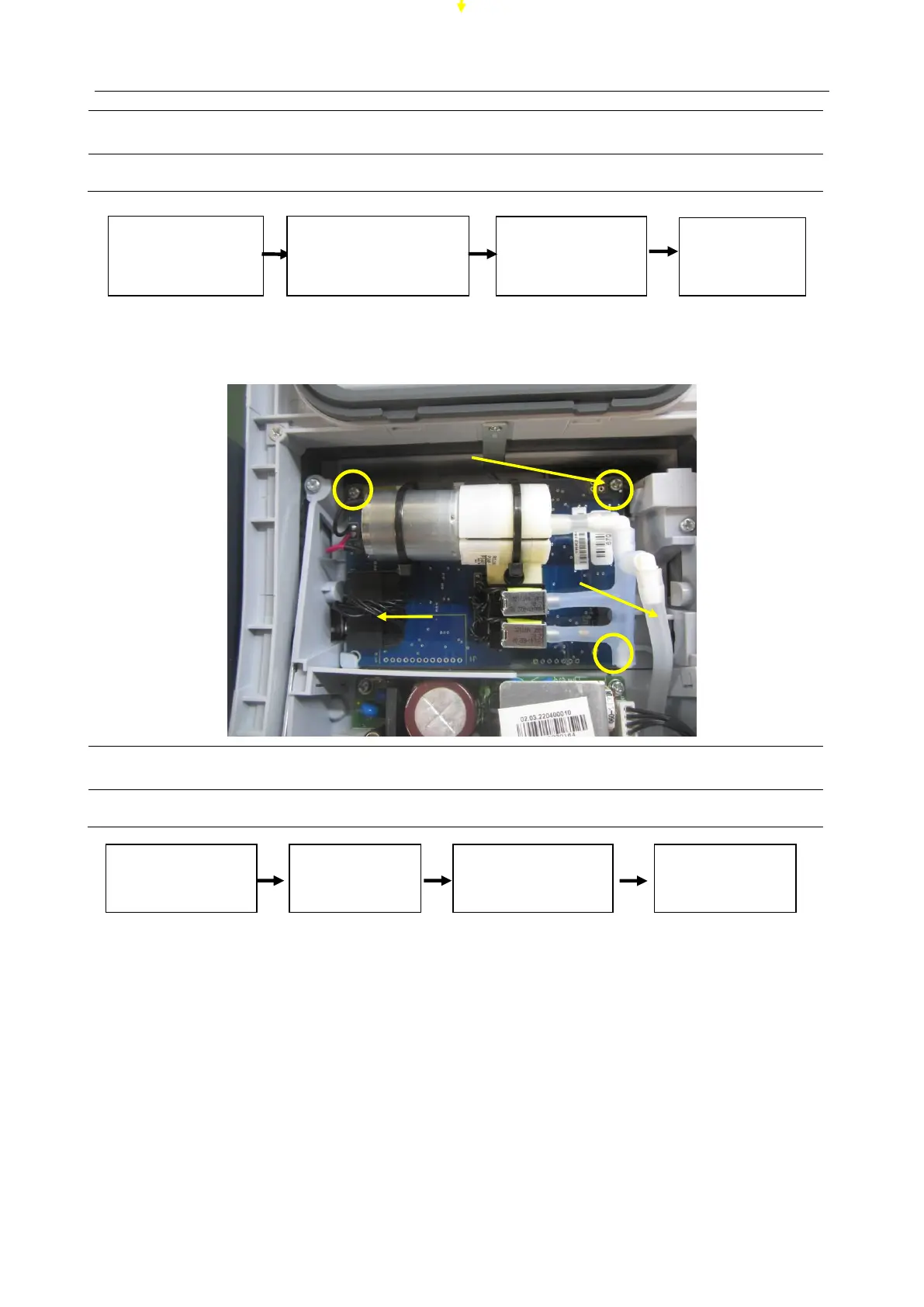

8.4.2 Replacing SunTech Module
1
Screws
3
iM3 Wires linking parameter
board and SunTech module
2
Air tube
Assemble SunTech module in the reversed order. Connect the wires and air tube, and then fix the
main unit.
Separate the front
and back assembly
Unscrew the screws
securing SunTech
module
Remove module
wires and air
tube
Replace SunTech
module
Separate the front
and back assembly.
Unscrew the
screws securing
power module
Disconnect power
module linking wire
Replace power
module.
1
2
3
