Vital Signs Monitor Service Manual Disassembling the Monitor
- 41 -

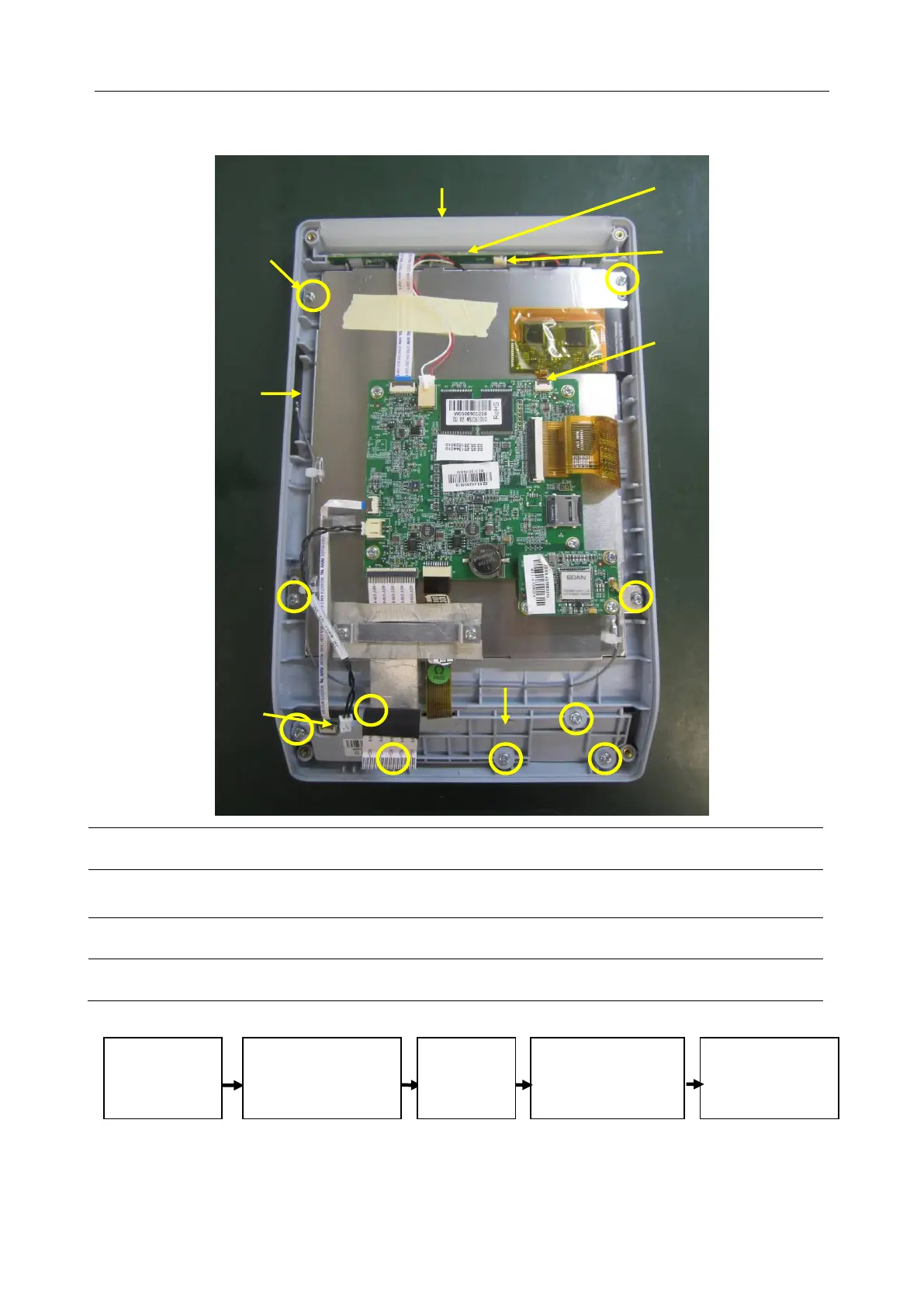

8.3.1 Replacing the Touch Screen or Protective Screen
1
Screws
5
Touch screen linking wire
2
Wi-Fi antenna
6
iM3 LOGO light board linking
wire
3
iM3 rotary knob board
7
iM3 alarm indicator board
4
iM3 silicone keypad board
8
iM3 alarm indicator-shade
Assemble the touch screen or protective screen in the reversed order. Connect the wires and fix
the main unit.
Remove the
touch screen or
protective screen
Remove the LCD
supporting bracket
assembly and LCD
Unscrew the screws
securing the LCD
supporting bracket
and key board
Disconnect
wires
Separate the
front and back
assembly
1
2
3
4
5
6
7
8
