EDAN iM3 Service Manual

Vital Signs Monitor Service Manual Disassembling the Monitor
- 59 -

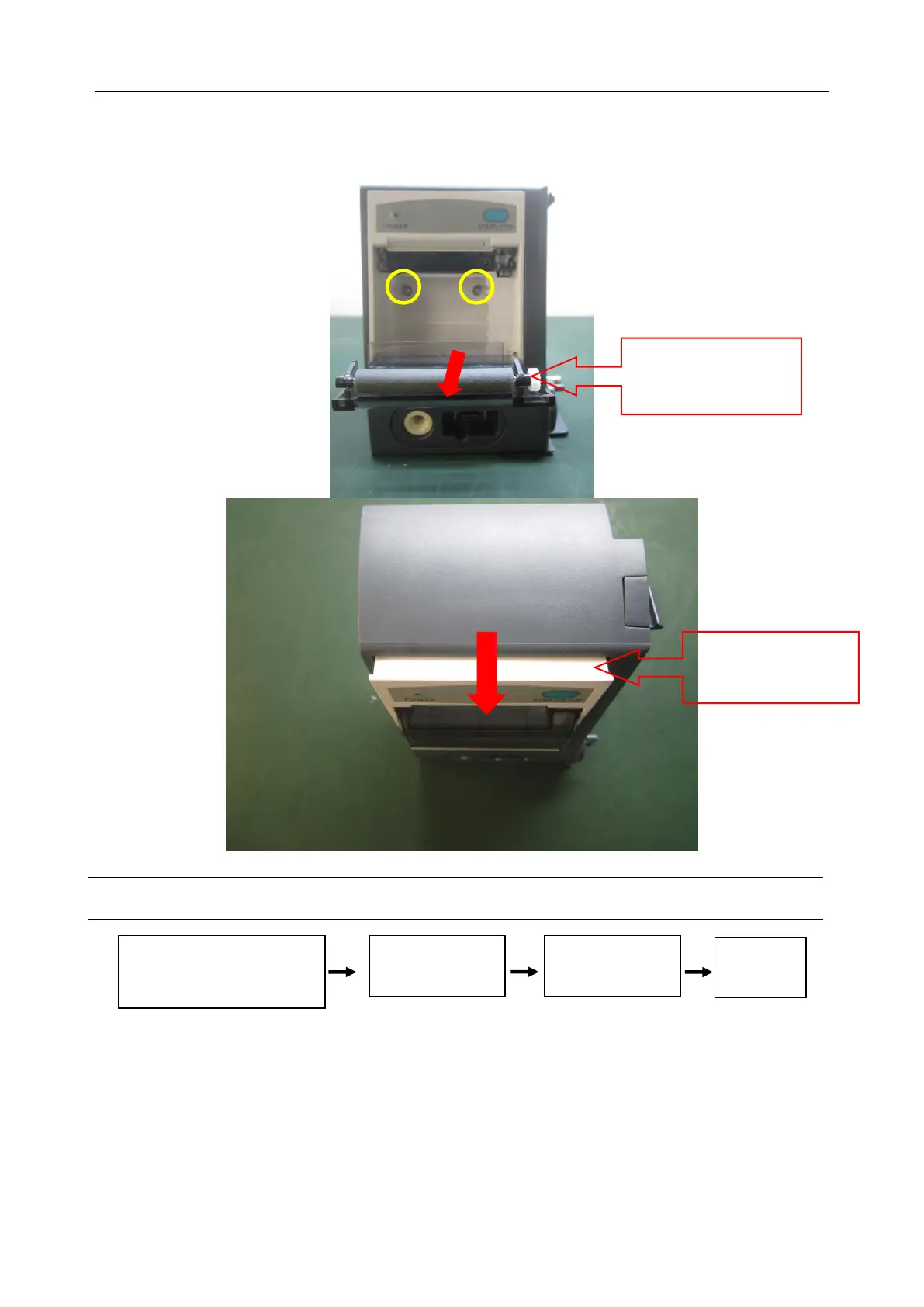

8.6.4 Replacing the Recorder
○
1
Screws
Installing the recorder：
Install the recorder in the reverse order and fix the external plug-in assembly.
To get the external
plug-in assembly as step
1 in section 7.1
Remove wires
Replace
recorder
Remove the
screws
Pull outward softy, and
take out the recorder
from bottom to top
Take the recorder out
