EDAN iM3 - Front Housing Assembly Disassembly

Vital Signs Monitor Service Manual Disassembling the Monitor
- 40 -
8.3 Disassembling the Front Housing Assembly

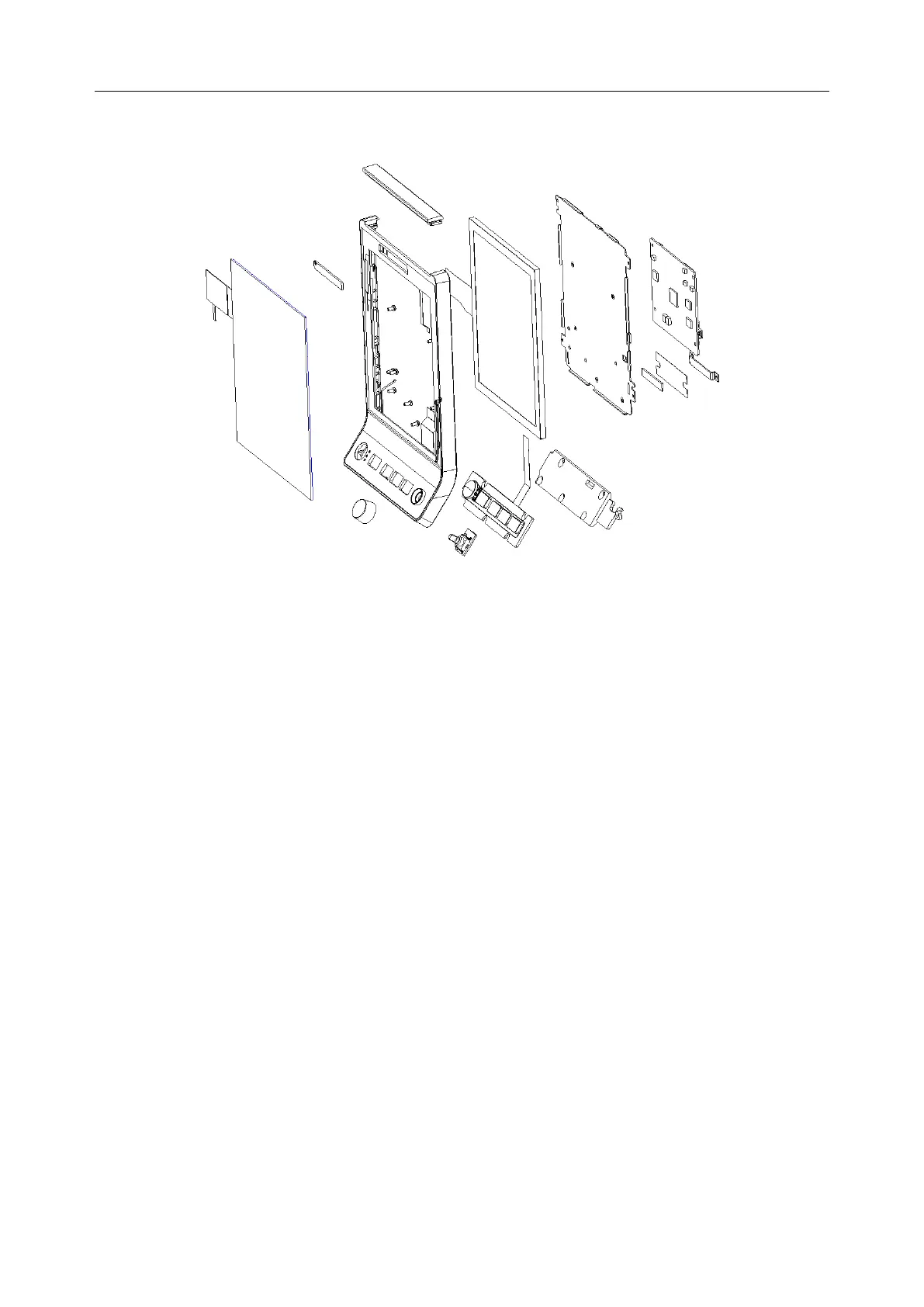

iM3 Front Housing Structure Block Diagram
Touch screen or
protective screen
LCD
Front housing
Key board
Main control board
