Vital Signs Monitor Service Manual Disassembling the Monitor

- 52 -

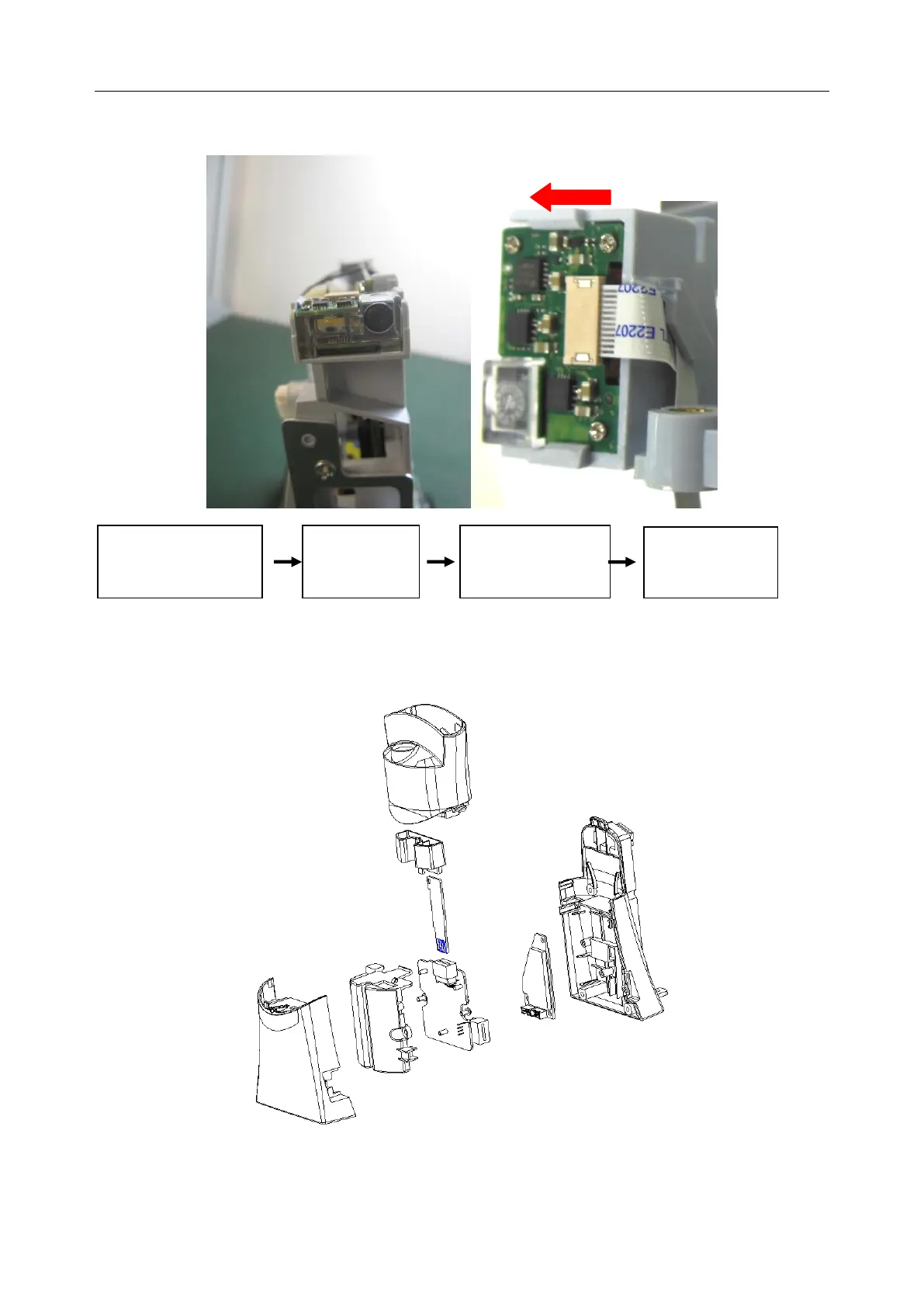

8.5.7 Replacing QR Code Scanning Module

Assemble QR code scanning module in the reversed order and fix main unit.

8.6 Disassembling the Plug-in Module

iM3 Quick TEMP Assembly

Separate the front &

back assembly and

middle frame

Push the QR

code scanning

module outward

Replace QR

code scanning

module

Remove

linking wire
