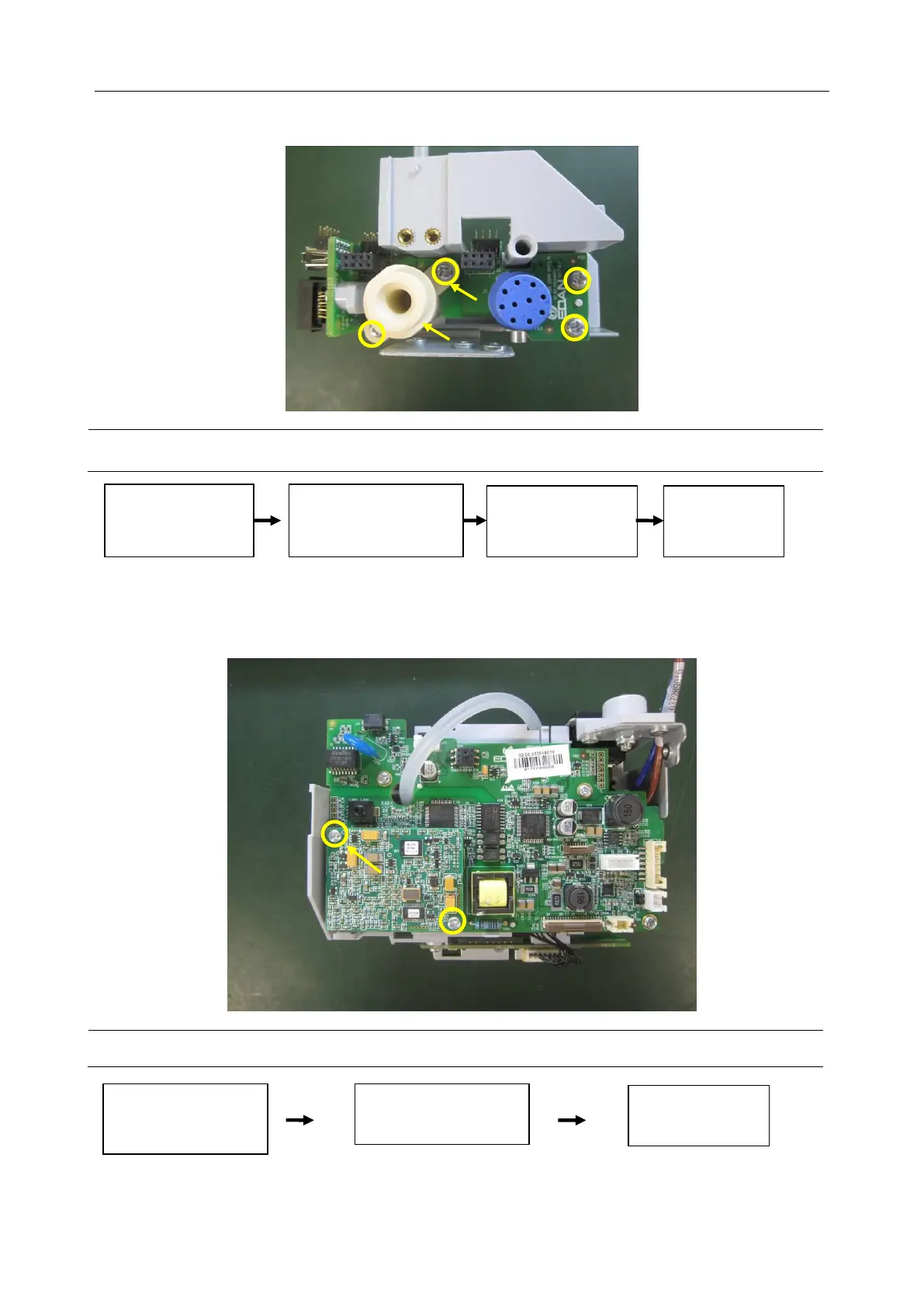

8.5.5 Replacing Sensor Board of Main Unit
○
1
Screws
○
2
iM3 air tap assembly
Assemble sensor board in the reversed order. Install air tap assembly and fix main unit.
8.5.6 Replacing Nellcor Module
○
1
Screws
Assemble Nellcor module in the reversed order. Install air tap assembly and fix main unit.
Disassemble the
monitor to get the
bottom base
Remove the screws
Replace
Nellcor module
Disassemble the
monitor to get the
bottom base
Remove the air
tap assembly
Remove the screws
Replace
sensor board
○
1
○
2
○
1
