EDAN iM3 Service Manual

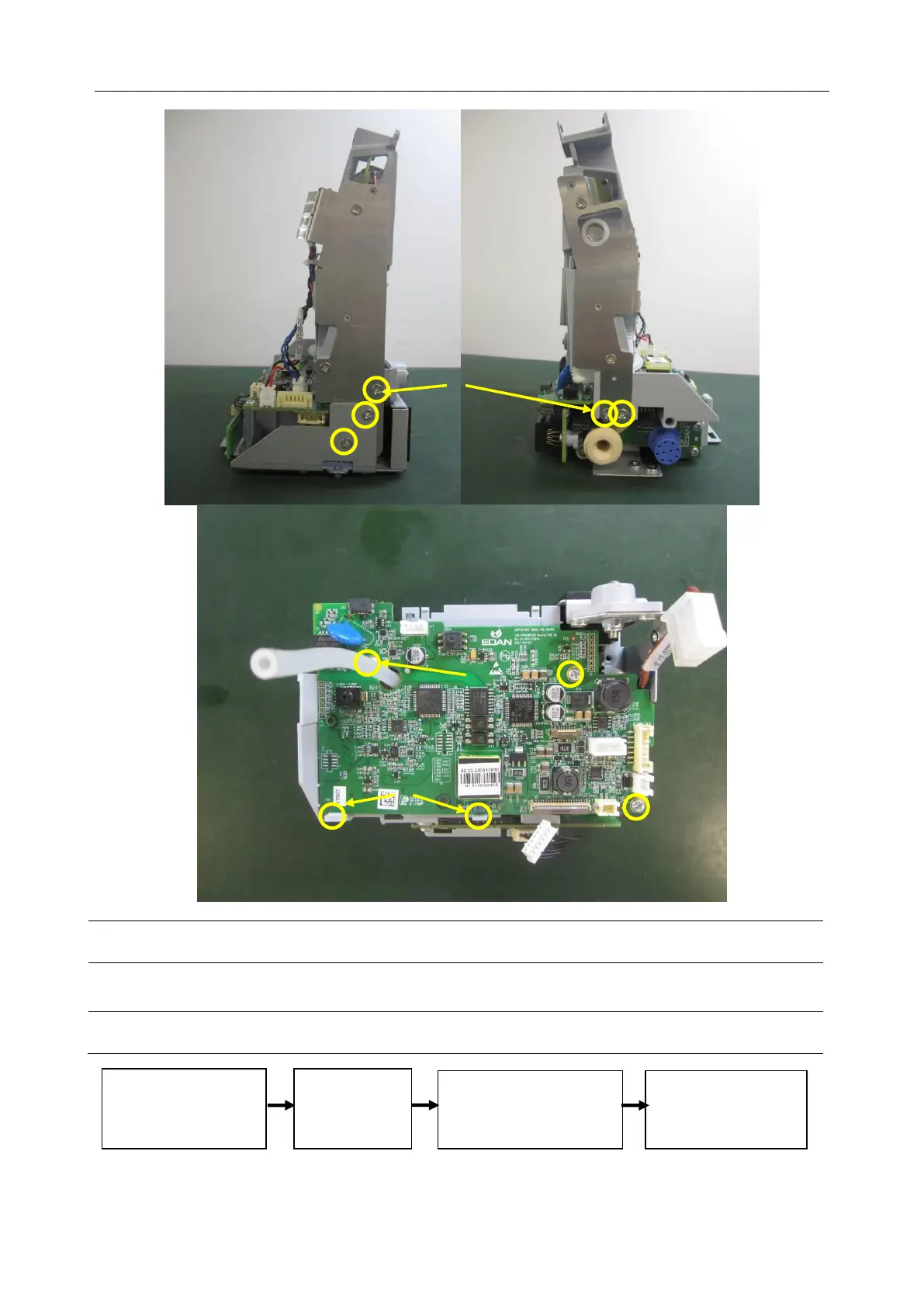

Vital Signs Monitor Service Manual Disassembling the Monitor
- 50 -
○
1
iM3 AC cable
○
4
Pump/valve linking wire
○
2
iM3 wire linking parameter
board and AC&DC module
○
5
Screws
○
3
Air tube
○
6
Snap fastener
Assemble parameter board in the reversed order. Connect the wires, air tube and fix main unit.
Separate the front &
back assembly and
middle frame
Remove the screws
and remove the snap
fastener outward
Remove air
tube and
linking wire
Replace parameter
board
○
5
○
5
○
6
