EDAN iM3 - Page 64

Vital Signs Monitor Service Manual Disassembling the Monitor
- 58 -
○
1
Screws
○
2
Wire linking iM3 parameter board
and TEMP module
Assemble the Isolation Board of M3 Infrared Ear TEMP in the reversed order, and fix the module
components.
Disassemble the
monitor to get the
plug-in components
Remove screws and
wires
Replace
module

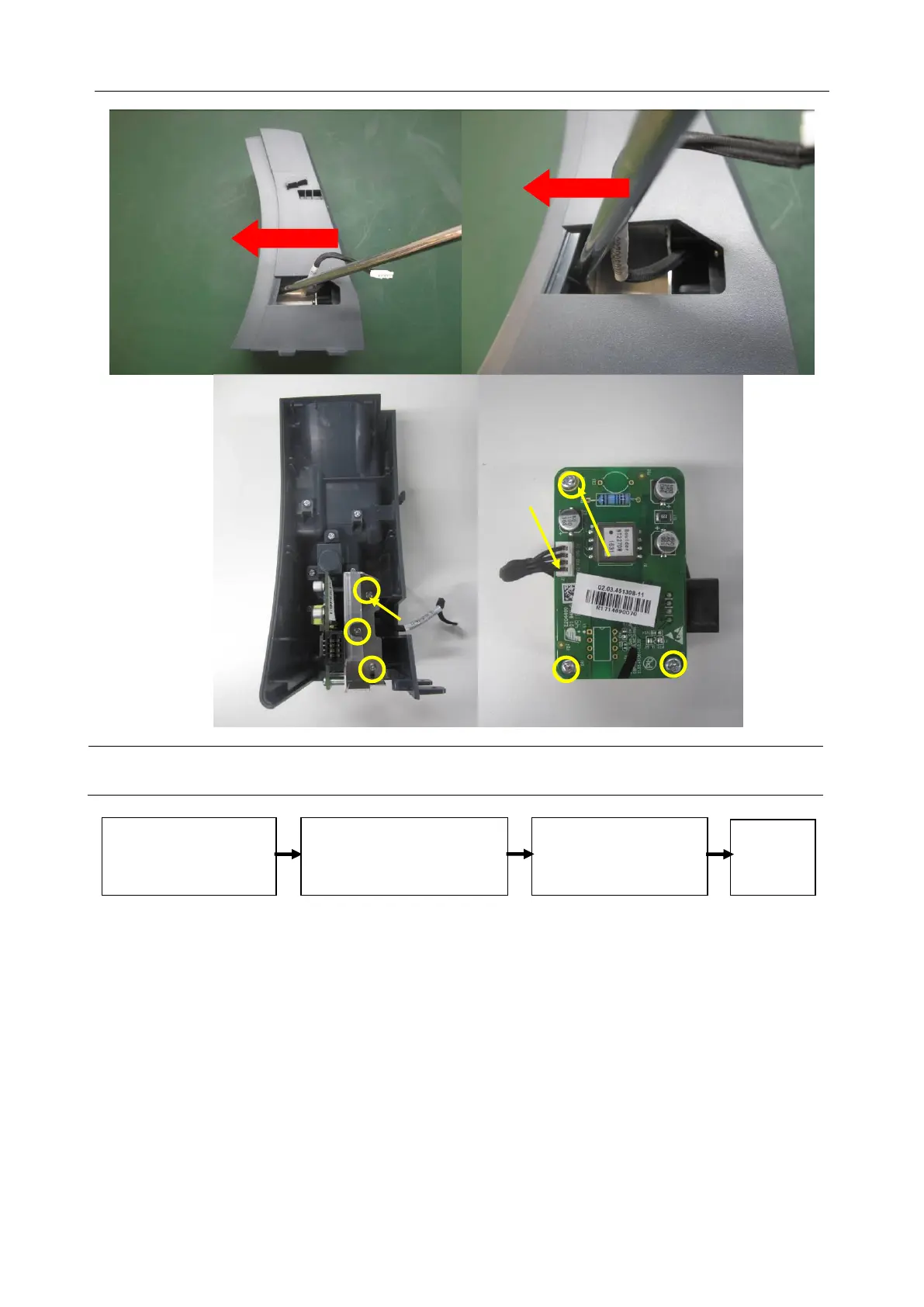

Remove the screws and
prize up rear cover
leftward with a screwdriver
○
1
○
1
○
2
