INSTALLING HARDWARE 16
• Ethernet crossover cable (lower RJ-45)
5 (Optional) If the E-42B requires a static IP address (for example, in a non-DHCP network
environment), work with the network administrator to configure it (
see page 22).
6 Complete the installation (
see page 23).
Remind site administrator to install current user software on networked computers that print
to the E-42B (see Printing and Utilities, which are part of the user documentation set).
Checking the customer site
Before you install the E-42B, check site conditions and inform the customer of any
installation requirements.
Copier/Printer readiness
• Is the copier/printer configured for use with the E-42B? (For the proper settings, see the
documentation that accompanies the copier/printer.)
• Is space available near the copier/printer for the E-42B and the furniture?
Make sure that adequate space is available for the E-42B and the furniture. Allow enough
space at the connector panel for the cables to route easily and at the side panel so that the
E-42B does not interfere with use of or service to the copier/printer (such as clearing a paper
jam). You may need to move the copier/printer away from the wall so that the interface
connectors are accessible.
• Does the copier/printer require service or adjustments?
Print the copier/printer Test Page before you install the E-42B.
If the image indicates that the copier/printer needs adjustment, inform the customer.
After getting approval, complete the necessary copier/printer service.

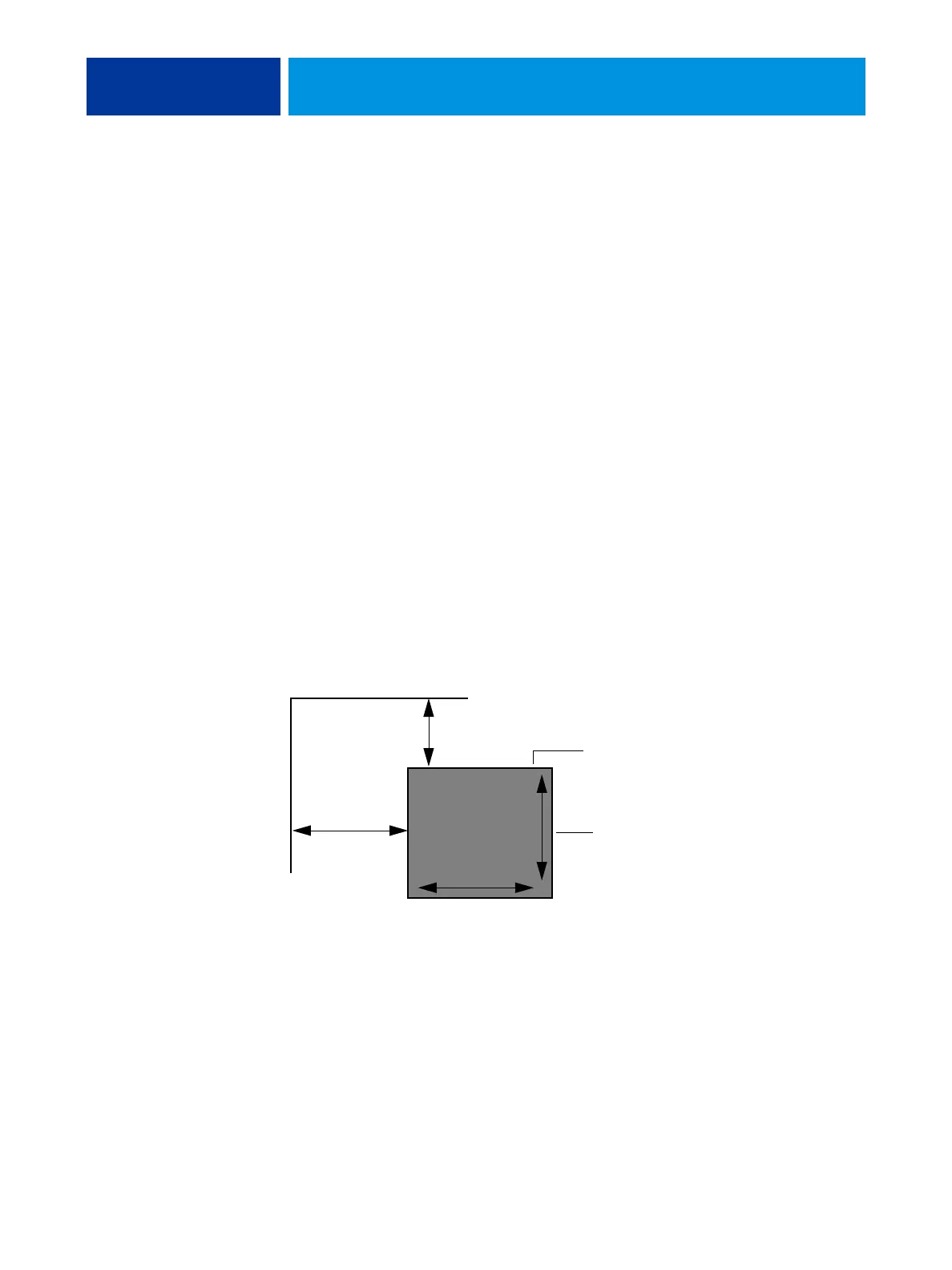

80cm+ (32in.)
E-42B and furniture
80cm+ (32in.)
20cm+ (8in.)
20cm+ (8in.)
Connector panel of the E-42B and furniture
Side panel of the E-42B and furniture
