REPLACING PARTS 80
Switch bank assembly
The switch bank assembly attaches to the component sled. The switch bank assembly
includes the following components:
•DVD drive
• Power button and cable
• Reset button and cable
•Speaker and cable
• Front USB ports and cables
NOTE: For more information about servicing the DVD drive, see page 84.

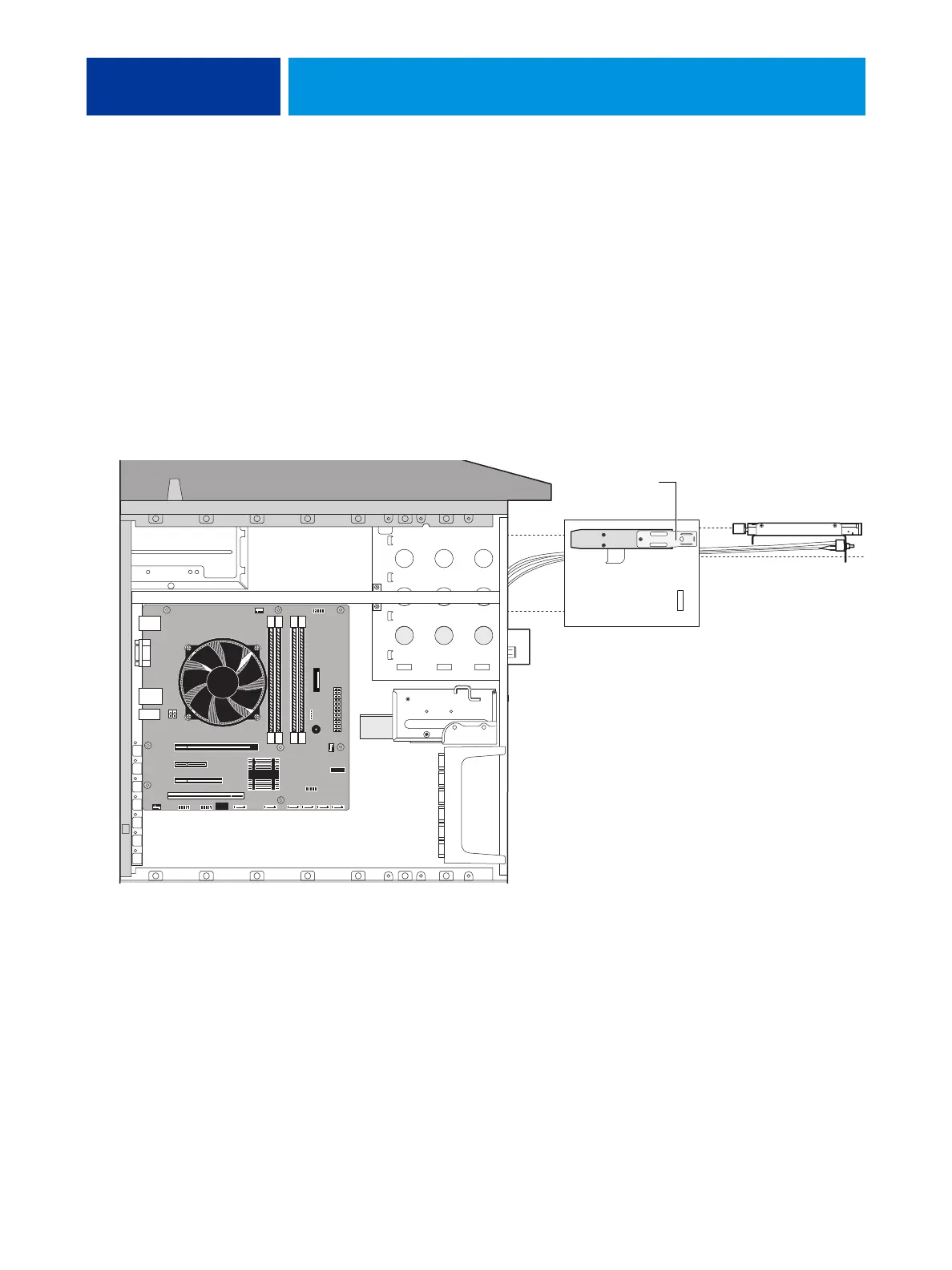

FIGURE 24: component sled with switch bank assembly
Switch bank
assembly with
DVD drive
Component sled
Guide latch
(1 of 2)
NOTE: Printer interface
and internal cables are not shown.
