REPLACING PARTS 39

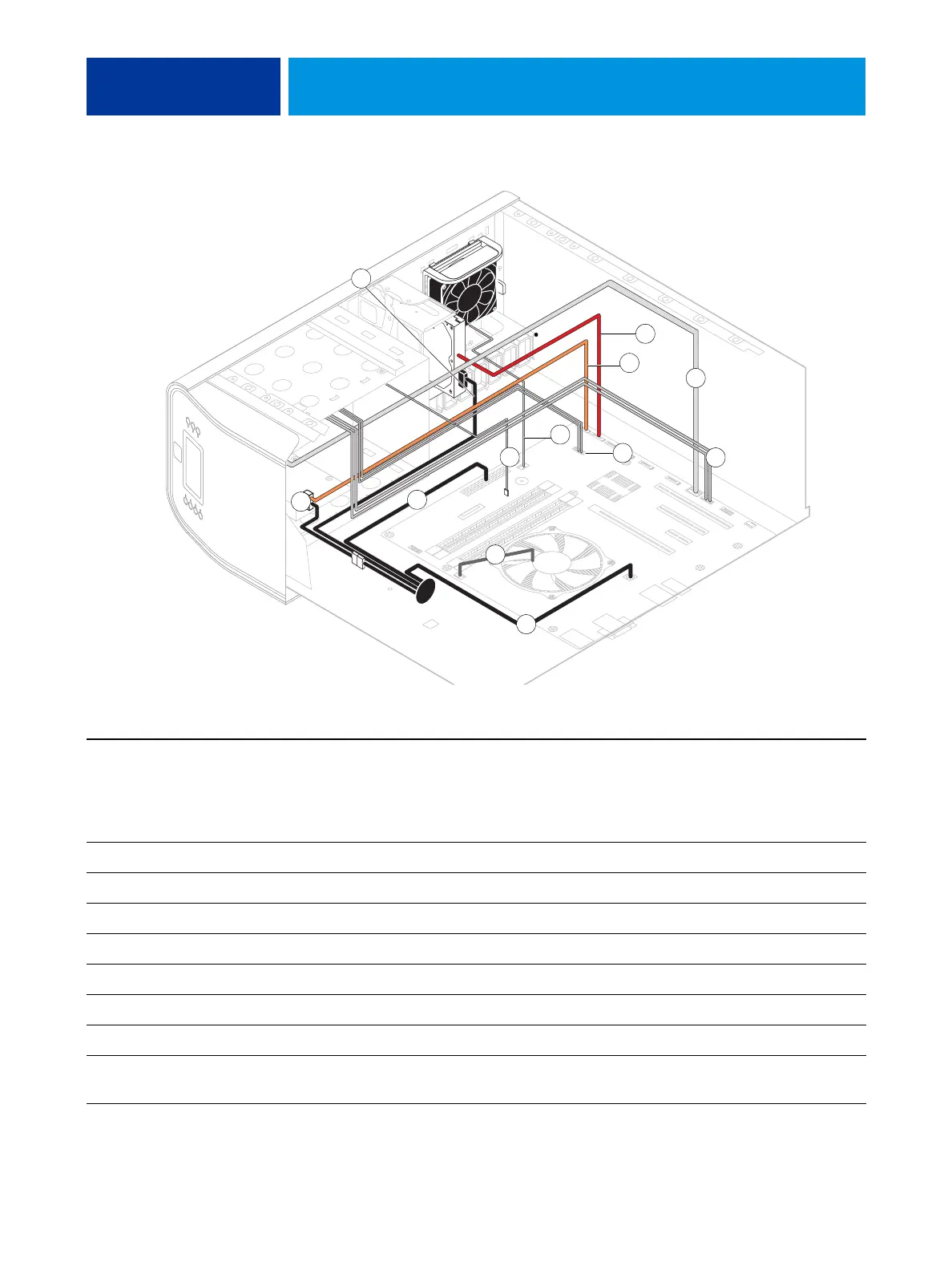

FIGURE 8: Power and data cable connections
Cable key From To
1. Power supply cable Power supply a. CPU power connector (PW1)
b. Motherboard power connector (PW2)
c. DVD drive power connector (combined with data)
d. Hard disk drive power connector
2. Front panel USB port cables Front panel Motherboard connectors J22, J35 (see detail above)
3. UIB cable User interface board Motherboard connector J38 (see detail above)
4. Power and reset cables Front panel Motherboard connector JP4 (see detail above)
5. Speaker cable Front panel Motherboard connector J40 (see detail above)
6. Front panel fan cable Front panel fan Motherboard connector FAN 4 (see detail above)
7. DVD drive power/data combo cable DVD drive Motherboard connector SATA 0 (see detail above)
8. Hard disk drive (HDD) data cable Hard disk drive (HDD) Motherboard connector SATA 1 (see detail above)
9. CPU fan cable CPU fan Motherboard connector FAN 1 (If present, keep the
cable cover on the CPU fan cable.)
1b
1c
9
5
NOTE: Power supply, DIMMs, and
printer interface are not shown.
1a
8
7
6
1d
3
2
4
