EFI E-42B User Manual

REPLACING PARTS 66
CPU
The CPU is installed in a socket on the motherboard. Before you remove the CPU from its
socket, remove the motherboard from the chassis (see page 55), disconnect the CPU fan cable
from the motherboard, and then remove the cooling assembly from the E-42B (see page 67).
The CPU cooling assembly consists of a fan and a heatsink.
NOTE: Do not remove the CPU fan from the heatsink.

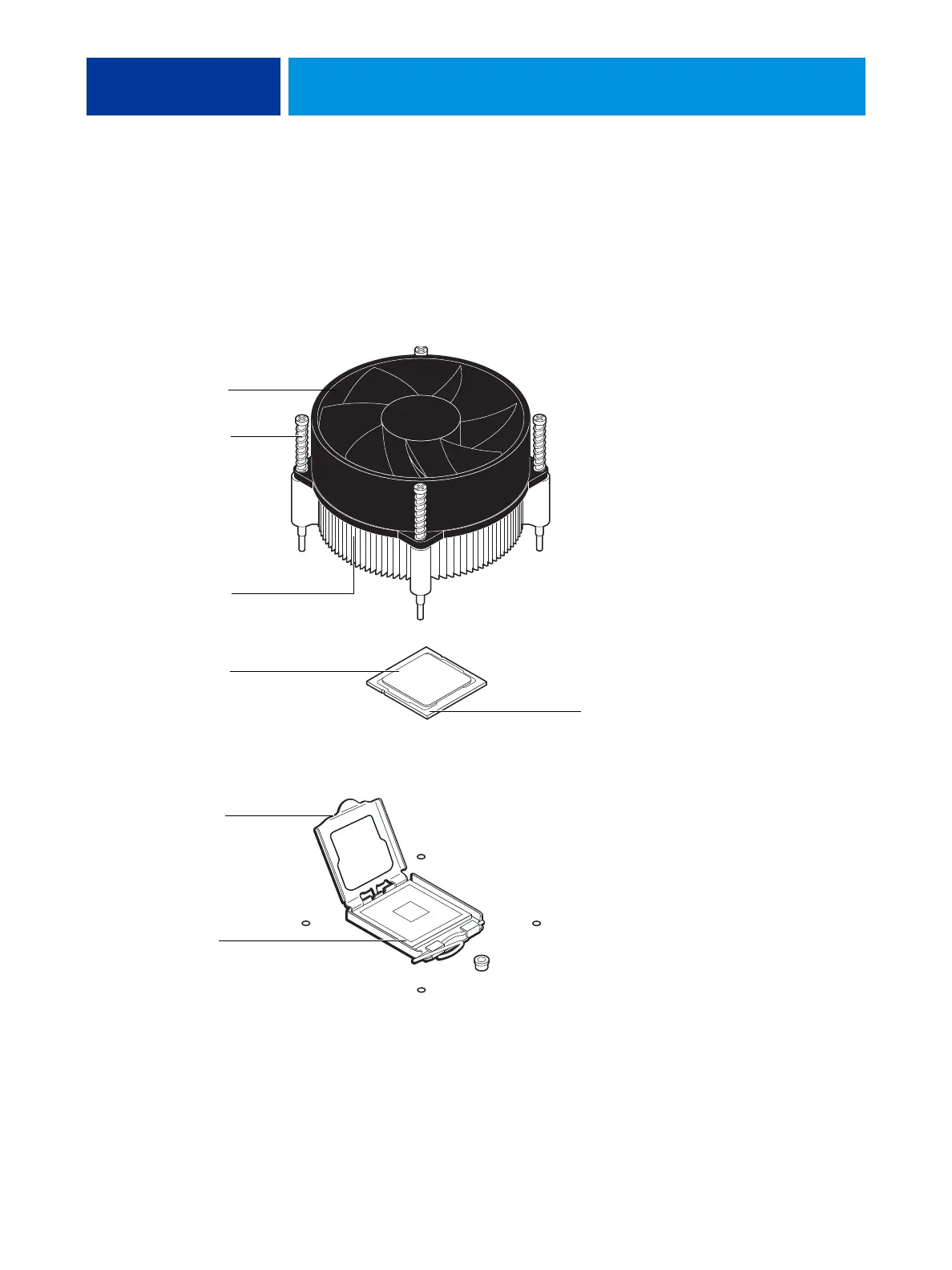

FIGURE 17: CPU cooling assembly
Fastener
screw
(1 of 4)
CPU fan
Heatsink
CPU
Yellow triangle
Load plate open
Yellow triangle
