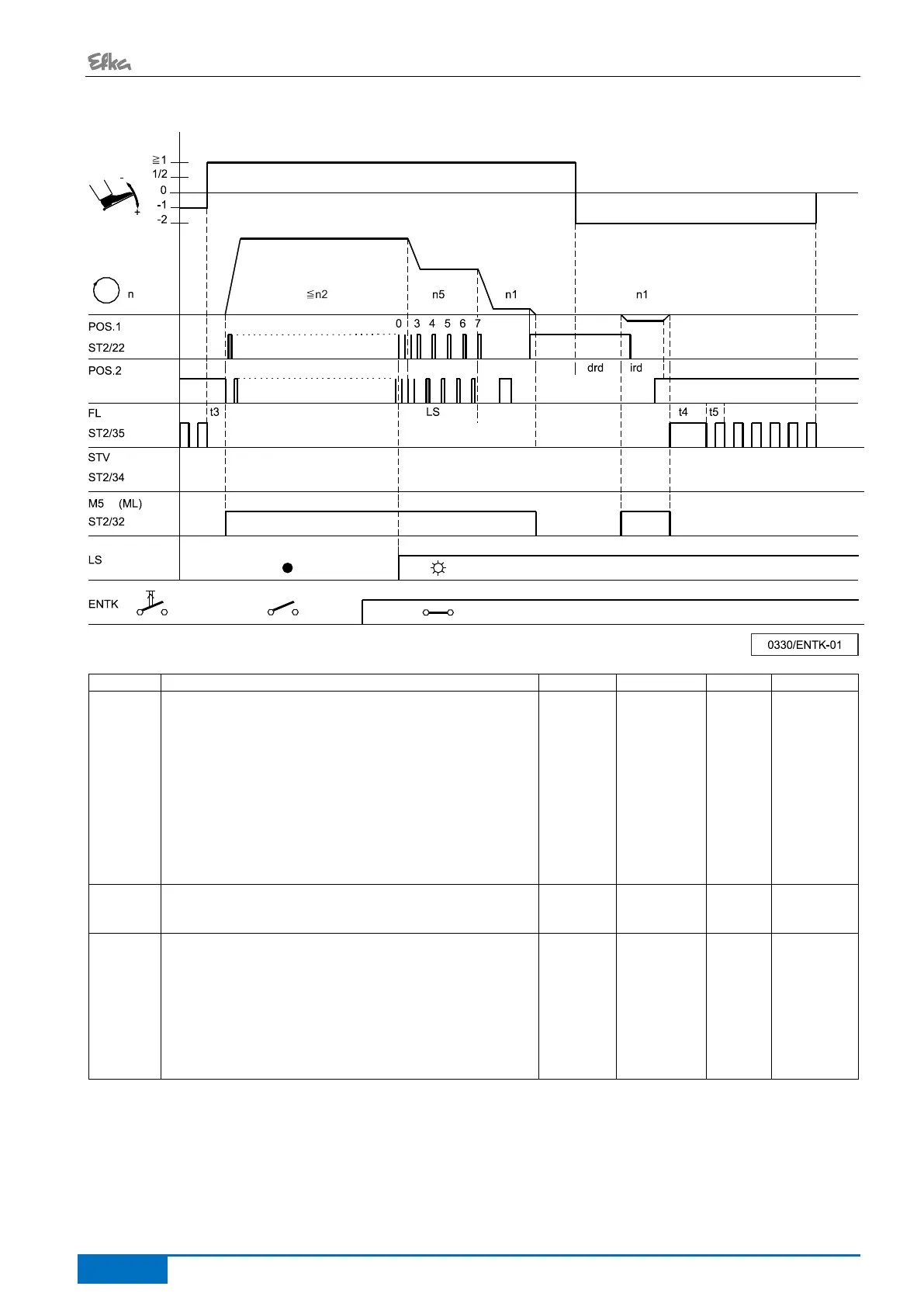

Mode 5, 6 or 7 (function “unlocking the chain” with light barrier)
Mark
Function
Parameters
Control
V810
V820
FAm
drE
Frd
LS
mEk
in7
in8
in..
Mode 5
Direction of motor rotation
Reverse motor rotation
Basic position 2
End stitch condensing and thread trimmer *)
Light barrier
Unlock the chain automatically with light barrier
Machine run blockage effective with open
contact
Automatic speed n12 without pedal
Assign the function “unlocking the chain” to an
output
Right
On
On
290 =5
161 =0
182 =1
009 =1
190 =2
246 =6
247 =10
2..
Key >>
Key 4
Key 7
n1
n2
n5
Positioning speed
Maximum speed
Speed after light barrier sensing
110
111
114
LS
ird
drd
t3
t4
t5
tGn
dGF
kdF
Light barrier compensating stitches
Number of reversing increments
Switch-on delay of reverse motor rotation
Start delay from lifted sewing foot
Full power of sewing foot lifting
Pulsing of sewing foot lifting
Speed gate damping period
Speed gate 2
Switch-on delay of sewing foot lifting
004
180
181
202
203
204
222
224 =1
288
*) When unlocking the chain, the functions “stitch condensing” and “thread trimmer” are suppressed!
