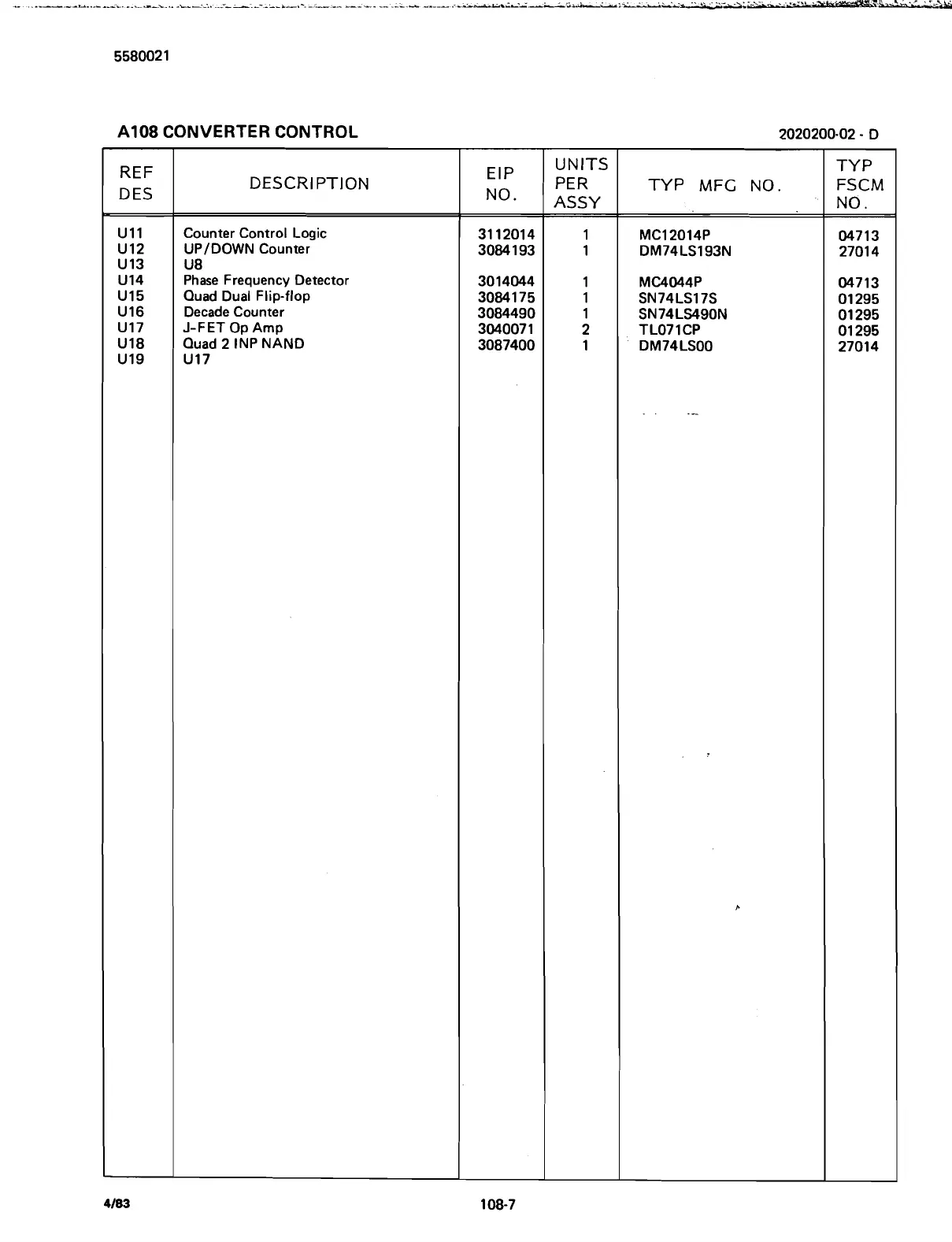

EIP 545A - Page 116

A108 CONVERTER CONTROL
2020200-02 - D
REF
D ES
b
U11
U 12
U13
U14
U15
U16
U17
U18
U19
DESCRI PTlON
Counter Control Logic
UPIDOWN Counter
U8
Phase Frequency Detector
Quad Dual Flip-flop
Decade Counter
J-FETOpAmp
Quad 2 INP NAND
U17
No.
31 12014
3084 1 93
3014044
30841 75
3084490
304007 1
3087400
UNITS
PER
ASSY
1
1
1
1
1
2
1
TYP MFG NO.
MC12014P
DM74LS193N
MC4044P
SN74LS17S
SN74LS490N
TL07 1 CP
DM74LSOO
-.
TY P
FSCM
NO.
04713
2701 4
04713
01 295
01 295
01 295
27014
