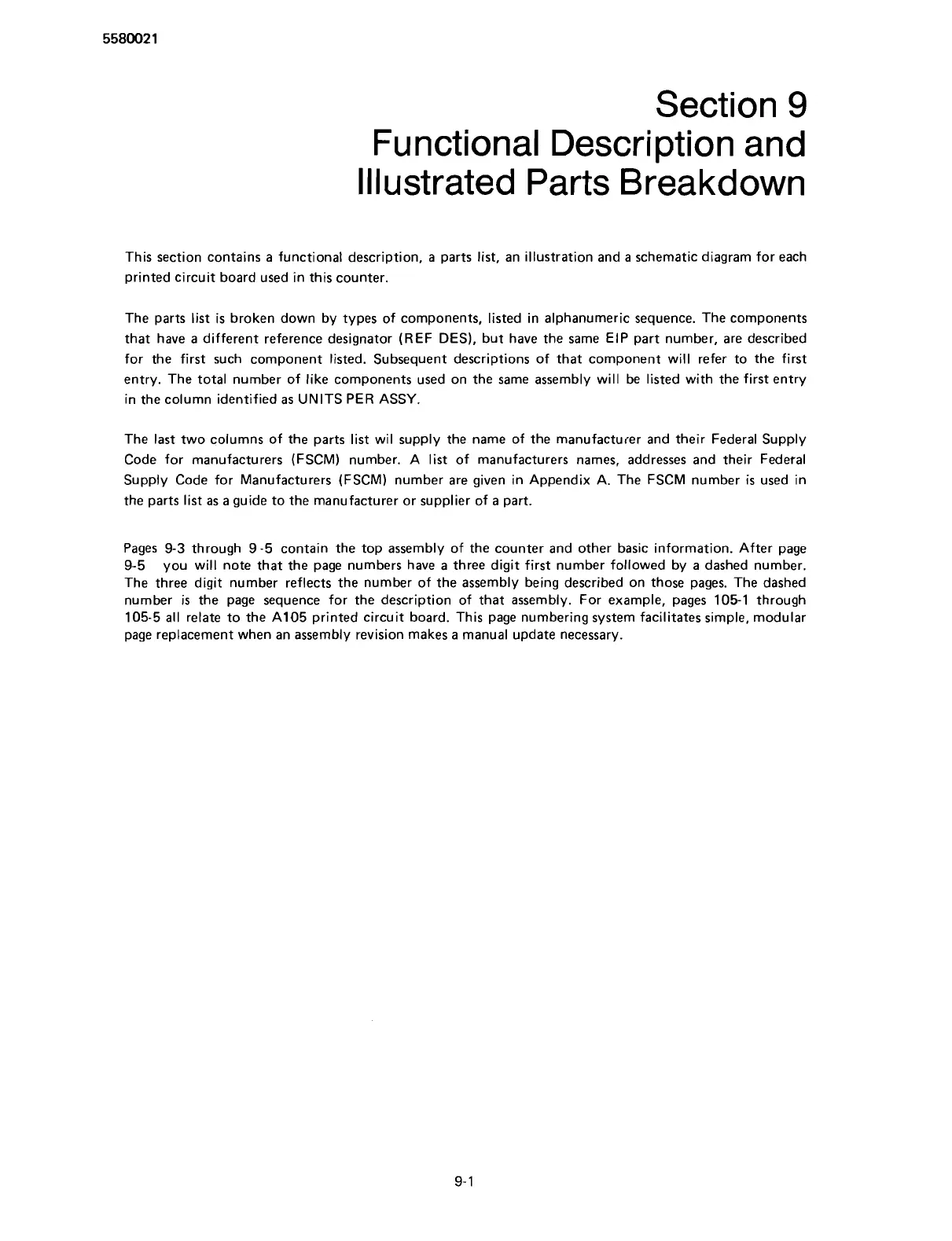

Section
9
Functional Description and
Illustrated Parts Breakdown
This section contains
a
functional description,
a
parts list, an illustration and
a
schematic diagram for each
printed circuit board used in this counter.
The parts list
is
broken down by types of components, listed in alphanumeric sequence. The components
that have
a
different reference designator (REF DES), but have the same EIP part number, are described
for the first such component listed. Subsequent descriptions of that component will refer to the first
entry. The total number of like components used on the same assembly will be listed with the first entry
in
the column identified
as
UNITS PER ASSY.
The last two columns of the parts list wil supply the name of the manufacturer and their Federal Supply
Code for manufacturers (FSCM) number. A list of manufacturers names, addresses and their Federal
Supply Code for Manufacturers (FSCM) number are given in Appendix A. The FSCM number
is
used in
the parts list
as
a
guide to the manufacturer or supplier of
a
part.
Pages 9-3 through 9-5 contain the top assembly of the counter and other basic information. After page
9-5 you will note that the page numbers have
a
three digit first number followed by
a
dashed number.
The three digit number reflects the number of the assembly being described on those pages. The dashed
number
is
the page sequence for the description of that assembly. For example, pages 105-1 through
105-5 all relate to the A105 printed circuit board. This page numbering system facilitates simple, modular
page replacement when an assembly revision makes
a
manual update necessary.
