OPTION
10
CHASSIS
SLIDE
Option 10 equips your counter with the hardware required to mount the unit in a standard 19" wide
console. With the chassis slide installed the counter can be serviced without removing it from the rack.
The option consists of:
OPTION
10
-
2010147
@
Rack Mount Kit
-
2010008-01
@
Slide Set
-
5000 189
@
Side Panels
-
5210179
@
Spacers
-
5210249
1. All MTG HDWR and hole spacing
conforms to MI L-STD-189.
2. To install slides in field; Remove top
cover and top frame; Mount special
side panels
(5210179) on Std.
enclosure.
3.
Item numbers within
0
syybol
are on PIL 2010147. All other Items
assembled or exploded are shown
for clarification or reference
only.

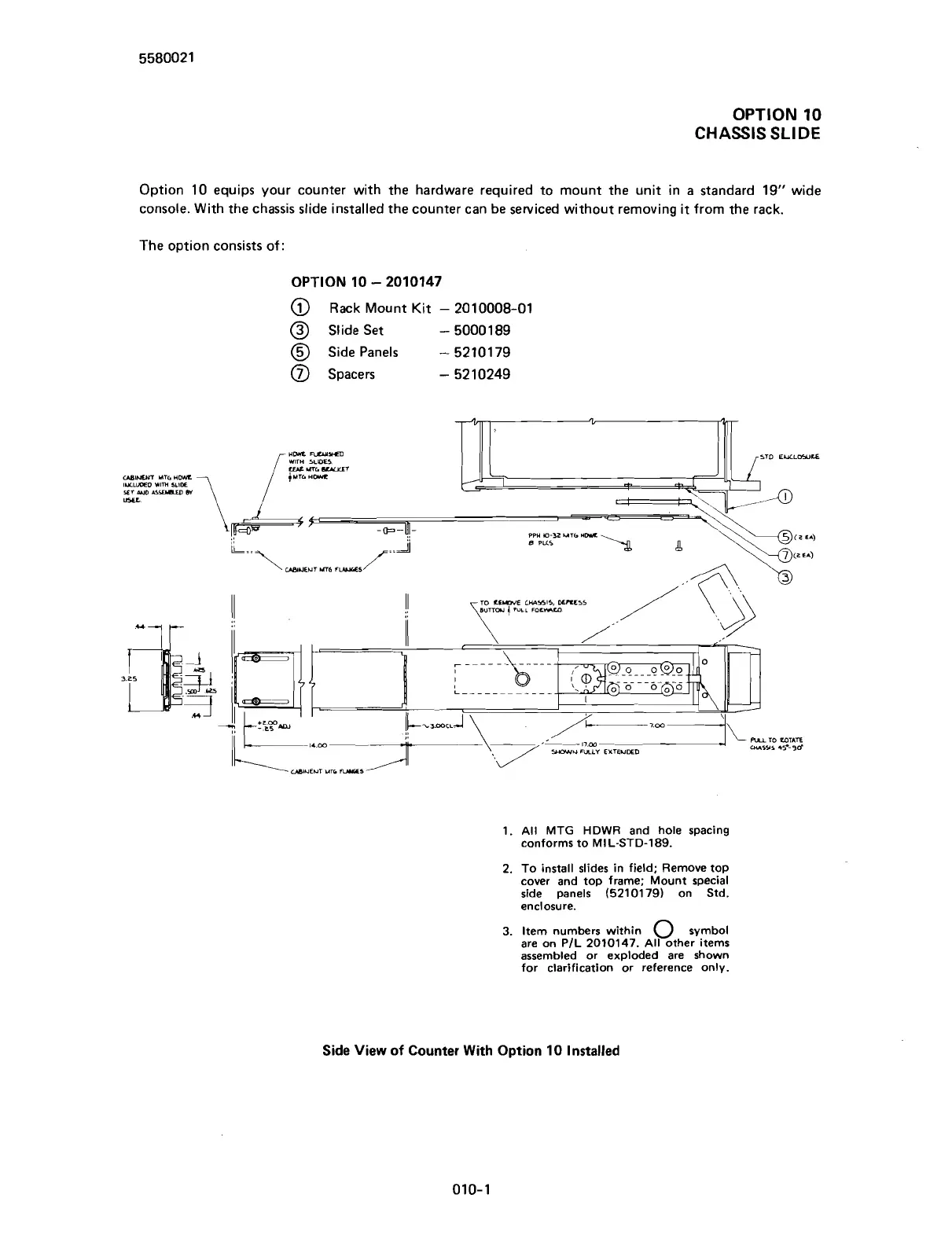

Side
View
of Counter With Option
10
Installed
