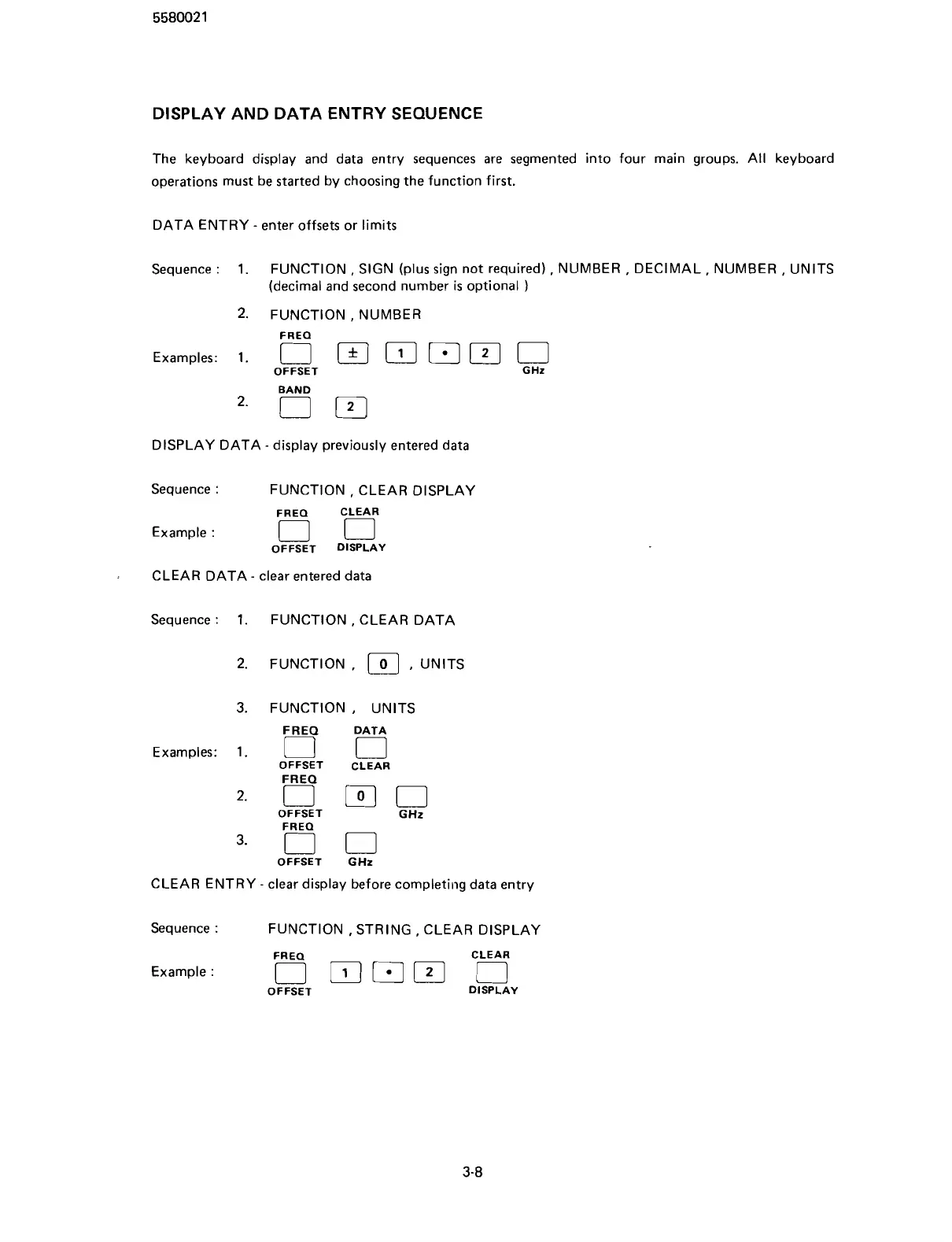

DISPLAY AND DATA ENTRY SEQUENCE
The keyboard display and data entry sequences are segmented into four main groups. All
keyboard
operations must be started by choosing the function first.
DATA ENTRY
- enter offsets or limits
Sequence
: 1.
FUNCTION, SIGN (plus sign not required), NUMBER, DECIMAL, NUMBER, UNITS
(decimal and second number
is optional )
2. FUNCTION, NUMBER
FREQ
Examples: 1. 0 ~~mm~
OFFSET GHz
BAND
2. 0 0
DISPLAY DATA - display previously entered data
Sequence
: FUNCTION, CLEAR DISPLAY
FE CER
Example : U
OFFSET DISPLAY
CLEAR DATA - clear entered data
Sequence
: 1. FU.NCTION , CLEAR DATA
2. FUNCTION, , UNITS
3. FUNCTION , UNITS
Examples:
1.
OFFSET CLEAR
FREQ
2. nmn
L uu
OFFSET GHz
FREQ
3. u u
OFFSET GHz
CLEAR ENTRY - clear display before completi~ig data entry
Sequence
:
FUNCTION , STRING, CLEAR DISPLAY
FREQ CLEAR
Example : 0 mmm 0
OFFSET DISPLAY
