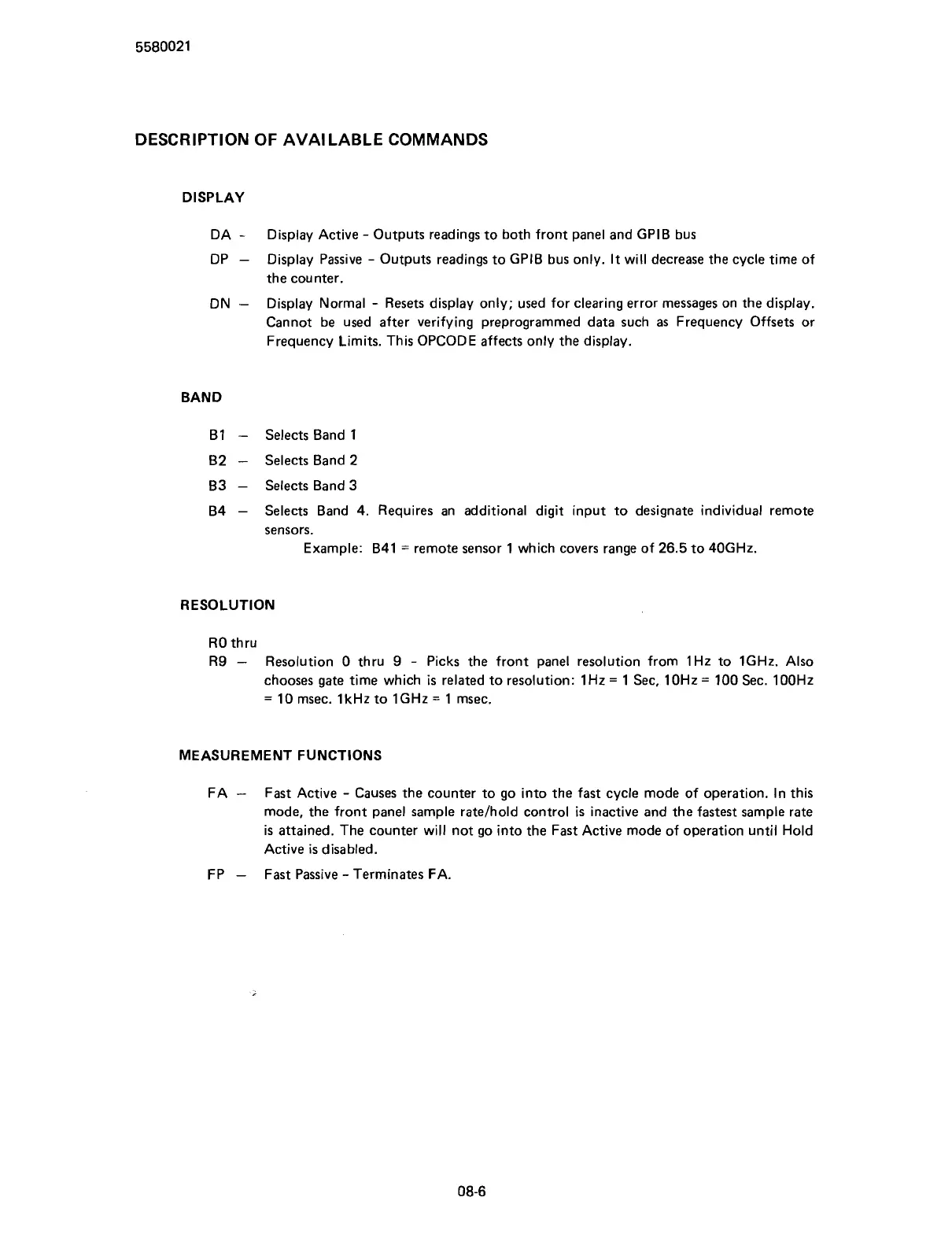

DESCRIPTION OF AVAILABLE COMMANDS
DISPLAY
DA
-
Display Active
-
Outputs readings to both front panel and GPlB bus
DP
-
Display Passive
-
Outputs readings to GPlB bus only. It will decrease the cycle time of
the counter.
DN
-
Display Normal
-
Resets display only; used for clearing error messages on the display.
Cannot be used after verifying preprogrammed data such as Frequency Offsets or
Frequency Limits. This OPCODE affects only the display.
BAND
B1
-
Selects Band 1
B2
-
Selects Band 2
B3
-
Selects Band
3
84
-
Selects Band 4. Requires an additional digit input to designate individual remote
sensors.
Example:
841
=
remote sensor 1 which covers range of 26.5 to 40GHz.
RESOLUTION
RO thru
R9
-
Resolution 0 thru
9
-
Picks the front panel resolution from 1Hz to 1GHz. Also
chooses gate time which
is
related to resolution: 1Hz
=
1 Sec, 10Hz
=
100 Sec. 100Hz
=
10 msec. 1kHz to 1GHz
=
1 msec.
MEASUREMENT FUNCTIONS
FA
-
Fast Active
-
Causes the counter to go into the fast cycle mode of operation. In this
mode, the front panel sample
ratelhold control
is
inactive and the fastest sample rate
is attained. The counter will not go into the Fast Active mode of operation until Hold
Active
is
disabled.
FP
-
Fast Passive
-
Terminates FA.
