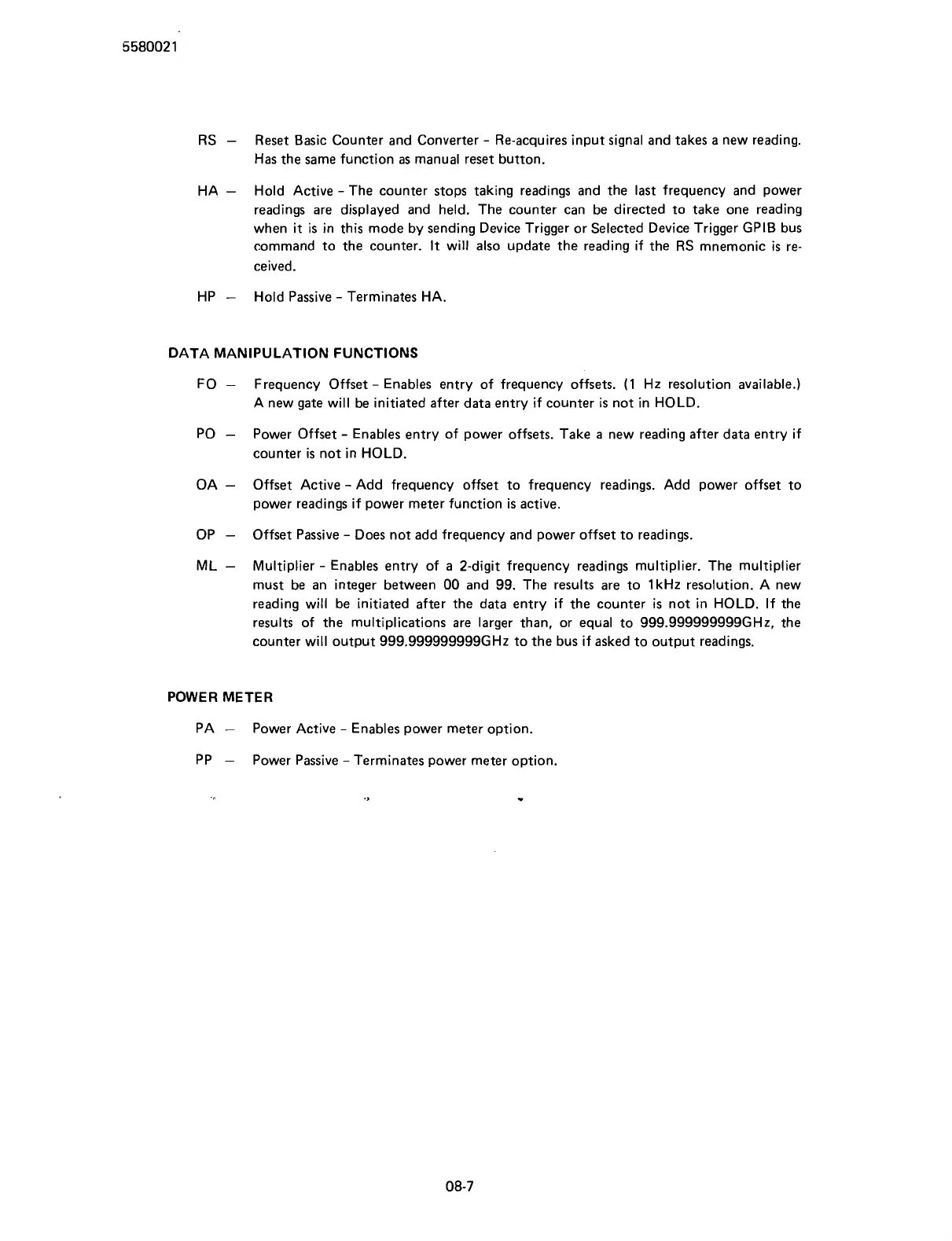

RS
-
Reset Basic Counter and Converter
-
Re-acquires input signal and takes
a
new reading.
Has the same function
as
manual reset button.
HA
-
Hold Active -The counter stops taking readings and the last frequency and power
readings are displayed and held. The counter can be directed to take one reading
when it
is
in this mode by sending Device Trigger or Selected Device Trigger GPlB bus
command to the counter.
It
will also update the reading if the RS mnemonic
is
re-
ceived.
HP
-
Hold Passive
-
Terminates HA.
DATA MANIPULATION FUNCTIONS
FO
-
Frequency Offset
-
Enables entry of frequency offsets.
(1
Hz resolution available.)
A new gate will be initiated after data entry if counter
is
not in HOLD.
PO
-
Power Offset
-
Enables entry of power offsets. Take
a
new reading after data entry if
counter
is
not in HOLD.
OA
-
Offset Active
-
Add frequency offset to frequency readings. Add power offset to
power readings if power meter function is active.
OP
-
Offset Passive
-
Does not add frequency and power offset to readings.
ML
-
Multiplier
-
Enables entry of
a
2-digit frequency readings multiplier. The multiplier
must be an integer between
00
and 99. The results are to
1
kHz resolution. A new
reading will be initiated after the data entry if the counter
is
not in HOLD. If the
results of the multiplications are larger than, or equal to
999.999999999GHz, the
counter will output
999.999999999GHz to the bus if asked to output readings.
POWER METER
PA
-
Power Active
-
Enables power meter option.
PP
-
Power Passive
-
Terminates power meter option.
