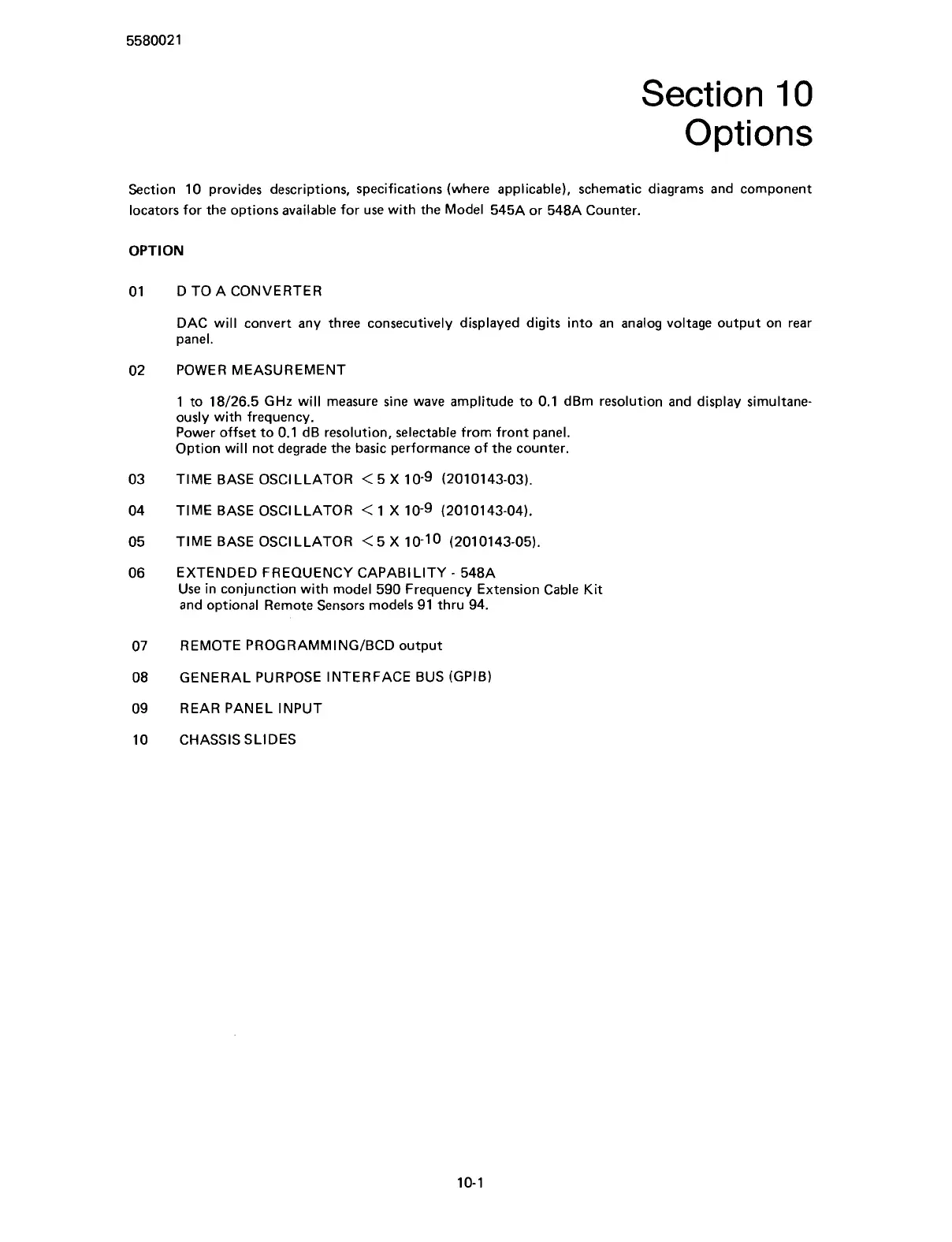

Section
10
Options
Section 10 provides descriptions, specifications (where applicable), schematic diagrams and component
locators for the options available for use with the Model 545A or 548A Counter.
OPTION
01 D TO A CONVERTER
DAC will convert any three consecutively displayed digits into an analog voltage output on rear
panel.
02 POWER MEASUREMENT
1 to 18126.5
GHz will measure sine wave amplitude to 0.1 dBm resolution and display simultane-
ously with frequency.
Power offset to 0.1 dB resolution, selectable from front panel.
Option will not degrade the basic performance of the counter.
03
TlME BASE OSCl LLATOR
<
5 X 10-9 (2010143-03).
05
TlME BASE OSCl LLATOR
<
5 X 10-10 (2010143-05).
06
EXTENDED FREQUENCY CAPABILITY
-
548A
Use in conjunction with model 590 Frequency Extension Cable Kit
and optional Remote Sensors models 91 thru 94.
07 REMOTE
PROGRAMMINGIBCD output
08
GENERAL PURPOSE INTERFACE BUS
(GPIB)
09 REAR PANEL INPUT
10 CHASSIS SLIDES
