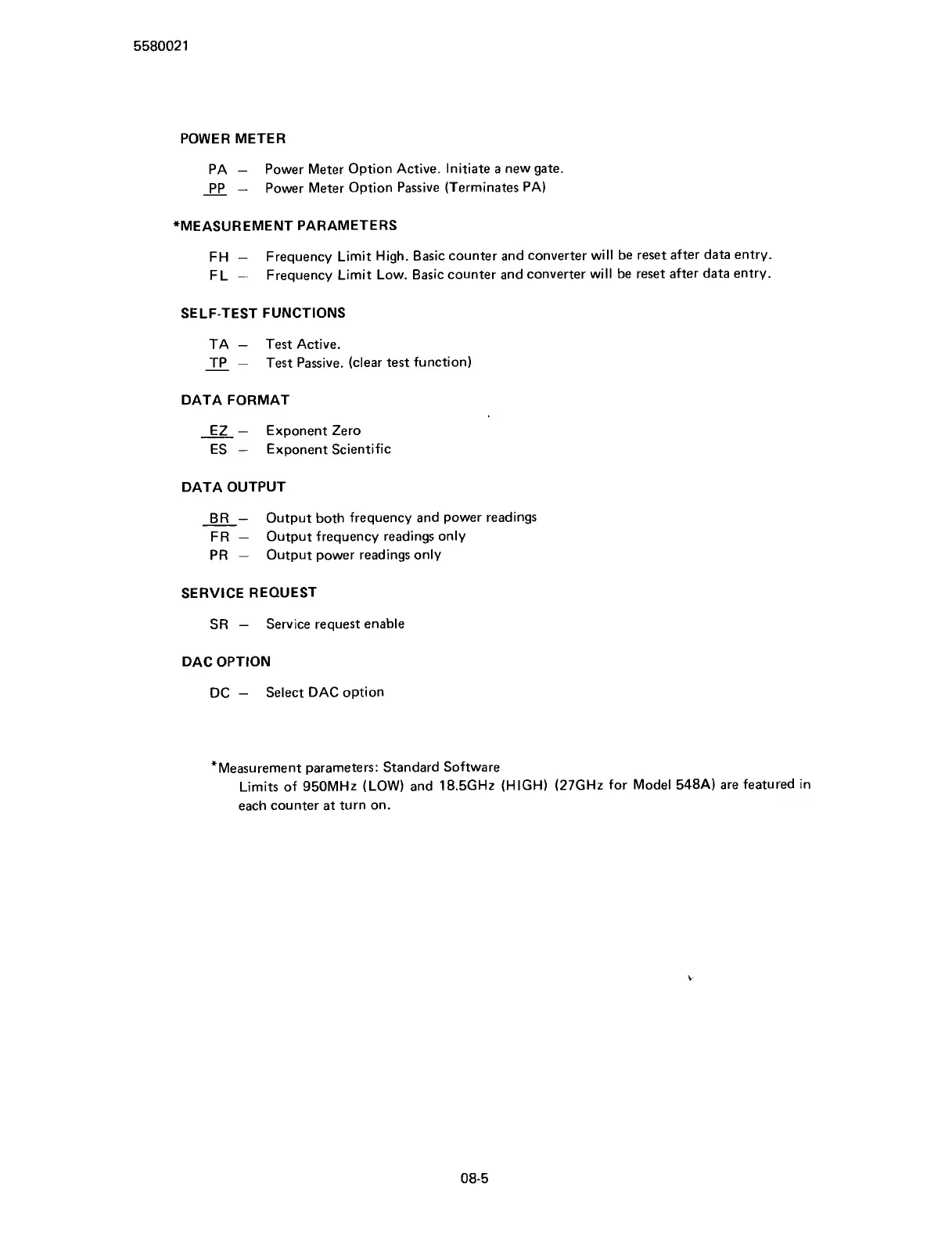

POWER METER
PA
- Power Meter Option Active. Initiate a new gate.
PP - Power Meter Option Passive (Terminates PA)
*MEASUREMENT PARAMETERS
FH
-
Frequency Limit High. Basic counter and converter will be reset after data entry.
FL
--
Frequency Limit Low. Basic counter and converter will be reset after data entry.
SE LF-TEST FUNCTIONS
TA
- Test Active.
TP - Test Passive. (clear test function)
DATA FORMAT
- Exponent Zero
ES
- Exponent Scientific
DATA OUTPUT
m-
Output both frequency and power readings
F
R - Output frequency readings only
PR
- Output power readings only
SERVICE REQUEST
SR
- Service request enable
DAC OPTION
DC - Select DAC option
Measurement parameters: Standard Software
Limits of
950MHz (LOW) and 18.5GHz (HIGH) (27GHz for Model 548A) are featured in
each counter at turn on.
