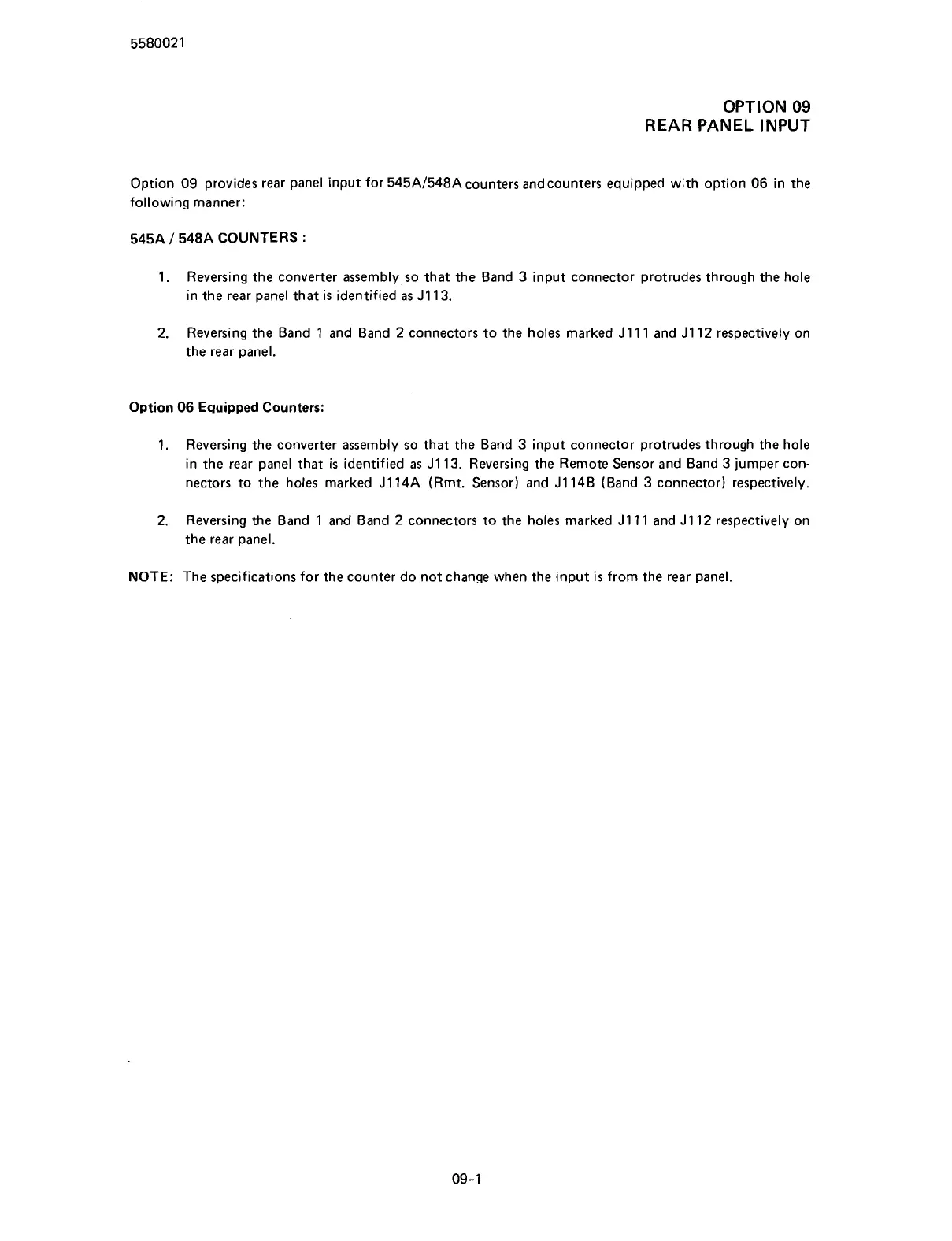

OPTION
09
REAR PANEL INPUT
Option
09
provides rear panel input for 545A1548A counters andcounters equipped with option
06
in the
following manner:
545A
/
548A COUNTERS
:
1. Reversing the converter assembly so that the Band 3 input connector protrudes through the hole
in the rear panel that is identified
as
J113.
2.
Reversing the Band 1 and Band 2 connectors to the holes marked J111 and J112 respectively on
the rear panel.
Option
06
Equipped Counters:
1. Reversing the converter assembly so that the Band 3 input connector protrudes through the hole
in the rear panel that
is
identified
as
J113. Reversing the Remote Sensor and Band 3 jumper con-
nectors to the holes marked
J114A (Rmt. Sensor) and J114B (Band 3 connector) respectively.
2.
Reversing the Band 1 and Band 2 connectors to the holes marked
J111 and J112 respectively on
the rear panel.
NOTE: The specifications for the counter do not change when the input
is
from the rear panel.
