EIP 545A - Page 63

PRESS: TEST, 0, 6
DOES
A100J7 PIN 2 CONTAIN A
1.8 VOLT 325
ms RAMP?
LOOK AT
A108TP2. DOES IT
CONTAIN A 5 VOLT
325
ms RAMP?
CHECK A201 B-E4 (IF THRESH.)
IS IT A TTL HIGH?
A108 FREQUENCY CONTROL
I.F. THRESHOLD BAD
7
I
A108 YIG DRIVER BAD.
POWER METER OR POWER
METER ZERO CIRCUIT ON
A107 BAD.
I J L I
SEE FIGURE 6-21.
POWER METER

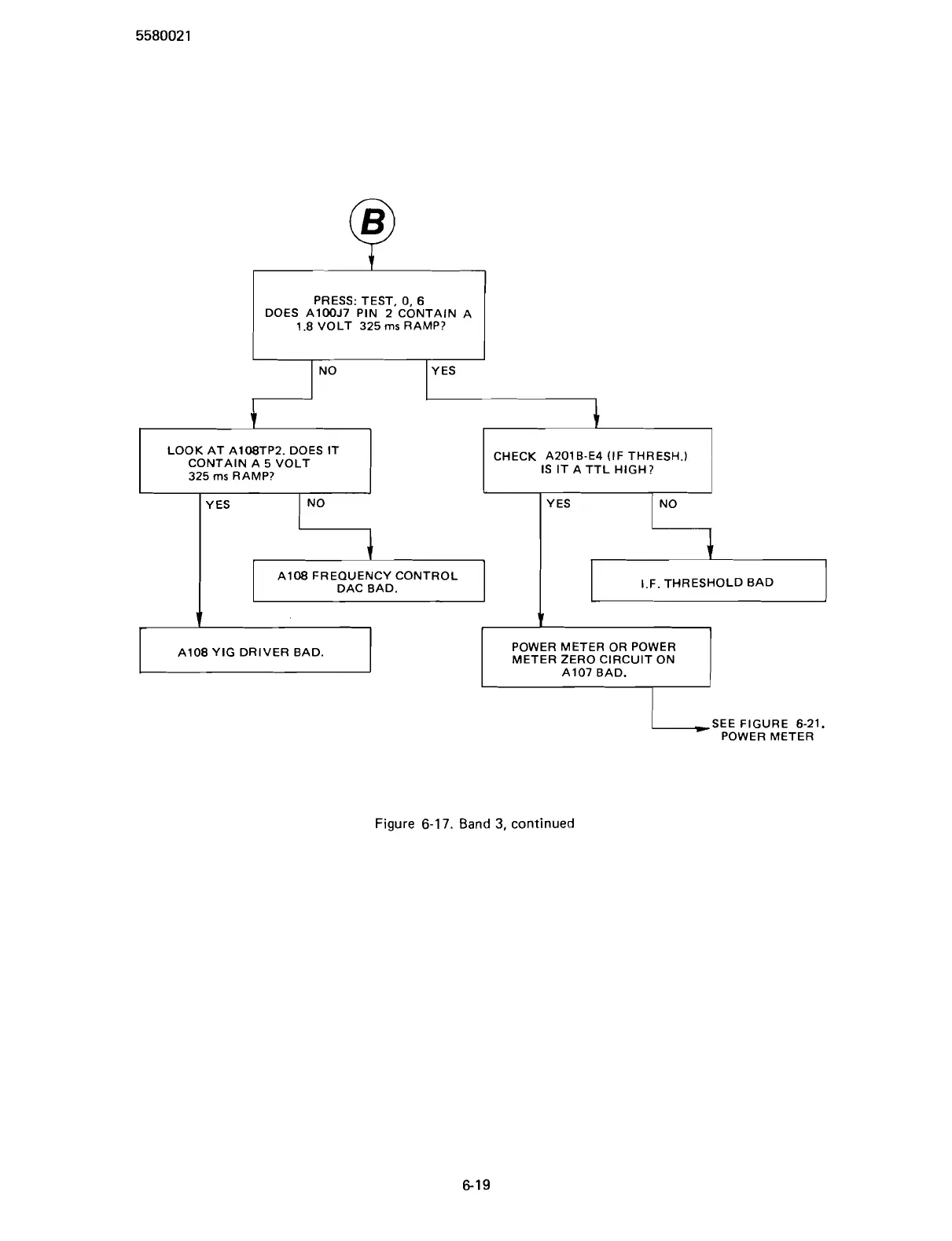

Figure 6-1 7. Band 3, continued
YES
YES
NO
NO
