Chapter 2 Conguring from the monitor screen

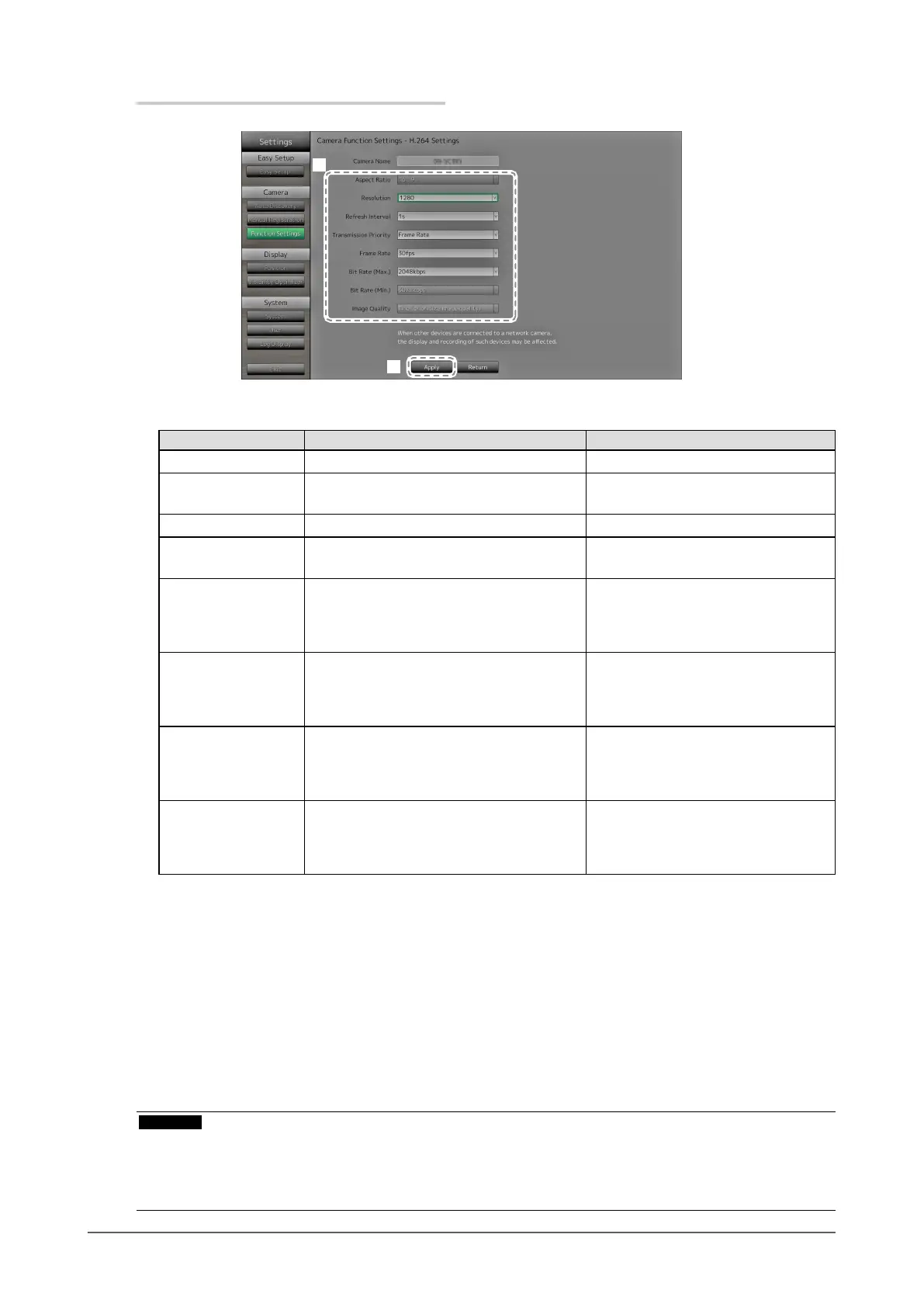

WhenusingaPanasonicnetworkcamera
2
1
1. Congure the items.
Item Detail Setting range
Aspect Ratio Set the H.264 aspect ratio.
*1
Network camera imaging mode
Resolution Set the H.264 resolution. According to the network camera
specication
Refresh Interval Set the refresh interval
*2
of H.264 images. 0.2s / 0.33s / 0.5s / 1s / 2s / 3s / 4s / 5s
Transmission Priority Set the transmission mode of H.264
images.
Constant Bit Rate / Frame Rate / Best
Effort
Frame Rate (When the mode is set to “Frame Rate” at
“Transmission Priority”.)
Set the frame rate (image update interval)
of H.264 images.
*3
1fps / 3fps / 5fps / 7.5fps / 10fps / 12fps /
15fps / 20fps / 30fps
Bit Rate (Max.) Set the maximum H.264 image bit rate. 64kbps / 128kbps / 256kbps / 384kbps /
512kbps / 768kbps / 1024kbps /
1536kbps / 2048kbps / 3072kbps /
4
096kbps / 8192kbps
Bit Rate (Min.) (When the mode is set to “Best Effort” for
“Transmission Priority”.)
Set the minimum H.264 image bit rate.
64kbps / 128kbps / 256kbps / 384kbps /
512kbps / 768kbps / 1024kbps /
1536kbps / 2048kbps / 3072kbps /
4096kbps / 8192kbps
Image Quality (When the mode is set to “Constant Bit
Rate” or “Best Effort” for “Transmission
Priority”.)
Set the H.264 image quality.
Low (prioritize motion) / Normal / Fine
(prioritize image quality)
*1 When “1920” is selected for “Resolution”, the aspect ratio is xed to 16:9. The aspect ratio cannot be
set when the network camera “Stream” is set to a value other than “1”.
*2 For H.264 images, the differential data between the full screen frame data and previous frame are
sent periodically. “Refresh Interval” refers to the interval for sending these full screen frame data.
Shortening this interval improves the stability of image quality but also increases the load on the
network. “Refresh Interval” refers to the interval at which the full screen data is transmitted. Shortening
this interval improves the image quality but also increases the load on the network.
*3 The shorter the interval, the shorter the update interval and the smoother the display, but also the larger
the load on the network.
2. Select “Apply”.
The setting complete screen is displayed. Select “OK”.
Attention
• To display the multicast stream of Panasonic network cameras, congure multicast on the camera.
• When you change the “Aspect Ratio,” the network camera imaging mode will change. Depending on the
imaging mode, the image quality of other recording devices or display devices may be impacted. Check the
impact of changes to the imaging mode before conguring the settings.
