5-25
Configuration options
The inputs/outputs relationship can be configured as:
• input closed-relay de-energised, input opened-relay
energised
• input opened-relay de-energised, input closed-relay
energised
The configuration is performed in the following way:
• remove the module from termination board pulling-up
the tab on each side of the module

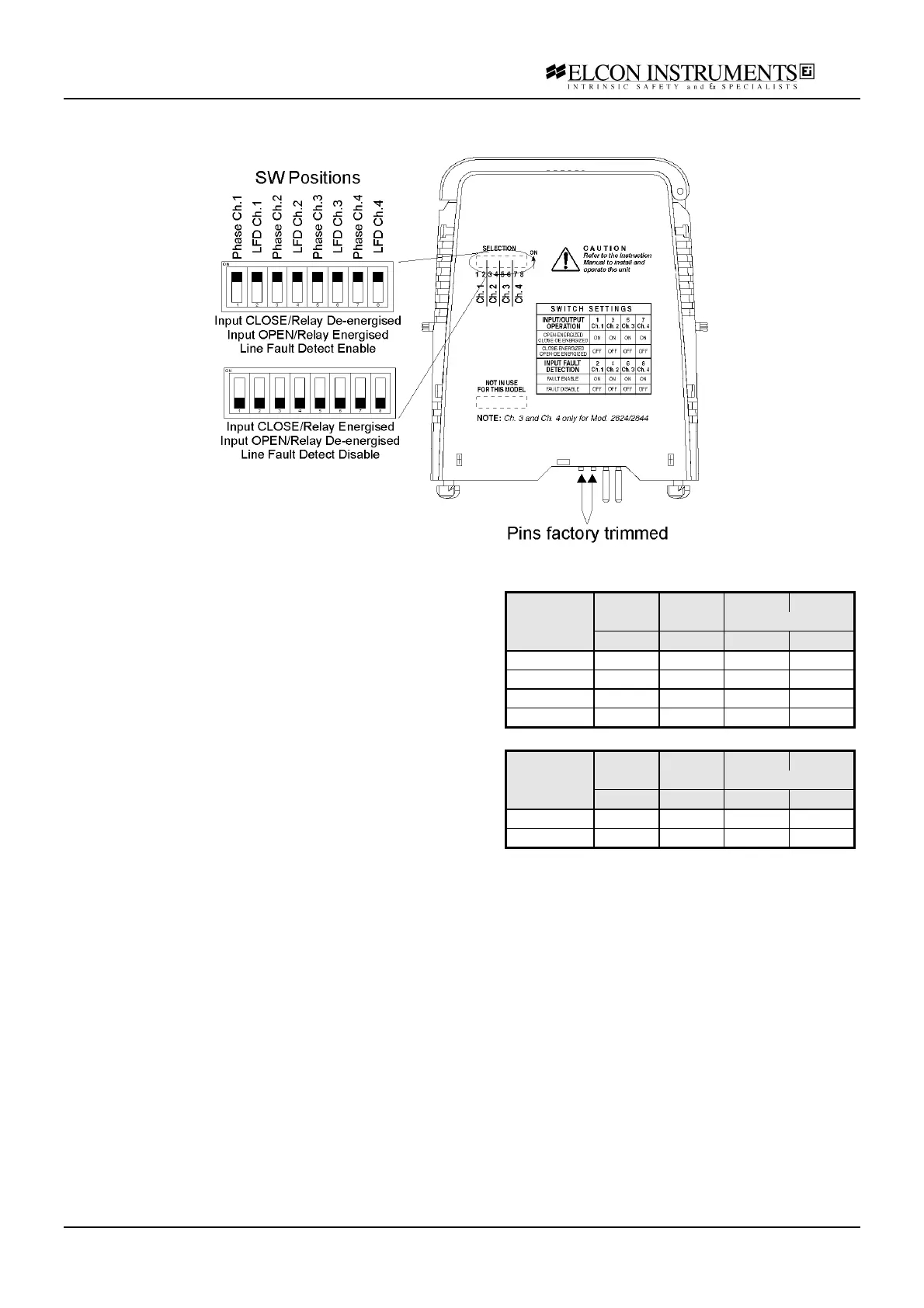

• set the dip-switches according to the figure and to the
tables
The prongs for this model are trimmed to polarise it
according to it’s safety parameter. Please do not change.
See chapter 4.5 for more details.
In/Out Ch.1 Ch.2 Ch.3 Ch.4
Only for HiD 2824
Relation SW1 SW3 SW5 SW7
NO/NE ON ON ON ON
NC/ND ON ON ON ON
NC/NE OFF OFF OFF OFF
NO/ND OFF OFF OFF OFF
Line Fault Ch.1 Ch.2 Ch.3 Ch.4
Only for HiD 2824
Detection SW2 SW4 SW6 SW8
Enable ON ON ON ON
Disable OFF OFF OFF OFF
