Electrolux T4130 - Displaying Machine Inputs; Input Signal Monitoring

18
Program unit
11
6204
10
6204
SERVICE
MENU 1-2
SHOW INPUTS
ARTICLE NUMBER
SHOW COM. PORTS
STATUS I/O BOARD
DISPLAY TEST
ACTIVATE OUTPUTS
MENU 1-2-1
DOOR CLOSED
VACUUM
EXTERNAL INPUT
PRICE REDUCTION
FILTER CLOSED
SHOW INPUTS

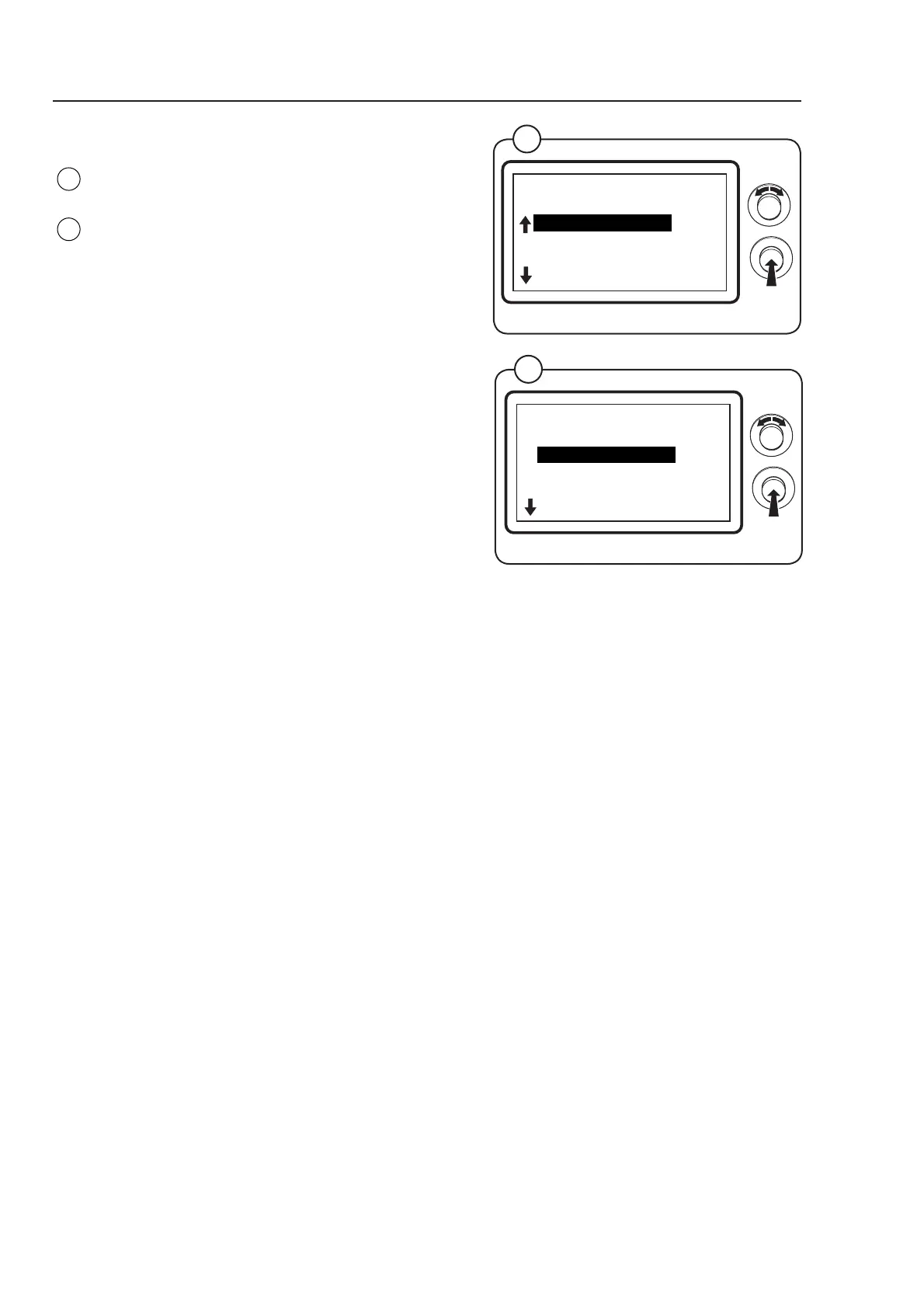

Select the row SHOW INPUTS and press the
knob.
The display now shows the sensor signals
(inputs) which can be controlled:
• DOOR CLOSED
• VACUUM
• EXTERNAL INPUT
• PRICE REDUCTION
• FILTER CLOSED
• OVERHEAT
• GAS INPUT
• FAN OVERHEAT
• DRUM OVERHEAT
• FREE DRY
• COIN 1
• COIN 2
• QUICK START 1
• QUICK START 2
• ANALOG
Select function and press the knob.
More inputs can be activated simultaneously.
Fig.
11
Fig.
10
