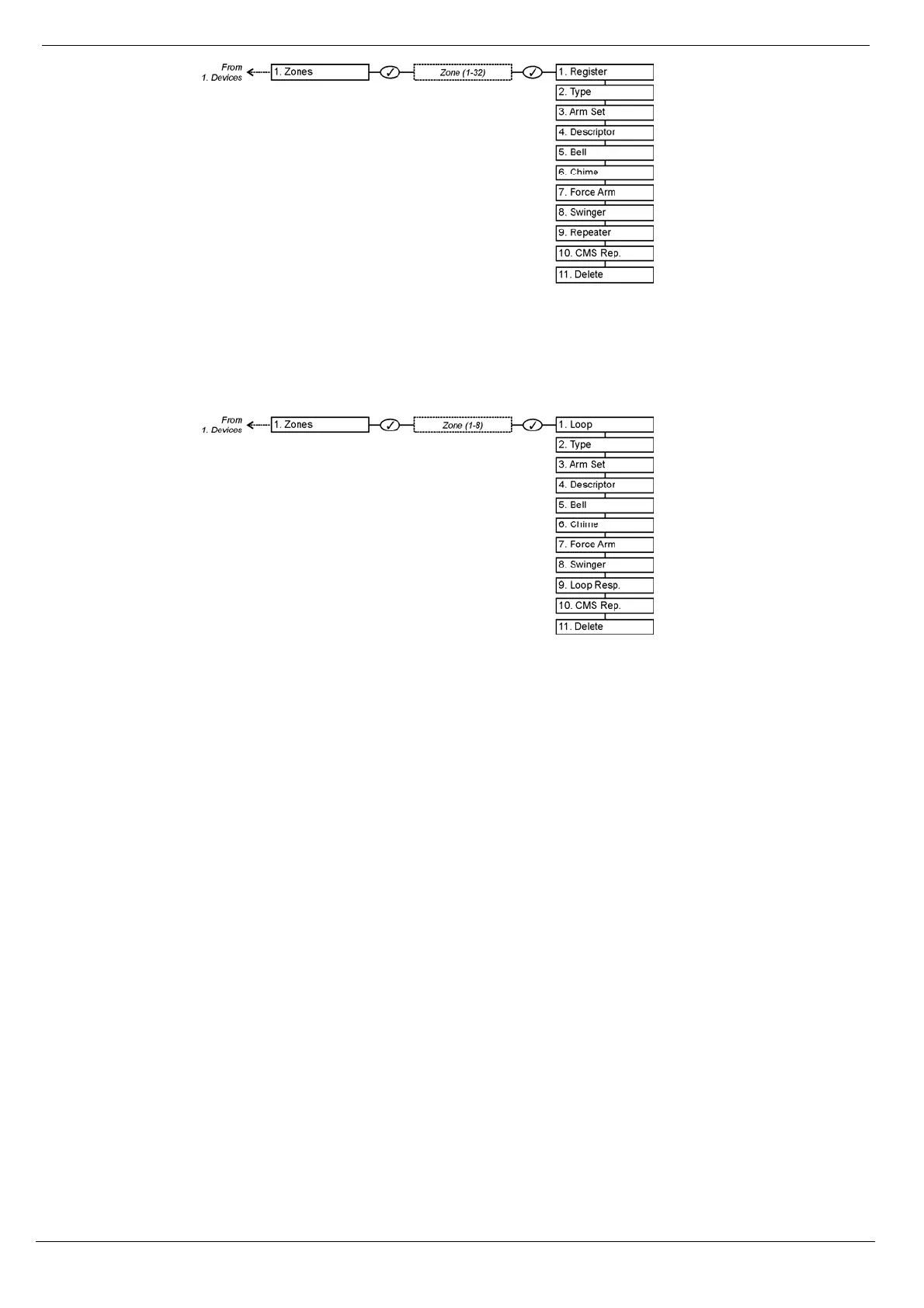

Figure 7-1: Wireless Zone Menu
Wired Zones
Loop Type (see p. 47, 7.3.10, Loop Type (hardwire zones 1 to 8))
Loop Response (see p. 48, 7.3.11, Loop Response (hardwire zones 1 to 8 only))
Figure 7-2: Wired Zone Menu
7.3.1. Zone Type
The zone type defines the type of alarm the system generates when the sensor is tripped.
To program a zone type:
1. From the Programming menu, select Devices, Zones [911].
2. Select the sensor you want to program.
3. From the sensor’s sub-menu, select Zone Type [#02].
4. Select one of the following zone types:
• Normal
• Entry/Exit
• Follower
• Panic
• Medical
• Fire
• 24H
• 24Hr-X (future option)
• Gas
• Flood
• Environmental
• No Motion
• Not Used
For a detailed explanation on the function of each zone type, see p. 133, Appendix F: Zone Types.
7.3.2. Arm Set
The Arm Set option allows you to define the arming methods in which the zone is included.
In unpartitioned systems, each zone can be assigned to Full Arming and/or to Part and/or Perimeter Arming in any
combination.
In partitioned systems, there are two types of zone arm set:
Regular zones: zones assigned to full arming and/or to only one of the two partitions (Full Only or Full
+ P1 or Full +P2).
