24
Winding the Bobbin

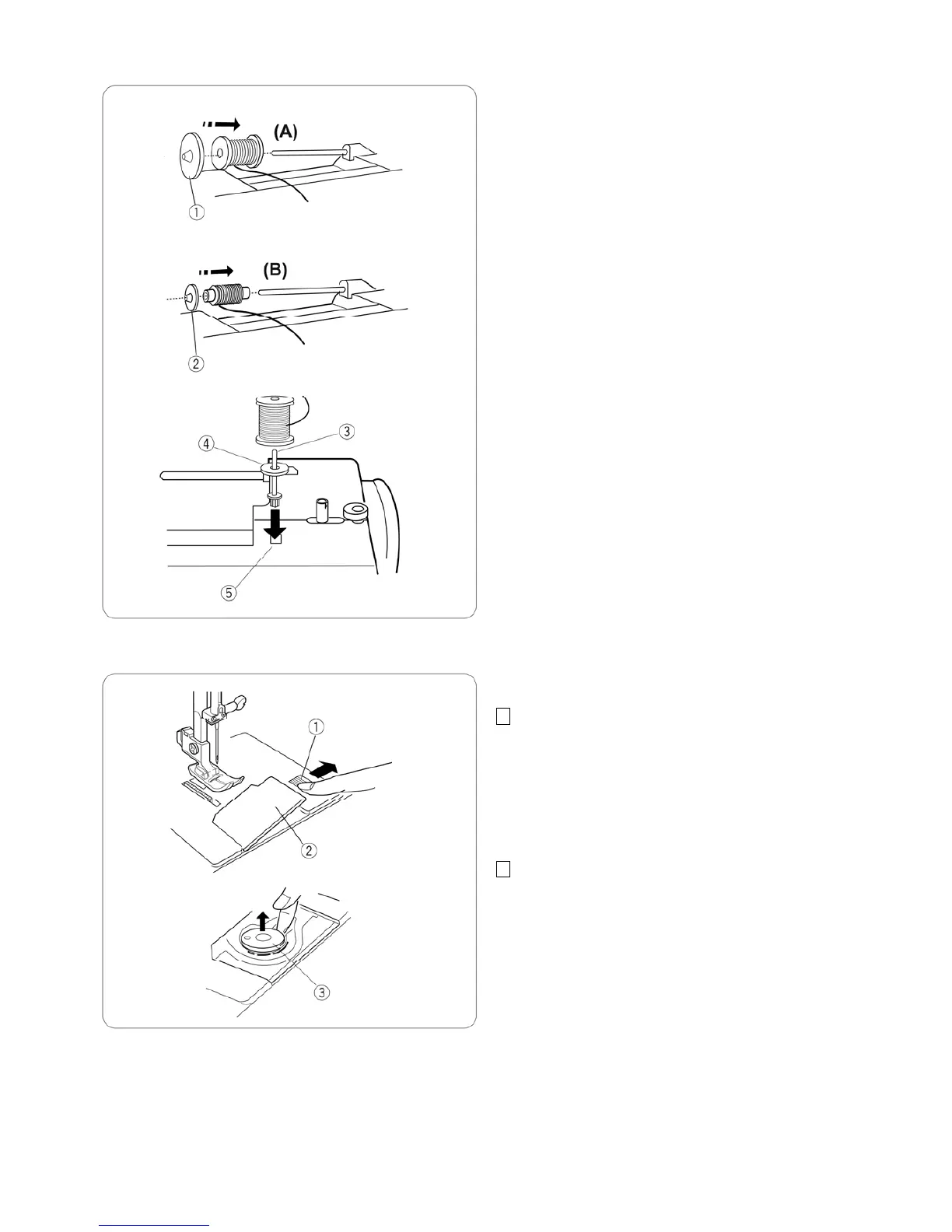

Setting the spool
Place a spool of thread on the spool pin with the thread
coming off the spool as illustrated.
: Press the large spool holder firmly against the spool
of thread.
1 Large spool holder
B: For a small spool, use the small spool holder.
2 Small spool holder
dditional spool pin
The additional spool pin is for bobbin winding without
unthreading the machine.
Insert the additional spool pin into the hole.
Place the felt cushion and a spool on the pin.
3
Additional
spool
pin
4 Felt cushion
5 Spool pin hole
Removing the bobbin
1 Push the hook cover plate release button to
the right and remove the cover plate.
1 Hook cover plate release button
2 Hook cover plate
2 Lift out the bobbin.
3 Bobbin
