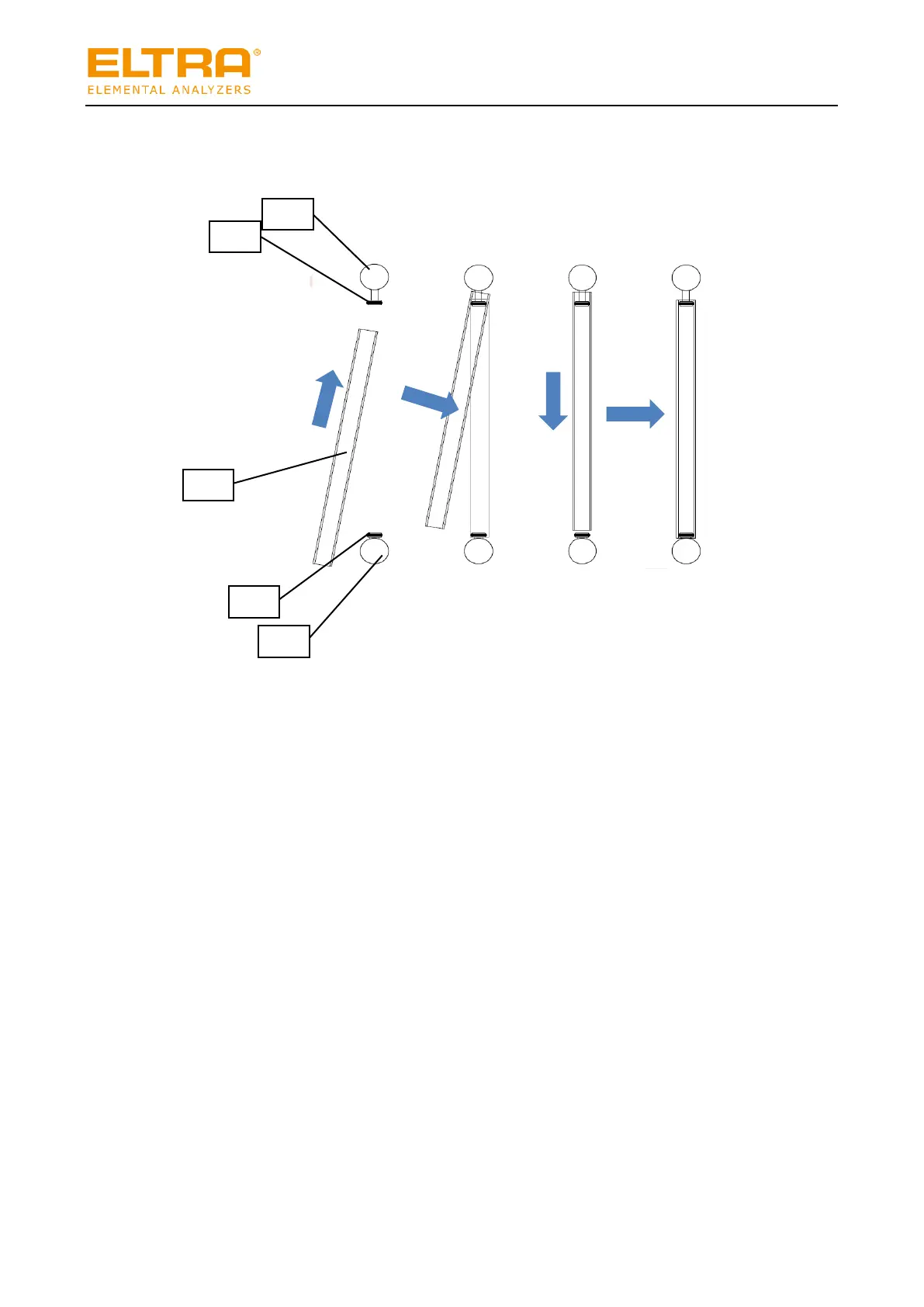

The following figure shows an example of how to insert a reagent tube on the front side of the
analyser:
Fig. 6: Inserting a reagent tube on the front side of the analyser
6. Hold the filled reagent tube (3) at a slight angle.
7. Guide the filled reagent tube over the upper O-ring (2) onto the upper holder (1).
8. Align the filled reagent tube vertically over the lower O-ring (4)
9. Press the reagent tube down slightly until the reagent tube is seated on the holder below
(5).Turn the reagent tube slightly, if it sits too tight
10. Please verify whether the O-rings form an even impression of approx. 2mm all around on the
reagent tube and that there is no leakage through the glass wool on the O-ring.
11. Confirm the message from the ELEMENTS software so that the pressure can be built
up again.
The reagent tube on the front of the analyser has been inserted.
2
3
4
1
5
