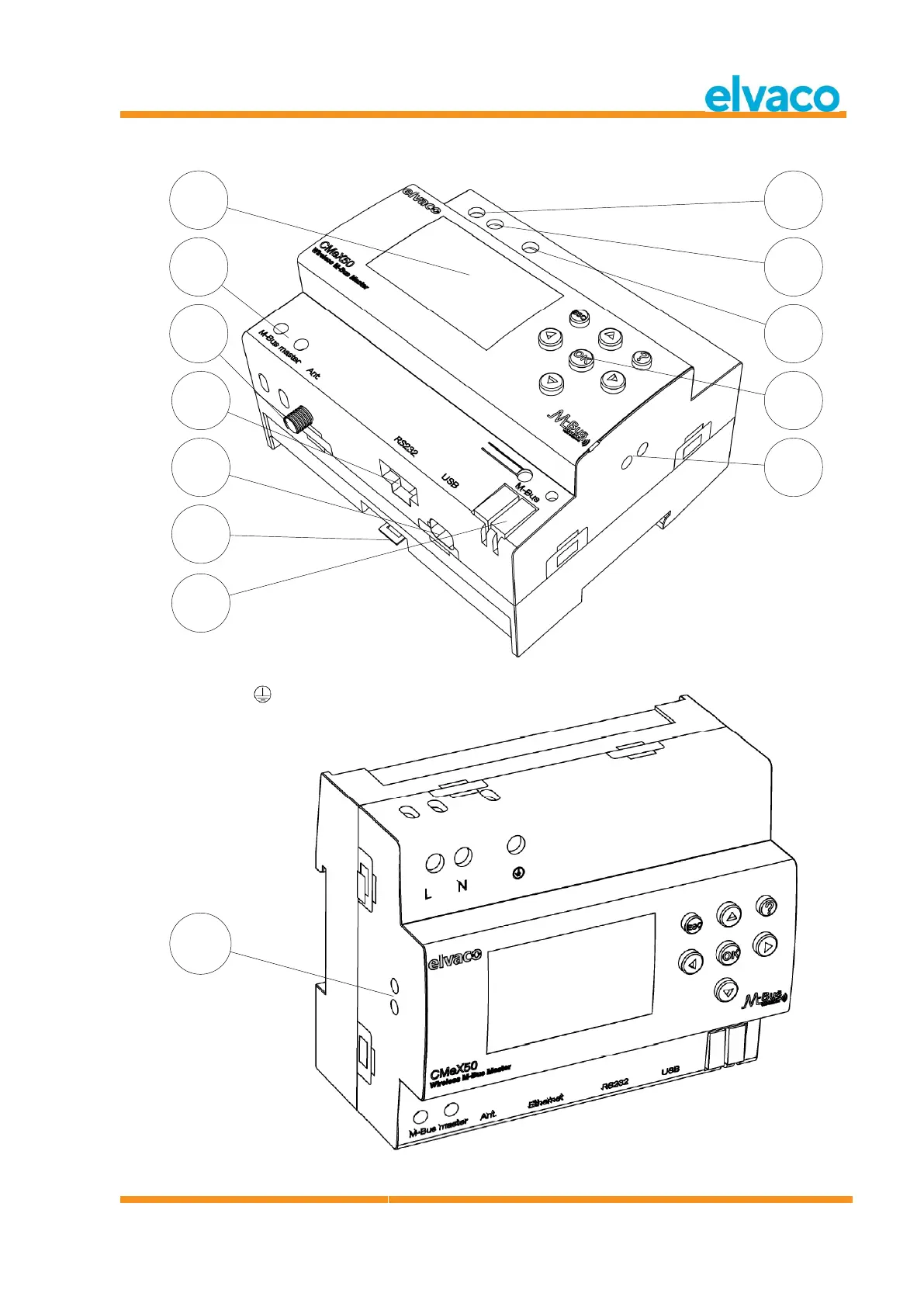

4.1 Overview
16
7
8
2
3
4
510
11
12
9
13
1. Power supply L
2. Power supply N
3. Protective earthing
4. Keypad
5. IR interface right
6. LCD display
7. M-Bus master
8. Antenna connector
9. RS232 connector
10. USB connector
11. DIN-rail lock
12. M-Bus slave
13. IR interface left
