1 System Overview

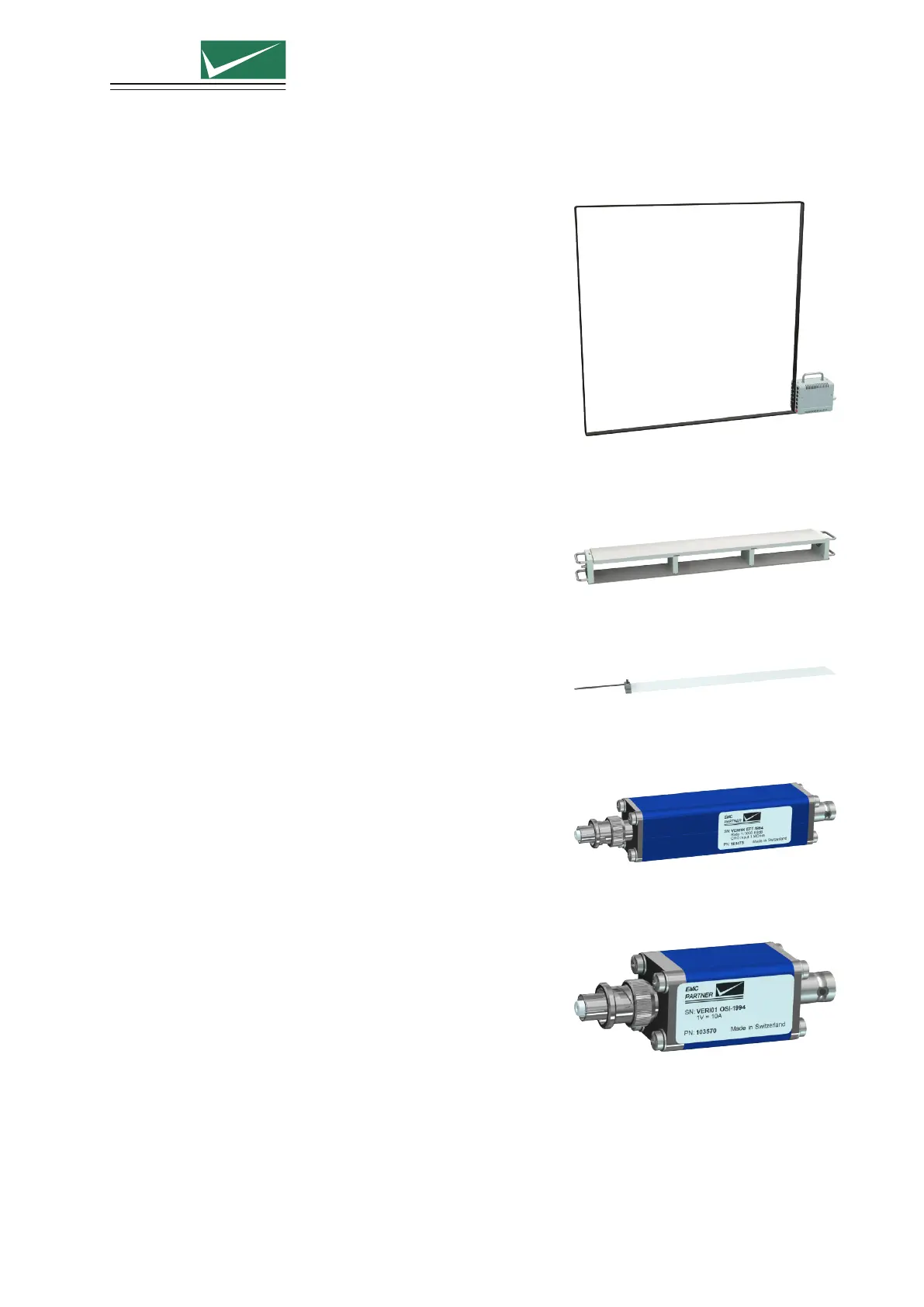

1.6 MF1000-1 (PN 103480) and MF1000-2 (PN 103481)
Test coil for Slow DOW magnetic field test according
IEC 61000-4-10. The MF1000-2 has more than twice the
height of MF1000-1 for larger EUTs.
1.7 CN-EFT1000 (PN 103468)
The clamp provides the ability of coupling the damped os-
cillatory waves to the circuit under test without any galvanic
connection to the terminals of the EUT’s ports, shielding of
the cables or any other part of the EUT.
1.8 VERI-CP-EFT (PN 104668)
Transducer plate for CN-EFT1000 capacitive coupling clamp
calibration. The plate has a SHV-BNC connector and a
15 cm strap to bond to the reference ground.
1.9 VERI1K EFT (PN 103473)
1 kOhm termination with SHV-BNC connector for the Fast
DOW voltage calibration.
1.10 VERI01 OSI (PN 103570)
0.1 Ohm shunt with SHV-BNC connector for the Fast DOW
current calibration.
Page 10/55
