4 Perform a Test
4.9.4 Slow DOW Magnetic Field
1
2
3
4
1 Generator

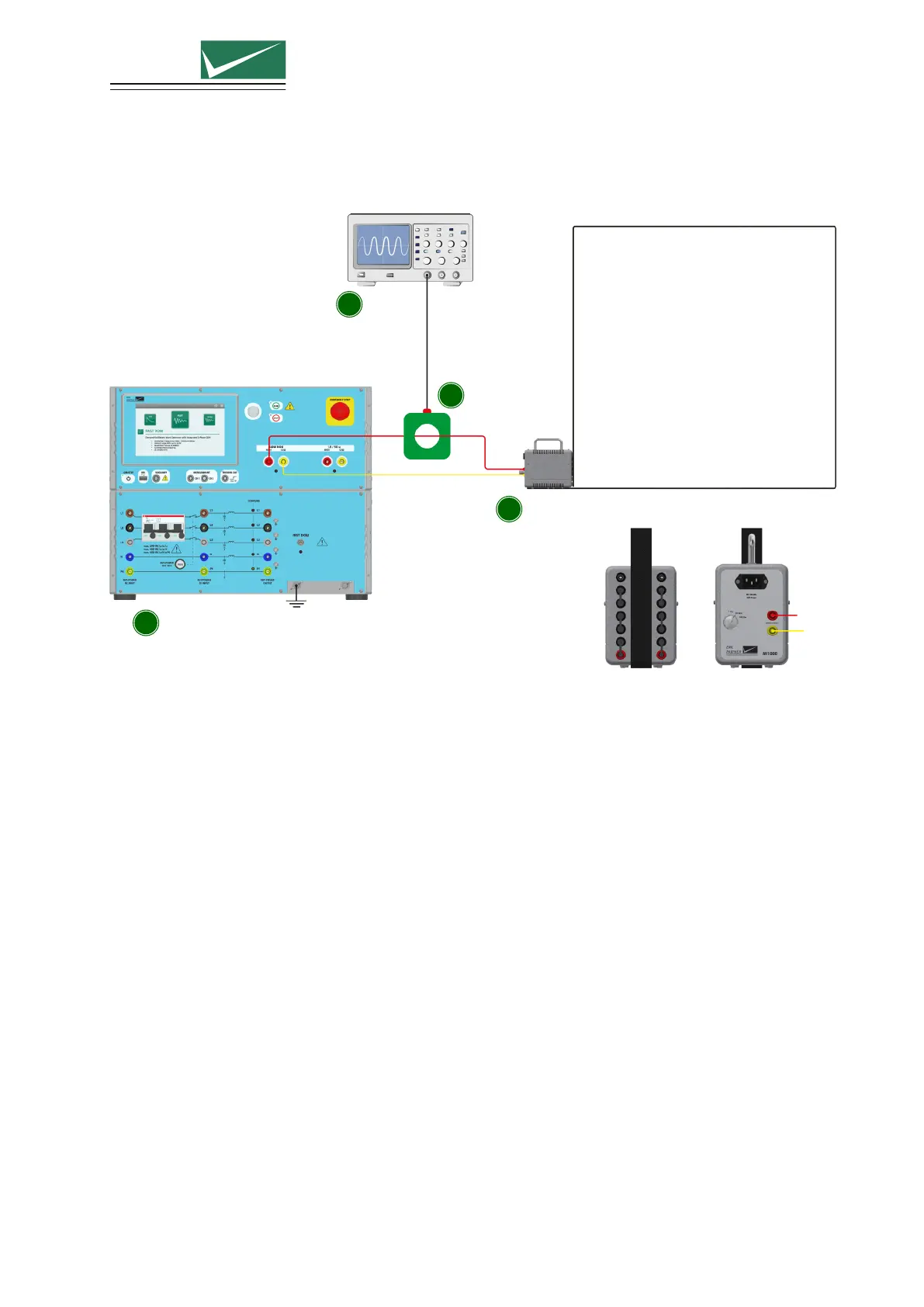

Select the Slow DOW test and the correct antenna as coupling device. The picture shows the
setup with MF1000-1, the setup for MF1000-2 is similar.
2 Antenna
Connect the MF1000-1 or MF1000-2 with the Slow DOW direct output on the generator using a
2 m twisted MC-cable.
3 Current Probe
The calibration of the magnetic field is made with an indirect current measurement in the con-
necting cable.
4 Oscilloscope
The oscilloscope must have a minimum bandwith of 40 MHz.
