4 Perform a Test
4.9.3 Fast DOW with CN-EFT1000
1
2
3
4
5

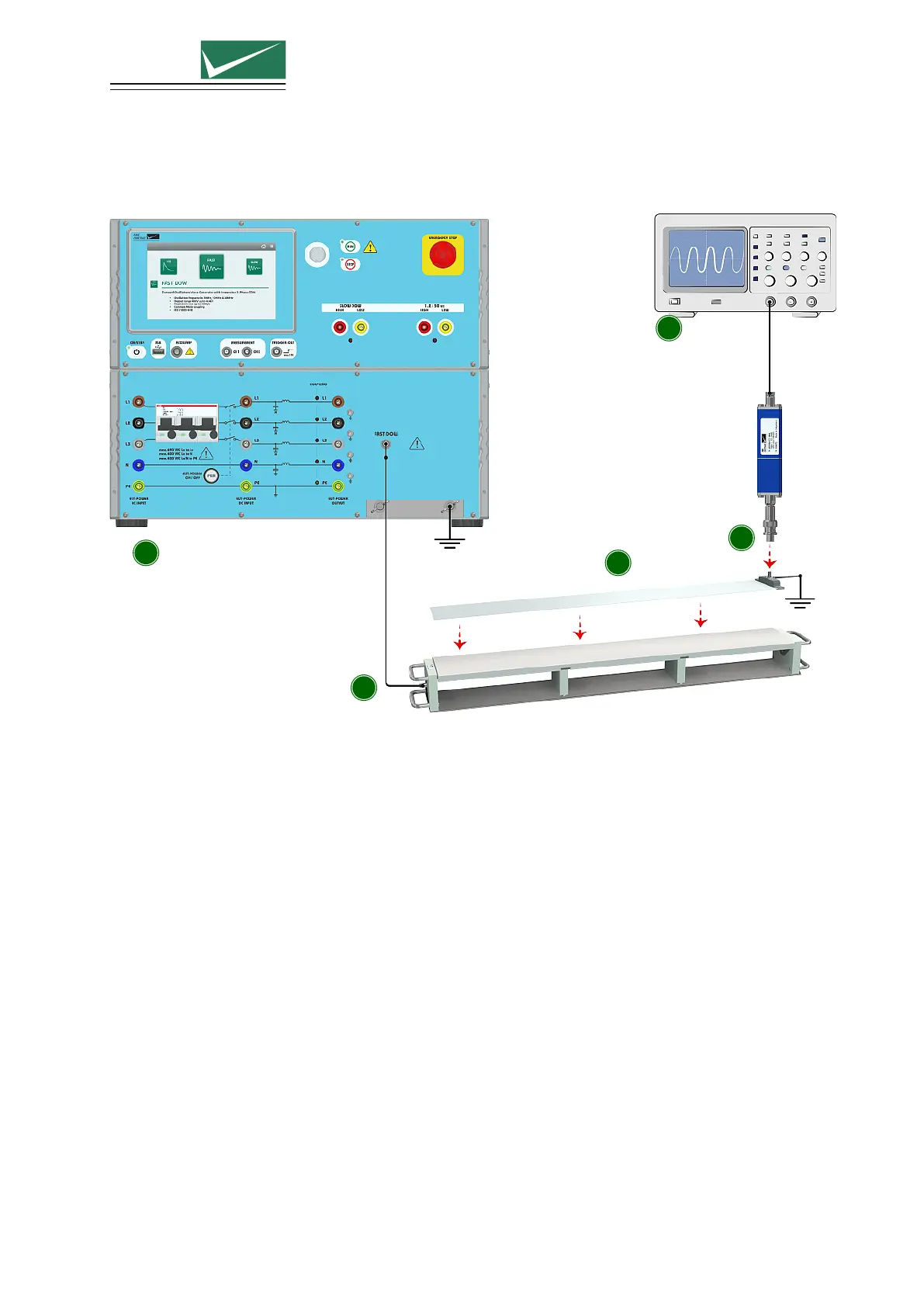

1 Generator
Select the Fast DOW test and the CN-EFT1000 as coupling device.
2 CN-EFT1000
Connect the CN-EFT1000 with the Fast DOW direct output on the generator using a 2 m HV-BNC
cable. All equipment including generator and osciloscope must be placed on a ground reference
plane. The generator earth bar on the frontpanel must be connected with the ground reference
plane.
3 VERI-CP-EFT
Place the VERI-CP-EFT in the CN-EFT1000. Connect the earth strap with the ground reference
plane.
4 VERI50EFT
Connect the VERI50 EFT with the VERI-CP-EFT.
5 Oscilloscope
The oscilloscope must have a minimum bandwidth of 400 MHz.
