3 Using the Generator

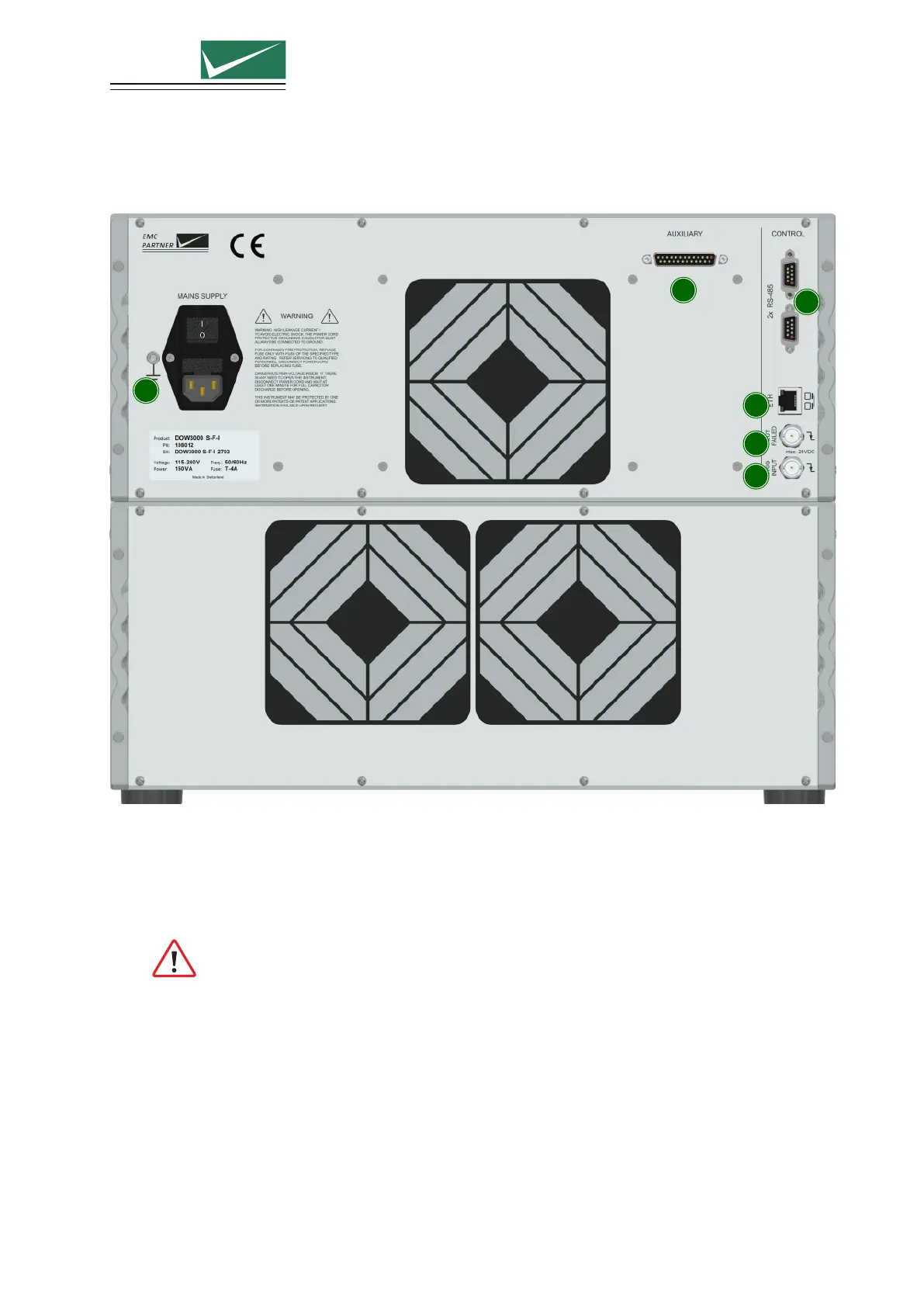

3.2 Rear Panel
1
2
3
4
5
6
1 AC Socket / Mains Fuse
A country specific mains cable is delivered with the equipment, this should be used to connect to
the mains power supply. A mains fuse is located in the socket housing. The value is indicated on
the equipment type plate.
Take care to ensure the power mains matches the power ratings on the equipment type
plate.
The generator must always be connected to protective earth
2 Auxiliary Connector
Fit the auxiliary connector delivered with the equipment, to close the safety circuit.
It is possible to extend the safety circuit or to connect additional external warning lamps.
