34 EMC VNX5500 File Installation Guide
2. Connect SP A port 5 to blade 2 port 0 as shown in Figure 21.
3. Connect SP A port 4 to blade 3 port 0 , if applicable.
4. Connect SP A port 3 to blade 4 port 0 , if applicable.

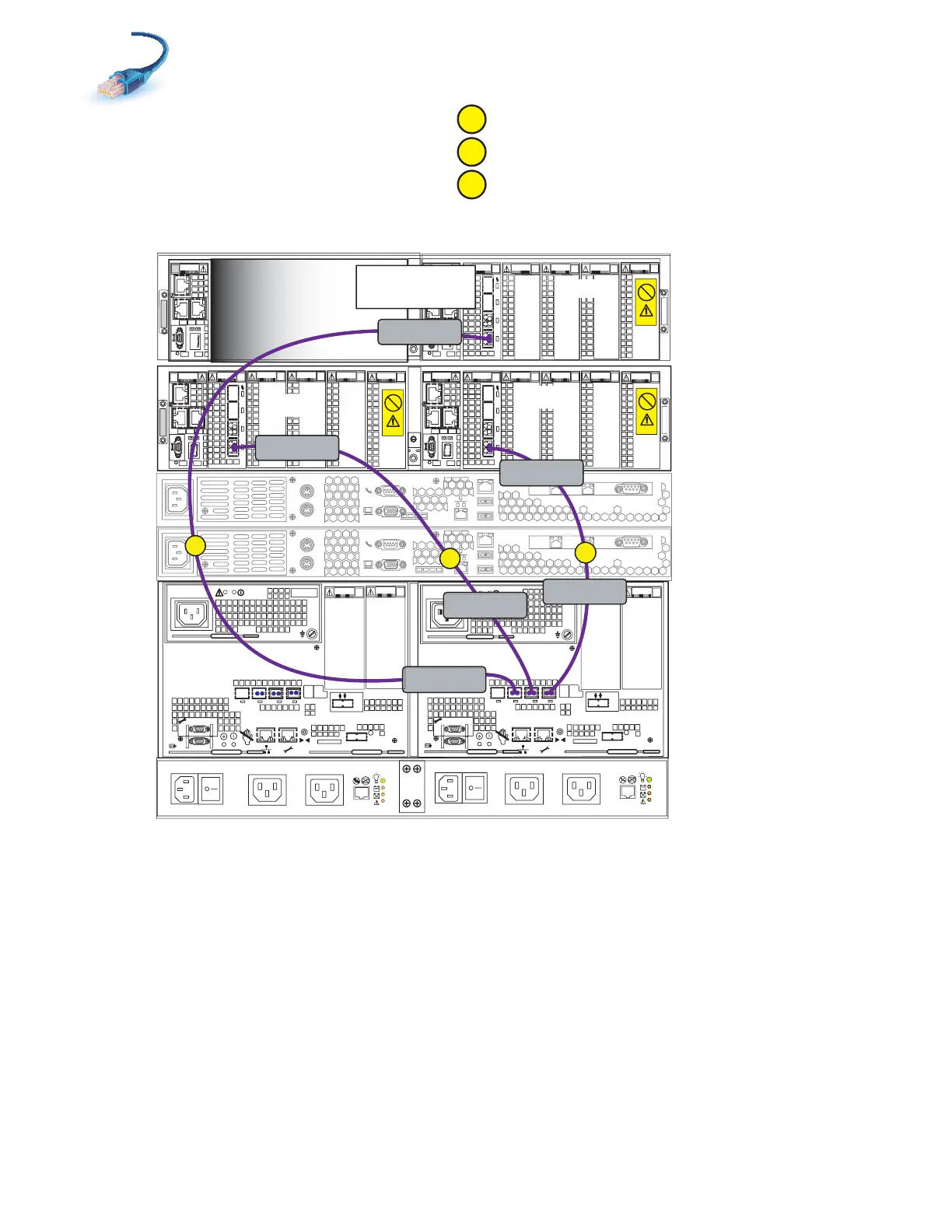

Figure 21 Cable SP A to blades
