100-412-182 REV. 06 3
1.1.2 Symbols Found on the Product
Familiar graphic warning symbols are used to alert the user to items of concern or hazard.
The following warning symbols appear on the 2000X Micro Actuator and on the 2000X
Micro Actuator Interface Box:

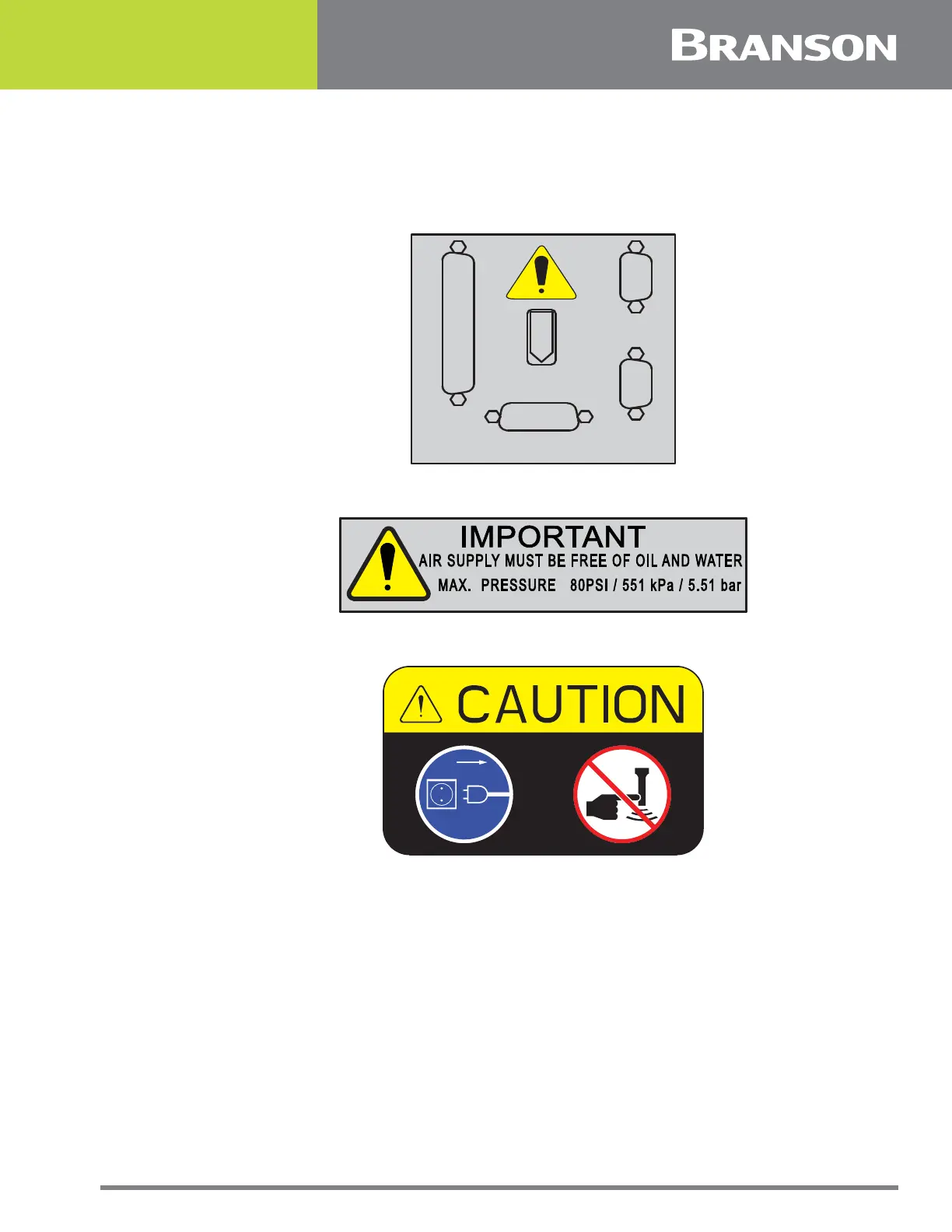

Figure 1.1 Connector label located on the back of the 2000X Micro Actuator Interface Box
Figure 1.2 Caution label found on the front of the 2000X Micro Actuator
Figure 1.3 Caution label found on the front of the 2000X Micro Actuator
