5.5.5 Interconnect between Power Supply, Actuator and Interface Box
The 2000X Micro Actuator and Interface Box have two electrical connections to the Power
Supply: The RF Cable and the Actuator Interface cable. A 37-pin Actuator Interface cable
is used for Power and Control Signaling between the Power Supply and the Interface Box.
The cable connects to the rear of the Power Supply and the rear of the Interface Box. The
RF cable is used to deliver RF power to the Actuator. It connects from the rear of the
Power Supply to the top of the Actuator.
There are two connections between the interface box and the Actuator: the control cable
and the encoder cable. The control cable connects from the top of the Interface Box to the
top of the Actuator. The Encoder cable connects from the rear of the Interface Box to the
top of the Actuator.
For ground detect use, to have ultrasonic energy turn off when horn comes in contact with
your electrically isolated fixture or anvil, it is necessary to install Branson cable EDP No.
100-246-630 from the MPS/GDS receptacle on the rear of the Interface Box to your
isolated fixture/anvil in order to utilize this feature.
There can be other connections to the Actuator and Interface Box, and other connections
to the Power Supply, but these are the only standard connections, depicted in
Figure 5.9.

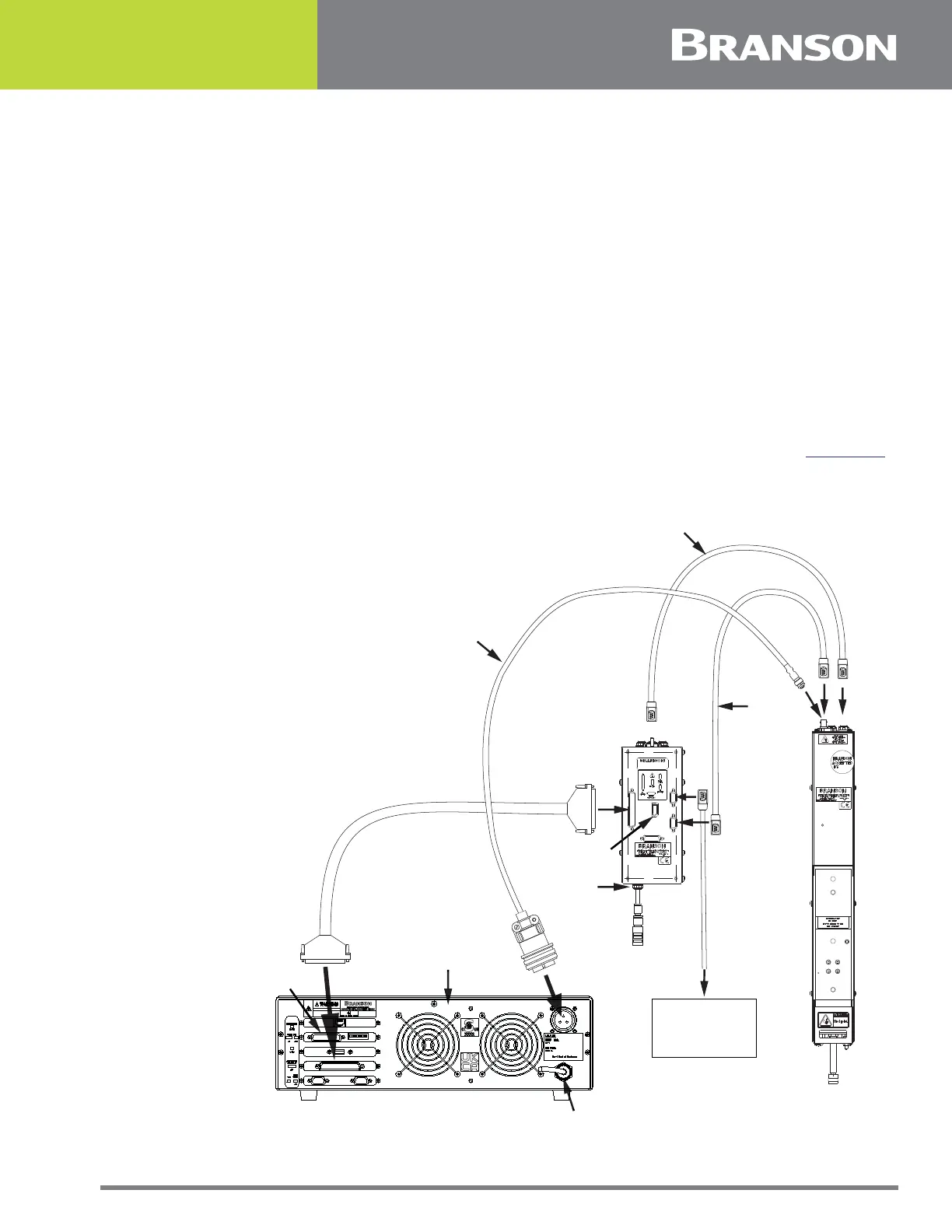

Figure 5.9 Electrical Connections from Power Supply to a 2000X Micro Actuator and Interface Box
Control
Cable
MPS/GDS
J931s
RF Cable
larm I/O,
Optional
Power Supply
rear view
Micro
Actuator
Air Inlet
Interface
Box
Line Cord
Encoder
Cable
Start Switches
E-Stop Button
