Emerson Branson 2000X User Manual

62 100-412-182 REV. 06

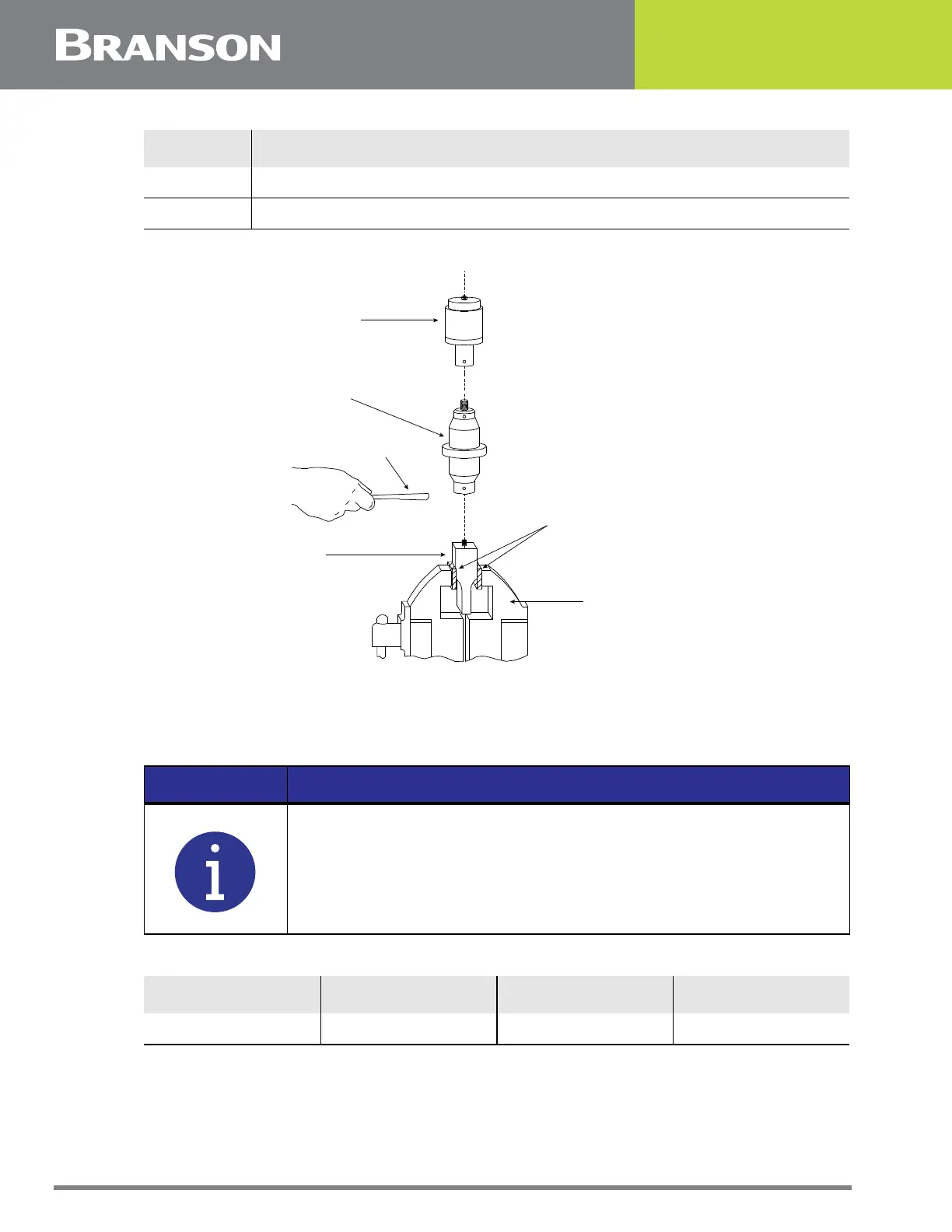

Figure 5.12 Assembling the 40 kHz Acoustic Stack
Stack Assembly Torque Table
8 Screw the booster onto the horn.
9 Repeat step 7.
NOTICE
The use of a Branson toque wrench or the equivalent is
recommended. P/N 101-063-618 for 40 kHz systems.
Table 5.9 Stud Torque Values
Used On Stud Size Torque EDP #
40 kHz M8 x 1.25 70 in·lbs, 7.90 N·m 100-098-790
Table 5.8 Assembling the 40 kHz Acoustic Stack
Step Action
Converter
Booster
Spanner (provided)
Horn
Vise
Vise Jaw Protectors
(aluminum or soft metal)
