100-412-182 REV. 06 73

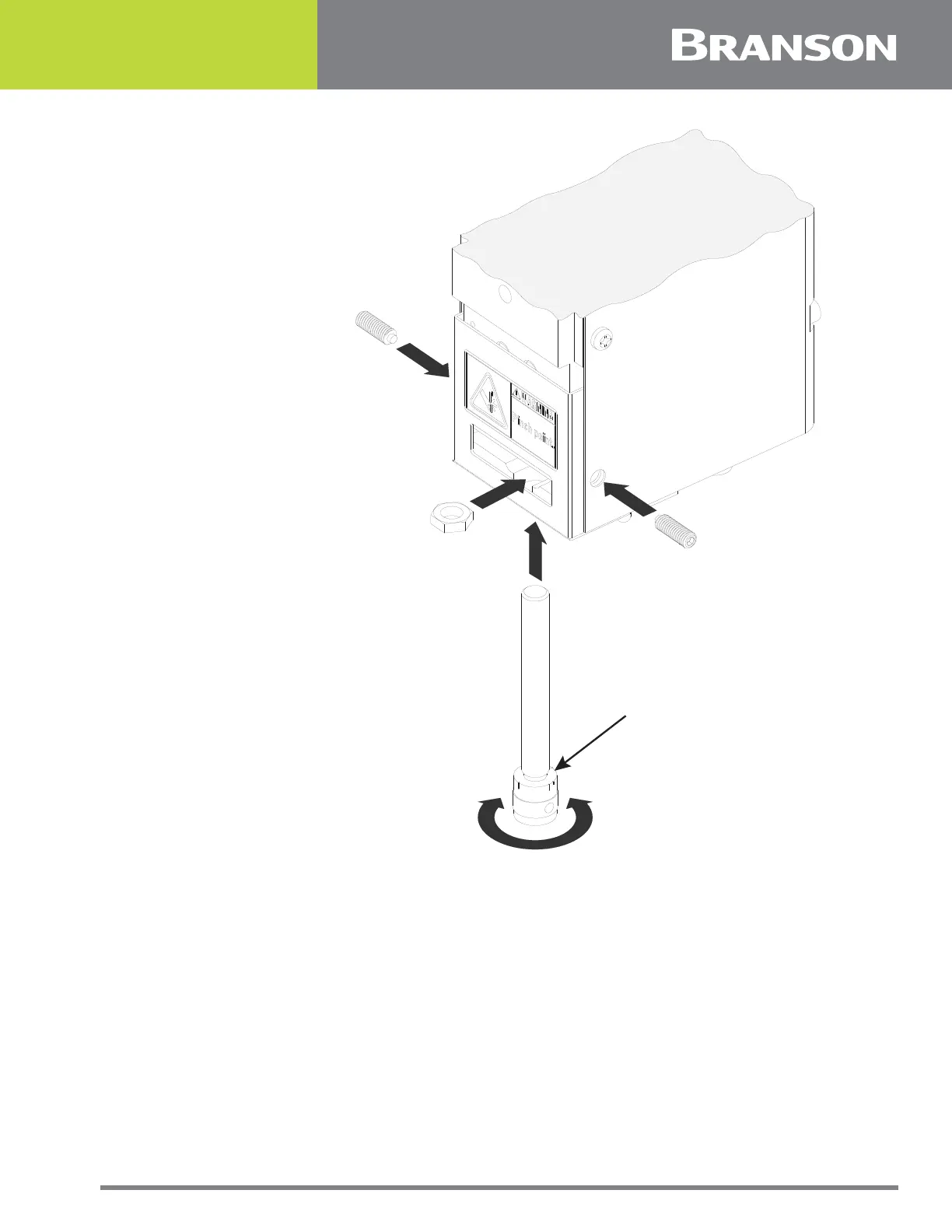

Figure 6.1 Mechanical Stop Installation and Adjustment
6.2.7 Emergency Stop
The Emergency Stop is a user control that will prevent the Actuator from running, and will
also immediately terminate a weld cycle and cause the Horn to retract. It does not remove
power from the system. The controls can be configured to provide a beep sound when the
emergency stop is engaged. The front panel display of the power supply will indicate that
the system is in emergency stop mode when it is.
DECREASE
STROKE
LENGTH
INCREASE
STROKE
LENGTH
MECHANICAL STOP
LOCKING NUT
(DO NOT LOOSEN)
MECHANICAL STOP
ADJUSTING KNOB
SET SCREW
SET SCREW
