Emerson Branson 2000X User Manual

48 100-412-182 REV. 06

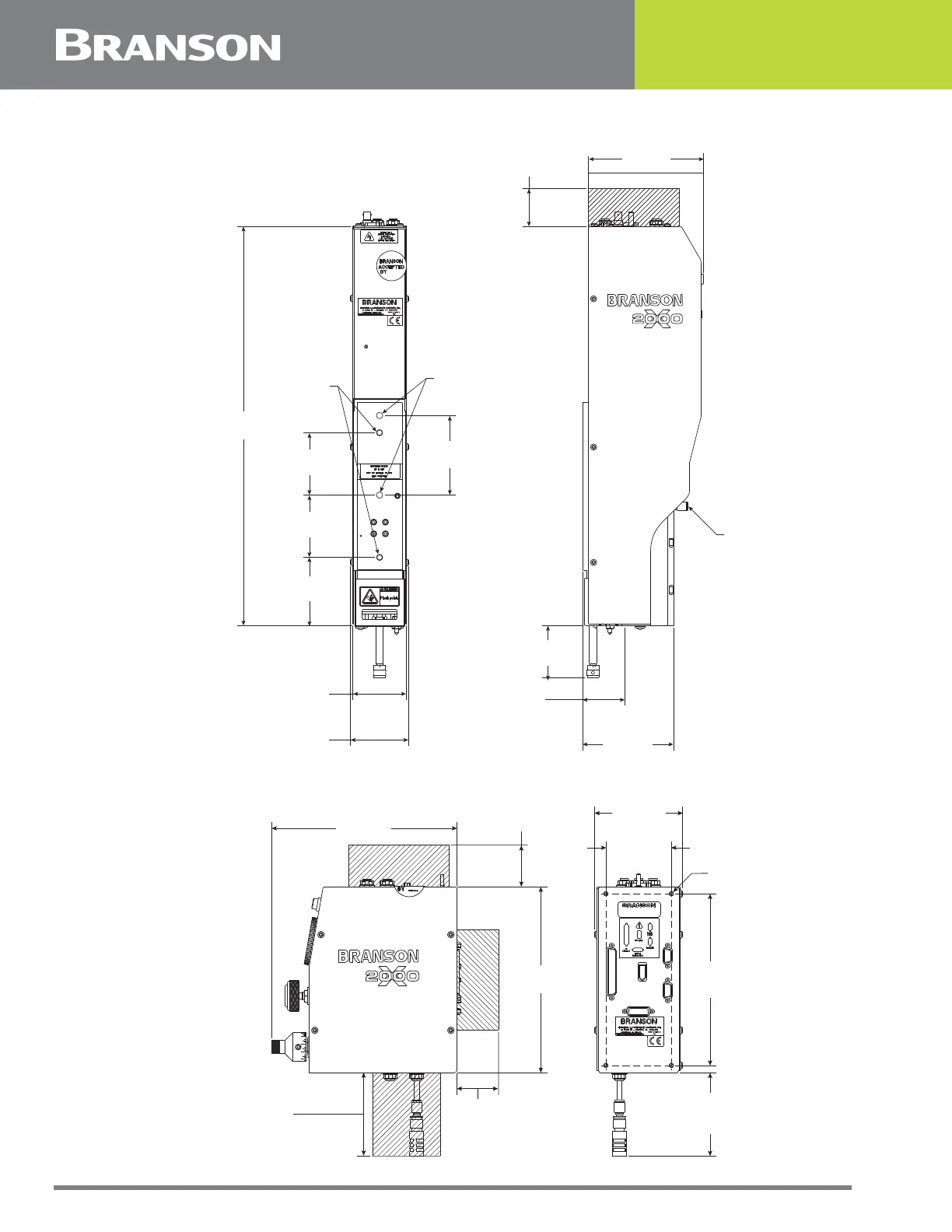

Figure 5.3 2000X Micro Actuator and Interface Box Dimensional Drawing
20.10 in
510.5 mm
3.135 in
79.63 mm
3.44 in
87.37 mm
2.7 in
68.58 mm
2.94 in
74.68 mm
5.81 in
147.57 mm
Cooling air
5 in
127 mm
3.447 in
87.55 mm
to center line
of horn
4.60 in
116.84 mm
2.63 in max
66.80 mm max
Space allocation for
connectors & cable bends
3.135 in
79.63 mm
4 in
101.6 mm
5/16 in dowel pin
1/2 in deep max
(2 places)
M8 X 1.5 THDS
20 mm deep
(2 places)
8.81 in
223.77 mm
8.76 in
222.5 mm
5 in
127 mm
Space allocation for
connectors & cable bends
4 in
102 mm
TYP
5 in
127 mm
Space allocation for
connectors & cable bends
3.1 in
78.74 mm
8.13 in
206.5 mm
M4 mounting
screws
(4 places)
4.18 in
106.17 mm
5 in
127 mm
Space allocation for
connectors & cable bends
