Reference Manual
00809-0100-4731, Rev FA
April 2003
APEX
™
and APEX Sentry
™
Radar Gauge
2-10
Inlet Pipes or Flows
The level reading may be affected by the process flowing into the vessel. To
lessen the effects, mount the radar gauge so the beam signal does not
contact the inlet pipe or flow (Figure 2-2).
Center of tank installations should be avoided, off-center installations are
preferred (Figure 2-4).

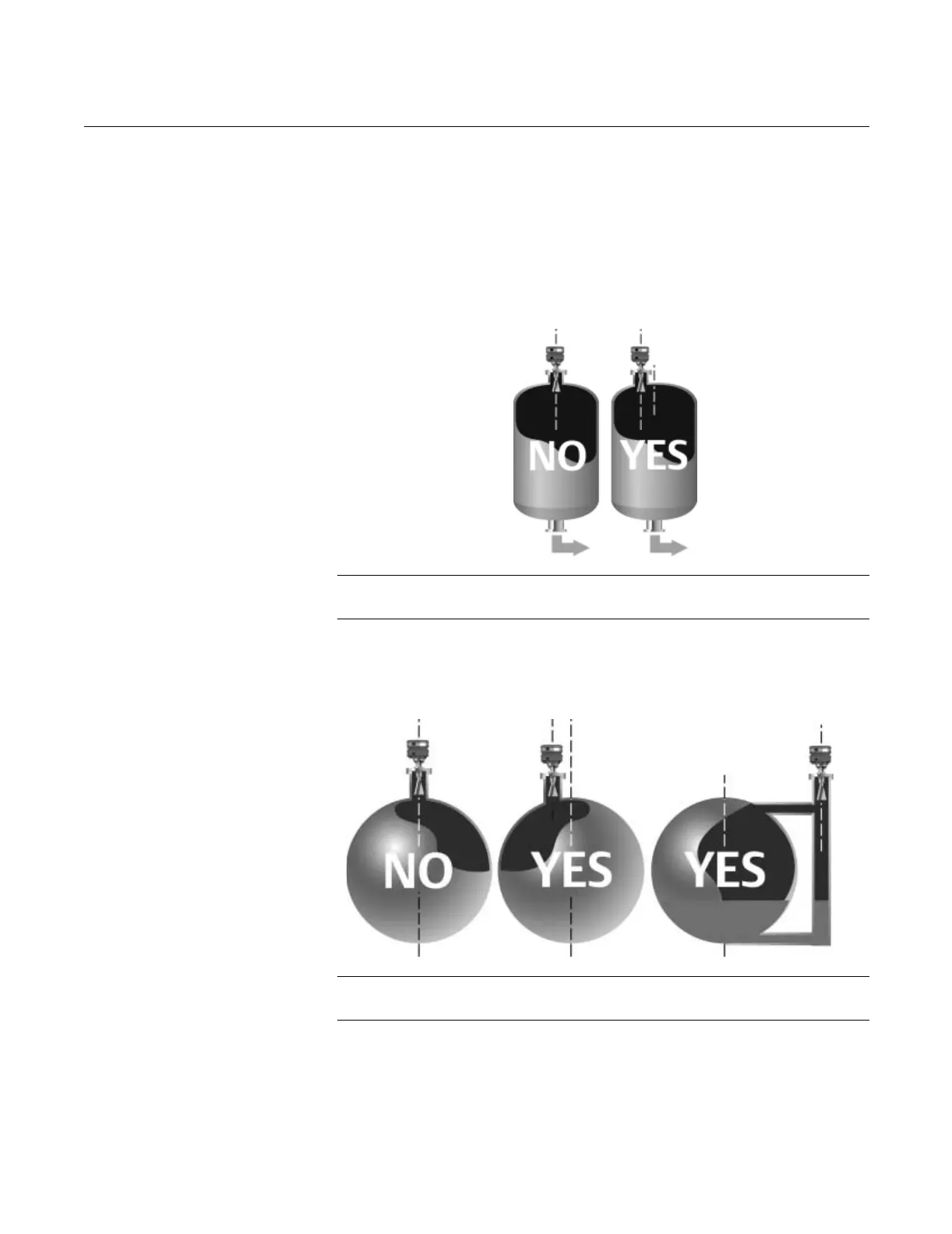

Figure 2-4. Example of off
center tank installation.
NOTE
Center of the tank installations should be avoided.
Specific Tank Shapes Spherical Vessel Considerations
Figure 2-5. Spherical vessel
installation
NOTE
Spheres should never have top-center installation options.
EXNEW/COLUMNALIGHN.TIF
SPHEREALIGN_AB.TIF
