Horizontal Vessel Mounting Surface
Horizontal cylinders often only have top-center connection options. If this is
the case, then the end of the antenna should be down into the vessel or
mounted in a widened area such as a manhole cover. Recessing the antenna
into a nozzle is not recommended (Figure 2-6).

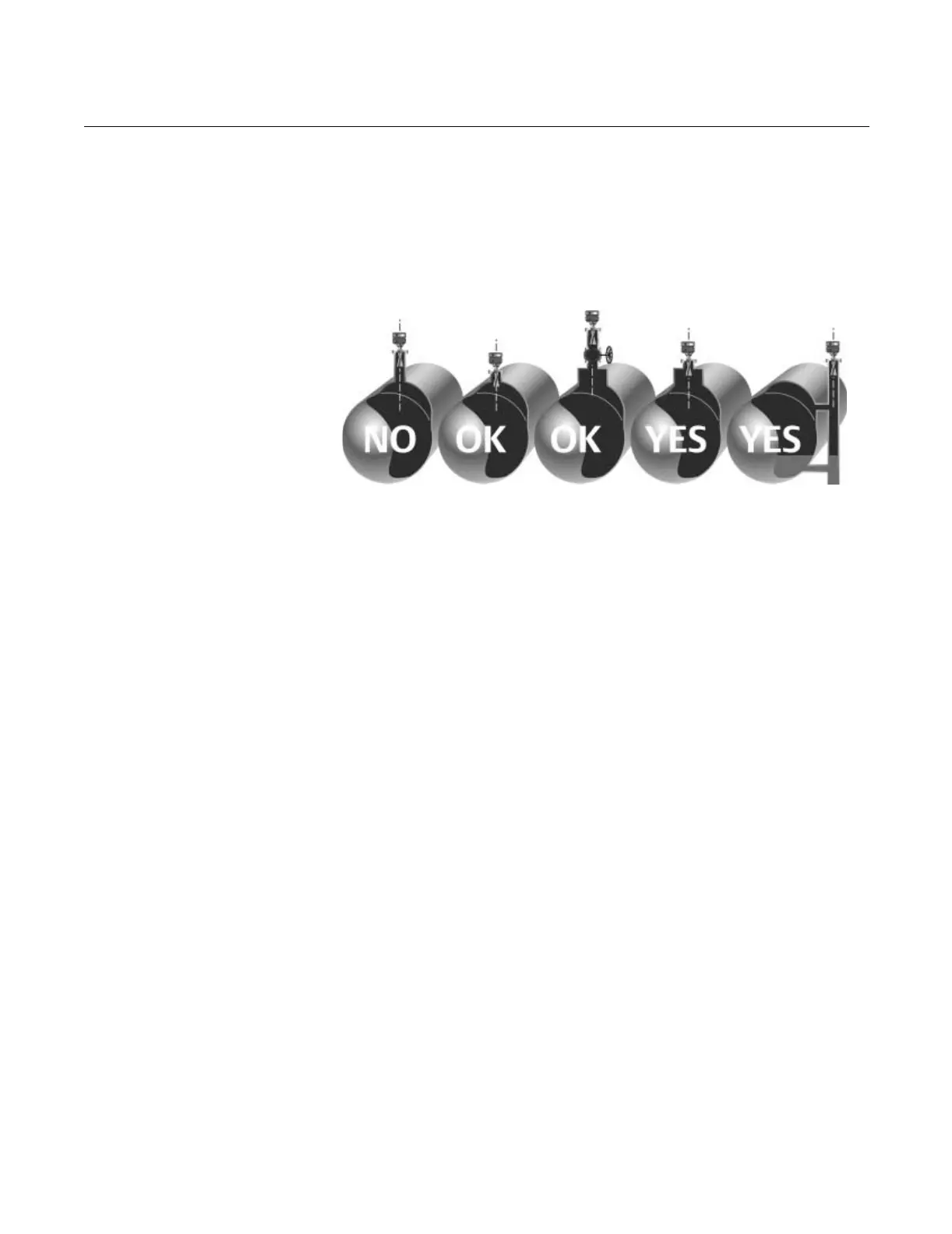

Figure 2-6. Possible horizontal
vessel mounting options
APEXNEW_CYLINDERS.TIF
