3-34
Setup - Advanced
The Advanced tab lets you specify which quick pick option and required
parameters to configure.

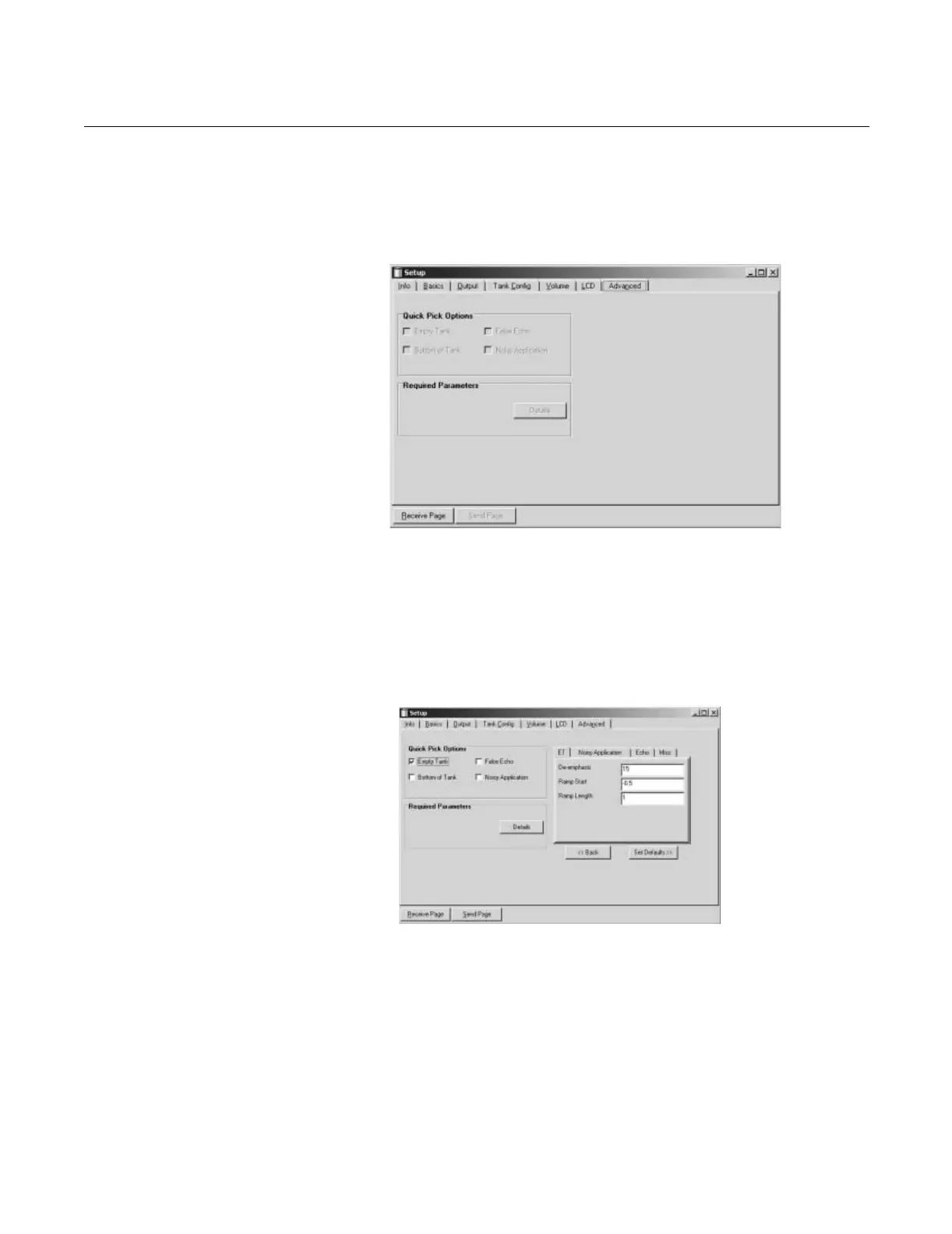

Figure 3-29. Setup Tank
Advanced Tab
• Empty Tank - turns on when level is below the empty tank setting.
The Empty Tank option controls gauge function when target is lost after
level drops below the empty tank setting. This is typically used in
non-flat bottom vessels. It prevents the gauge from going into full
search mode when a vessel is empty. The gauge will focus its search in
the area below the Empty Tank setting and wait for vessel filling to
begin.
Figure 3-30. Quick Pick Option -
Empty Tank
APEX/RCT/APEX_14AA.TIF
APEX/RCT/APEX_23AA.TIF
