Emerson Rosemount Apex User Manual

Reference Manual
00809-0100-4731, Rev FA
April 2003
A-9
APEX
™
and APEX Sentry
™
Radar Gauge
DIMENSIONAL
DRAWINGS

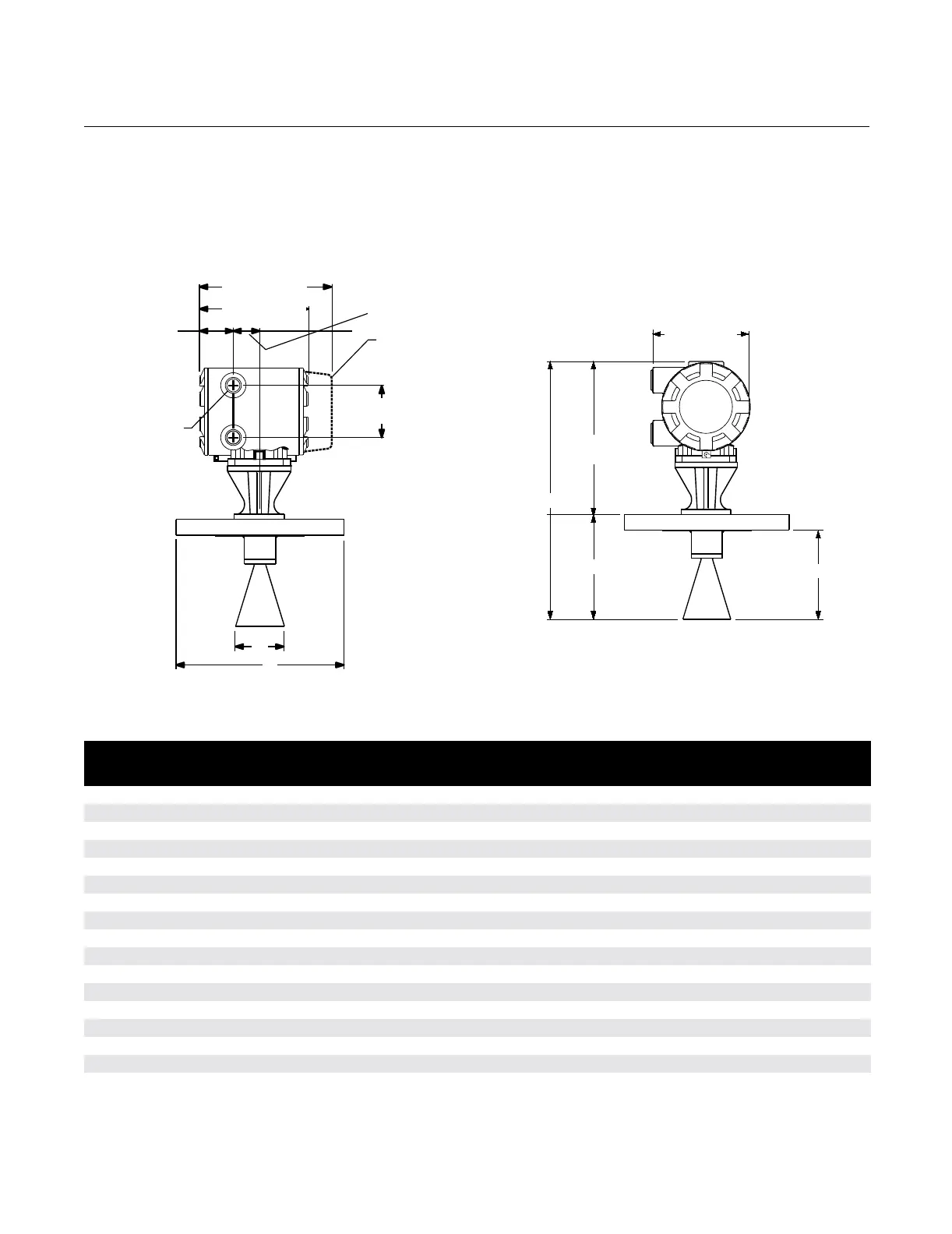

Figure A-1. APEX Dimensional
Drawings
2.06
(52.3)
3.00
(76.2)
8.40
(213)
A
3
/4–14 NPT
Conduit
Connections(2)
B
D
5.50 (139.7)
7.50 (190.5)
6.50 (165.1)
E
C
M1 or M2 Integral
Display (Optional)
Dimensions are in inches (millimeters)
Level 1501A01A, 1501B01A
1.55 (39.4)
TABLE 3. Dimensions. (Table 1 of 3)
Flange Size Antenna Size
Dimensions are in inches (millimeters)
A B C D E
2-inch ASME B.16 (ANSI) Class 150 2-inch 13.75 (349) 5.35 (136) 6.00 (152) 4.66 (118) 1.75 (44)
2-inch ASME B.16 (ANSI) Class 300 2-inch 13.75 (349) 5.35 (136) 6.50 (165) 4.53 (115) 1.75 (44)
3-inch ASME B.16 (ANSI) Class 150 2-inch 13.75 (349) 5.35 (136) 7.50 (191) 4.47 (114) 1.75 (44)
3-inch ASME B.16 (ANSI) Class 300 2-inch 13.75 (349) 5.35 (136) 8.25 (210) 4.29 (109) 1.75 (44)
3-inch ASME B.16 (ANSI) Class 150 3-inch (original)* 14.35 (364) 5.96 (151) 7.50 (191) 5.08 (129) 2.71 (69)
3-inch ASME B.16 (ANSI) Class 300 3-inch (original)* 14.35 (364) 5.96 (151) 8.25 (210) 4.90 (124) 2.71 (69)
3-inch ASME B.16 (ANSI) Class 150 3-inch (new)* 16.38 (416) 7.98 (203) 7.50 (191) 7.10 (180) 2.69 (68)
3-inch ASME B.16 (ANSI) Class 300 3-inch (new)* 16.38 (416) 7.98 (203) 8.25 (210) 6.92 (176) 2.69 (68)
4-inch ASME B.16 (ANSI) Class 150 2-inch 13.75 (349) 5.35 (136) 9.00 (229) 4.47 (114) 1.75 (44)
4-inch ASME B.16 (ANSI) Class 300 2-inch 13.75 (349) 5.35 (136) 10.00 (254) 4.16 (106) 1.75 (44)
4-inch ASME B.16 (ANSI) Class 150 3-inch (original)* 14.35 (364) 5.96 (151) 9.00 (229) 5.08 (129) 2.71 (69)
4-inch ASME B.16 (ANSI) Class 300 3-inch (original)* 14.35 (364) 5.96 (151) 10.00 (254) 4.77 (121) 2.71 (69)
4-inch ASME B.16 (ANSI) Class 150 3-inch (new)* 16.38 (416) 7.98 (203) 9.00 (229) 7.10 (180) 2.69 (68)
4-inch ASME B.16 (ANSI) Class 300 3-inch (new)* 16.38 (416) 7.98 (203) 10.00 (254) 6.79 (172) 2.69 (68)
4-inch ASME B.16 (ANSI) Class 150 4-inch 18.37 (467) 9.97 (253) 9.00 (229) 9.09 (231) 3.50 (89)
4-inch ASME B.16 (ANSI) Class 300 4-inch 18.37 (467) 9.97 (253) 10.00 (254) 8.78 (223) 3.50 (89)
* Gauges with 3-inch antennas and serial number 3925 or higher have the 3-inch antenna length labelled “new.”
